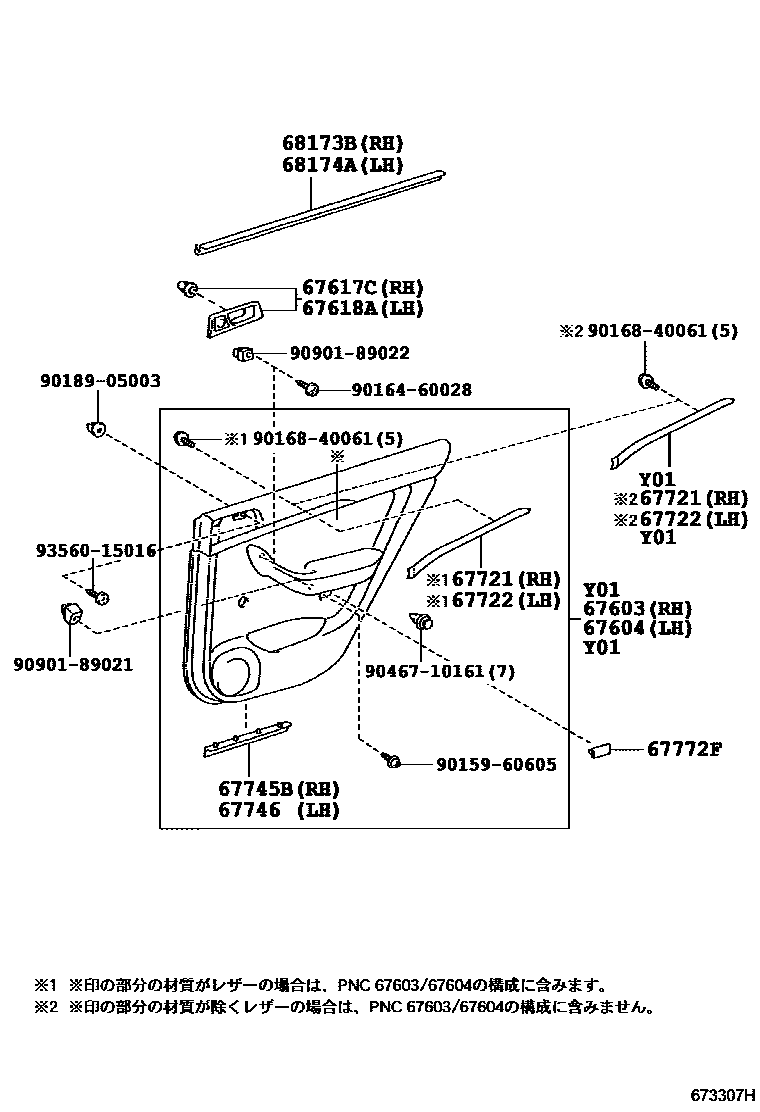

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67010-05160-B0iAZT251..WG200506-200606

DK.GRAY,TRIM1#

main67010-05170-A0iAZT250..LI200307-200402

main67010-05170-A0iAZT251..SED200506-200606

IVORY,TRIM0#

main67010-05170-A0iAZT250..LI200402-200508

main67010-05170-B0iAZT250..LI200402-200508

main67010-05170-B0iAZT250..LI200307-200402

main67010-05170-B0iAZT251..SED200506-200606

DK. GRAY,TRIM1#

main67010-05210-B0iAZT250,255..XI200307-200606

DK. GRAY,TRIM1#

main67010-05260-A0iAZT250..LI200307-200508

IVORY,TRIM0#

main67010-05260-B0iAZT250..LI200307-200508

DK. GRAY,TRIM1#

main67630-05A50-B2iAZT251..WG200606

DK.GRAY,TRIM1#

main67630-05A50-E1iAZT251..WG200606

GREGE,TRIM4#

main67630-05A60-B1iAZT251..SED200606

DK.GRAY,TRIM1#

main67630-05A60-E1iAZT251..SED200606

GREGE,TRIM4#

main67630-05A70-B0iAZT250,255200606

DK.GRAY,TRIM1#

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67020-05160-B0iAZT251..WG200506-200606

DK. GRAY,TRIM1#

main67020-05170-A0iAZT250..LI200307-200402

main67020-05170-A0iAZT250..LI200402-200508

main67020-05170-A0iAZT251..SED200506-200606

IVORY,TRIM0#

main67020-05170-B0iAZT251..SED200506-200606

DK. GRAY,TRIM1#

main67020-05170-B0iAZT250..LI200307-200402

main67020-05170-B0iAZT250..LI200402-200508

main67020-05200-B0iAZT250,255..XI200307-200606

DK. GRAY,TRIM1#

main67020-05260-A0iAZT250..LI200307-200508

IVORY,TRIM0#

main67020-05260-B0iAZT250..LI200307-200508

DK. GRAY,TRIM1#

main67640-05A40-B2iAZT251..WG200606

DK.GRAY,TRIM1#

main67640-05A40-E1iAZT251..WG200606

GREGE,TRIM4#

main67640-05A50-B1iAZT251..SED200606

DK.GRAY,TRIM1#

main67640-05A50-E1iAZT251..SED200606

GREGE,TRIM4#

main67640-05A60-B0iAZT250,255200606

DK.GRAY,TRIM1#

67617CBASE, REAR DOOR TRIM, RH

main67617-05030-B0iAZT250..LI;AZT251..SED200307-200606

DK. GRAY,TRIM1#

main67617-05030-B0iAZT250..LI;AZT251..SED200307-200606

DK. GRAY,TRIM0#,1#

main67617-05040-B0iAZT250,255200606

DK.GRAY,TRIM1#

main67617-05040-B0iAZT250,255200606

DK.GRAY,TRIM1#,4#

67618ABASE, REAR DOOR TRIM, LH

main67618-05030-B0iAZT250..LI;AZT251..SED200307-200606

DK. GRAY,TRIM0#,1#

main67618-05030-B0iAZT251..WG;AZT250,255..XI200307-200606

DK. GRAY,TRIM1#

main67618-05040-B0iAZT250,255200606

DK.GRAY,TRIM1#

main67618-05040-B0iAZT250,255200606

DK.GRAY,TRIM1#,4#

67721COVER, REAR DOOR TRIM, RH

main67721-05020iAZT250..LI200307-200508

main67721-05020iAZT251..WG200506-200606

main67721-05030iAZT250..LI200307-200402

main67721-05030iAZT250..LI;AZT251..SED200307-200606

main67721-05030iAZT250..LI200402-200508

67722COVER, REAR DOOR TRIM, LH

main67722-05020iAZT251..WG200506-200606

main67722-05020iAZT250..LI200307-200508

main67722-05030iAZT250..LI200402-200508

main67722-05030iAZT250..LI200307-200402

main67722-05030iAZT250..LI;AZT251..SED200307-200606

67745BSEAL, REAR DOOR TRIM, RH

main67745-05010iAZT250..LI200402-200508

main67745-05010iAZT250..LI200307-200402

main67745-05010iAZT25#200307-200606

67746SEAL, REAR DOOR TRIM, LH

main67746-05010iAZT250..LI200307-200402

main67746-05010iAZT250..LI200402-200508

main67746-05010iAZT251;AZT250,255..XI200307-200606

67772FCAP, REAR DOOR TRIM RETAINER

main67772-05030-A0iAZT250..LI;AZT251..SED200307-200606

IVORY,TRIM0#

main67772-05030-B0iAZT25#200307-200606

DK.GRAY,TRIM1#

main67772-05030-E0iAZT251200606

GREGE,TRIM4#

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-05091iAZT25#200307-200606

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-05091iAZT25#200307-200606

9015960605

main90159-60605

9016460028

main90164-60028

9016840061

main90168-40061

9018905003

main90189-05003

9046710161

main90467-10161

9090189021

main90901-89021

9090189022

main90901-89022

9356015016

main93560-15016

19 parts on this diagram · 3 diagrams in section
