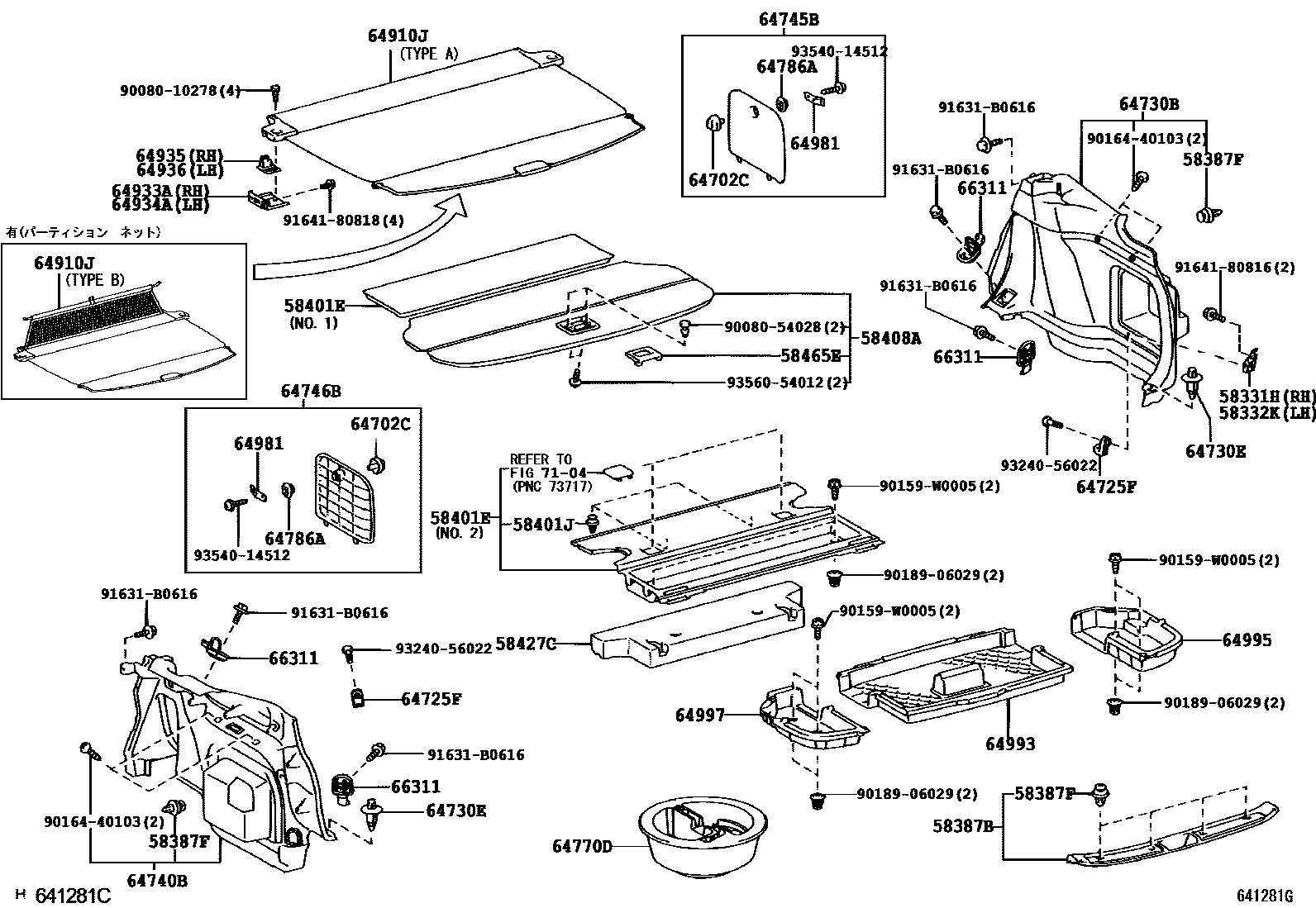

DECK BOARD & DECK TRIM COVER
58331HBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1
58332KBRACKET, LUGGAGE COMPARTMENT TRIM, NO.2
58387BPLATE, REAR FLOOR FINISH
IVORY,TRIM0#
DK.GRAY,TRIM1#
GREGE,TRIM4#
58387FCLIP, REAR FLOOR FINISH PLATE
58401EBOARD SUB-ASSY, DECK
58401JCLIP(FOR DECK BOAD)
58408ABOARD SUB-ASSY, DECK, NO.2
IVORY,TRIM0#
DK GRAY,TRIM1#
GREGE,TRIM4#
58427CSPACER, REAR FLOOR BOARD
58465EHANDLE, DECK BOARD
64702CKNOB, WASHER TANK COVER
IVORY,TRIM01
DK.GRAY,TRIM1#
BLACK,TRIM01,16
GREGE,TRIM4#
64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
IVORY,TRIM01
DK.GRAY,TRIM1#
GREGE,TRIM4#
64730BPANEL ASSY, DECK TRIM SIDE, RH
IVORY,TRIM0#
DK GRAY,TRIM1#
GREGE,TRIM4#
64730ECLIP(FOR DECK TRIM SIDE BOARD)
64740BBOARD, DECK TRIM SIDE, LH
IVORY,TRIM0#
DK GRAY,TRIM1#
GREGE,TRIM4#
64745BCOVER, REAR COMBINATION LAMP SERVICE, NO.2, RH
IVORY,TRIM0#
DK GRAY,TRIM1#
GREGE,TRIM4#
64746BCOVER, REAR COMBINATION LAMP SERVICE, NO.2, LH
IVORY,TRIM0#
DK GRAY,TRIM1#
GREGE,TRIM4#
64770DCOVER ASSY, SPARE WHEEL
64786APLATE, JACK COVER
64933ABRACKET, TONNEAU COVER HOLDER, RH
64934ABRACKET, TONNEAU COVER HOLDER, LH
64935HOLDER, TONNEAU COVER, RH
64936HOLDER, TONNEAU COVER, LH
64981STOPPER, WASHER TANK COVER
64993BOX, DECK FLOOR, REAR
64995BOX, DECK FLOOR, RH
64997BOX, DECK FLOOR, LH
66311HOOK, ROPE
IVORY,TRIM0#
DK.GRAY,TRIM1#
GREGE,TRIM4#
7104
9008010278
main90080-10278
9008054028
main90080-54028
90159W0005
main90159-W0005
9016440103
main90164-40103
9018906029
main90189-06029
91631B0616
main91631-B0616
9164180816
main91641-80816
9164180818
main91641-80818
9324056022
main93240-56022
9354014512
main93540-14512
9356054012
main93560-54012
40 parts on this diagram · 1 diagram in section
