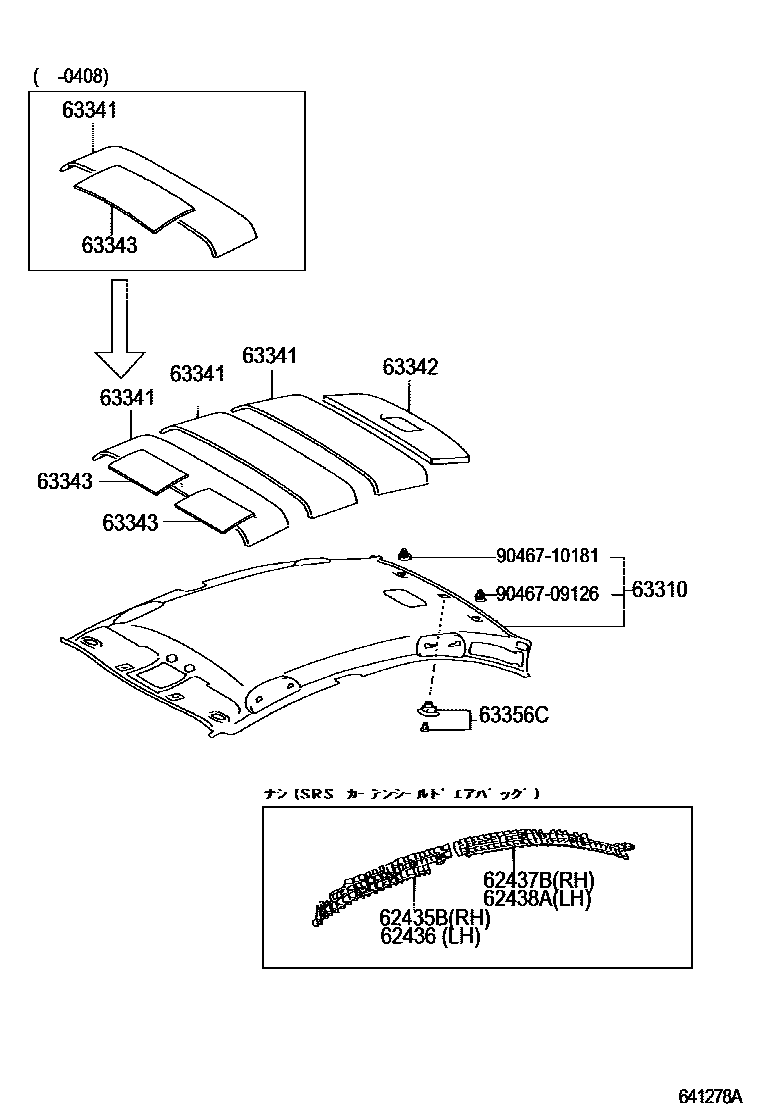

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1

62435BPAD, ROOF SIDE RAIL, FRONT RH

main62435-05050iAZT251..LI;AZT250,255..XI200307-200606

main62435-05050iAZT25#..LI,XI200606

62437BPAD, ROOF SIDE RAIL, REAR RH

main62437-05080iAZT25#..SED..(LI,XI)200606

main62437-05080iAZT251..SED..LI;AZT250,255..SED..XI200307-200606

main62437-05100iAZT250,255..WG..XI200307-200606

main62437-05100iAZT25#..WG..(LI,XI)200606

62438APAD, ROOF SIDE RAIL, REAR LH

main62438-05080iAZT251..SED..LI;AZT250,255..SED..XI200307-200606

main62438-05080iAZT25#..SED..(LI,XI)200606

main62438-05100iAZT250,255..WG..XI200307-200606

main62438-05100iAZT25#..WG..(LI,XI)200606

63310HEADLINING ASSY, ROOF

main63310-05440-A0iAZT250,251..SED..(LI,QI)200307-200606

IVORY,TRIM0#

sub63310-05441

main63310-05440-B0iAZT25#..SED200307-200606

LT. GRAY,TRIM1#

sub63310-05441

main63310-05440-E0iAZT251..SED200606

GREGE,TRIM4#

sub63310-05441

main63310-05520-A0iAZT250..WG..LI200307-200508

IVORY,TRIM0#

sub63310-05521

main63310-05520-B0iAZT25#..WG200307-200606

LT. GRAY,TRIM1#

sub63310-05521

main63310-05520-E0iAZT251..WG200606

GREGE,TRIM4#

sub63310-05521

63341PAD, ROOF SILENCER, NO.1

main63341-05060iAZT25#..SED200307-200606

63342PAD, ROOF SILENCER, NO.2

main63342-05030iAZT25#..SED200307-200606

63343PAD, ROOF SILENCER, NO.3

main63343-05020iAZT25#200307-200408

main63343-05021iAZT25#200408-200606

63356CHOLDER, SUNSHADE TRIM

main63356-05010-A0iAZT250..SED..LI;AZT251..SED..QI200307-200606

IVORY,TRIM0#

main63356-05010-B0iAZT250..SED..LI;AZT251..SED..QI200307-200606

LT.GRAY,TRIM1#

main63356-05010-E0iAZT251..SED..QI200606

GREGE,TRIM4#

main63356-05020-A0iAZT251..SED..LI200506-200606

IVORY,TRIM0#

main63356-05020-B0iAZT251..SED..LI;AZT250,255..SED..XI200307-200606

LT.GRAY,TRIM1#

main63356-05020-E0iAZT251..SED..LI200606

GREGE,TRIM4#

9046709126

main90467-09126

9046710181

main90467-10181

10 parts on this diagram · 2 diagrams in section
