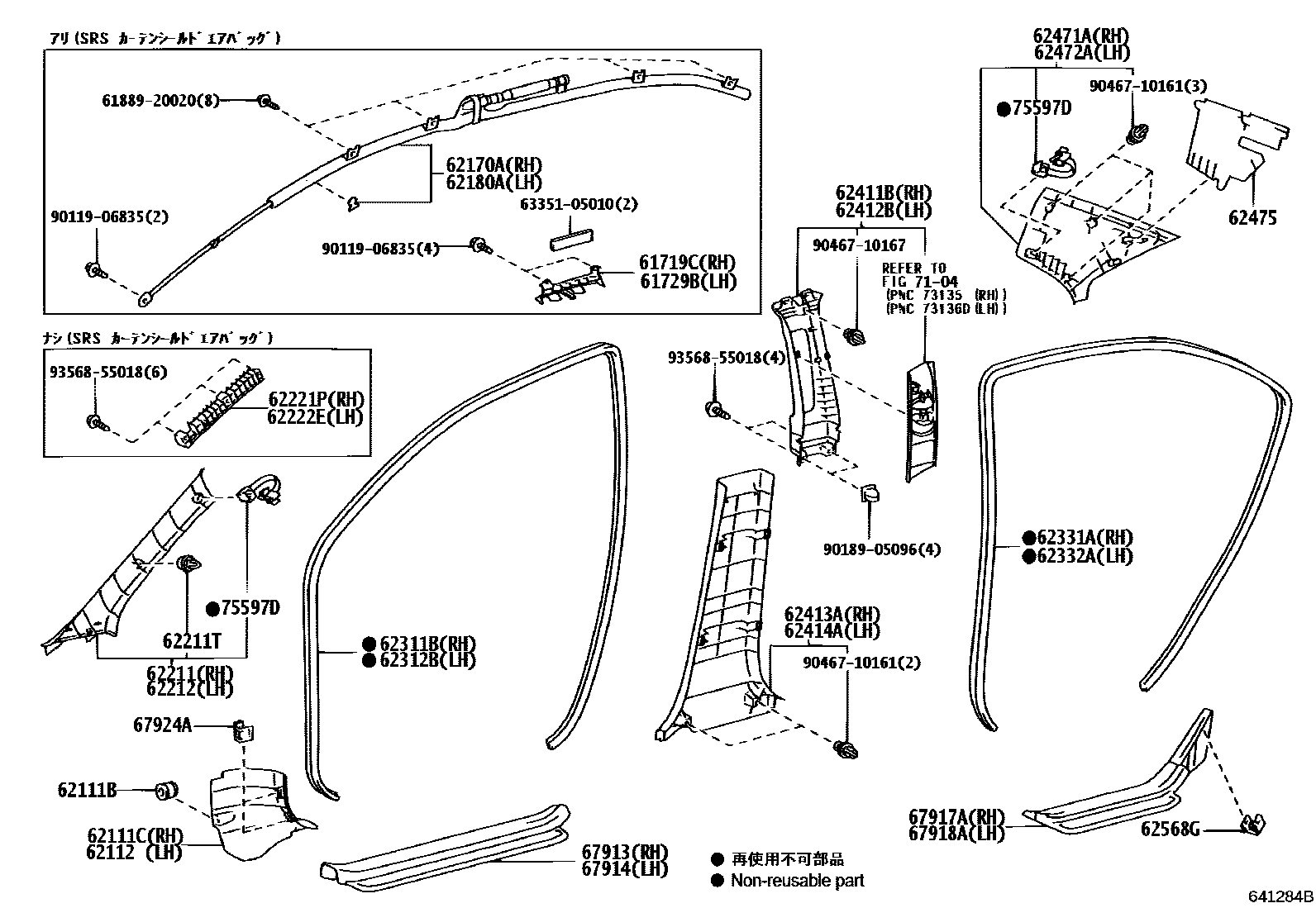

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

61719CBRACKET, ROOF SIDE RAIL, RH

main61719-05010iAZT251..QI200307-200606

61729BBRACKET, ROOF SIDE RAIL, LH

main61729-05010iAZT250..LI;AZT251..QI200307-200606

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06191iAZT25#200307-200606

62111CBOARD, COWL SIDE TRIM, RH

main62111-05040-A0iAZT250..LI;AZT251..SED200307-200606

IVORY,TRIM0#

main62111-05040-B0iAZT25#200307-200606

DK.GRAY,TRIM1#

main62111-05040-E0iAZT251200606

GREGE,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-05040-A0iAZT250..LI;AZT251..SED200307-200606

IVORY,TRIM0#

main62112-05040-B0iAZT25#200307-200606

DK.GRAY,TRIM1#

main62112-05040-E0iAZT251200606

GREGE,TRIM4#

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-05030iAZT250..SED..LI;AZT251..SED..QI200307-200606

main62170-05040iAZT251..WG..QI200307-200606

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-05030iAZT250..SED..LI;AZT251..SED..QI200307-200606

main62180-05040iAZT250..WG..LI;AZT251..WG..QI200307-200606

62211GARNISH, FRONT PILLAR, RH

main62211-05020-A0iAZT250..LI;AZT251..SED..QI200307-200606

IVORY,TRIM0#

main62211-05020-B0iAZT251..QI200307-200606

LT. GRAY,TRIM1#

main62211-05020-E0iAZT251..QI200606

GREGE,TRIM4#

main62211-05030-A0iAZT251..SED..LI200506-200606

IVORY,TRIM0#

main62211-05030-B0iAZT25#..LI,XI200307-200606

LT. GRAY,TRIM1#

main62211-05030-E0iAZT251..LI200606

GREGE,TRIM4#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main62217-13010iAZT25#200307-200606

62212GARNISH, FRONT PILLAR, LH

main62212-05020-A0iAZT250..LI;AZT251..SED..QI200307-200606

IVORY,TRIM0#

main62212-05020-B0iAZT251..QI200307-200606

LT. GRAY,TRIM1#

main62212-05020-E0iAZT251..QI200606

GREGE,TRIM4#

main62212-05030-A0iAZT251..SED..LI200506-200606

IVORY,TRIM0#

main62212-05030-B0iAZT25#..LI,XI200307-200606

LT. GRAY,TRIM1#

main62212-05030-E0iAZT251..LI200606

GREGE,TRIM4#

62221PSPACER, FRONT PILLAR, NO.1 RH

main62221-05020iAZT25#..LI,XI200307-200606

62222ESPACER, FRONT PILLAR, NO.1 LH

main62231-05010iAZT251..LI;AZT250,255..XI200307-200606

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-05030-A0iAZT250..LI;AZT251..SED200307-200606

IVORY,TRIM0#

main62311-05030-B0iAZT25#200307-200606

DK.GRAY,TRIM1#

main62311-05030-E0iAZT251200606

GREGE,TRIM4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-05030-A0iAZT250..LI;AZT251..SED200307-200606

IVORY,TRIM0#

main62312-05030-B0iAZT25#200307-200606

DK.GRAY,TRIM1#

main62312-05030-E0iAZT251200606

GREGE,TRIM4#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-05070-A0iAZT250,251..SED..(LI,QI)200307-200606

IVORY,TRIM0#

main62331-05070-B0iAZT25#..SED200307-200606

DK.GRAY,TRIM1#

main62331-05070-E0iAZT251..SED200606

GREGE,TRIM4#

main62331-05090-A0iAZT250..WG..LI200307-200508

IVORY,TRIM0#

main62331-05090-B0iAZT25#..WG200307-200606

DK.GRAY,TRIM1#

main62331-05090-E0iAZT251..WG200606

GREGE,TRIM4#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-05070-A0iAZT250,251..SED..(LI,QI)200307-200606

IVORY,TRIM0#

main62332-05070-B0iAZT25#..SED200307-200606

DK.GRAY,TRIM1#

main62332-05070-E0iAZT251..SED200606

GREGE,TRIM4#

main62332-05090-A0iAZT250..WG..LI200307-200508

IVORY,TRIM0#

main62332-05090-B0iAZT25#..WG200307-200606

DK.GRAY,TRIM1#

main62332-05090-E0iAZT251..WG200606

GREGE,TRIM4#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-05020-A0iAZT250..LI;AZT251..SED200307-200606

IVORY,TRIM0#

main62410-05020-B0iAZT25#200307-200606

LT. GRAY,TRIM1#

main62410-05020-E0iAZT251200606

GREGE,TRIM4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-05020-A0iAZT250..LI;AZT251..SED200307-200606

IVORY,TRIM0#

main62420-05020-B0iAZT25#200307-200606

LT. GRAY,TRIM1#

main62420-05020-E0iAZT251200606

GREGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-05030-A0iAZT250..LI;AZT251..SED200307-200606

IVORY,TRIM0#

main62413-05030-B0iAZT25#200307-200606

DK.GRAY,TRIM1#

main62413-05030-E0iAZT251200606

GREGE,TRIM4#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-05030-A0iAZT250..LI;AZT251..SED200307-200606

IVORY,TRIM0#

main62414-05030-B0iAZT25#200307-200606

DK.GRAY,TRIM1#

main62414-05030-E0iAZT251200606

GREGE,TRIM4#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-05060-A0iAZT251..SED..LI200506-200606

IVORY,TRIM0#

main62471-05060-B0iAZT25#..SED..(LI,XI)200307-200606

LT. GRAY,TRIM1#

main62471-05060-E0iAZT251..SED..LI200606

GREGE,TRIM4#

main62471-05080-B0iAZT25#..WG..(LI,XI)200307-200606

LT. GRAY,TRIM1#

main62471-05080-E0iAZT251..WG..LI200606

GREGE,TRIM4#

main62471-05090-A0iAZT250..SED..LI;AZT251..SED..QI200307-200606

IVORY,TRIM0#

main62471-05090-B0iAZT251..SED..QI200307-200606

LT. GRAY,TRIM1#

main62471-05090-E0iAZT251..SED..QI200606

GREGE,TRIM4#

main62471-05110-A0iAZT250..WG..LI200307-200508

IVORY,TRIM0#

main62471-05110-B0iAZT250..WG..LI;AZT251..WG..QI200307-200606

LT. GRAY,TRIM1#

main62471-05110-E0iAZT251..WG..QI200606

GREGE,TRIM4#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-05060-A0iAZT251..SED..LI200506-200606

IVORY,TRIM0#

main62472-05060-B0iAZT251..SED..LI;AZT250,255..SED..XI200307-200606

LT. GRAY,TRIM1#

main62472-05060-E0iAZT251..SED..LI200606

GREGE,TRIM4#

main62472-05080-B0iAZT251..WG..LI;AZT250,255..WG..XI200307-200606

LT. GRAY,TRIM1#

main62472-05080-E0iAZT251..WG..LI200606

GREGE,TRIM4#

main62472-05090-A0iAZT250..SED..LI;AZT251..SED..QI200307-200606

IVORY,TRIM0#

main62472-05090-B0iAZT251..SED..QI200307-200606

LT. GRAY,TRIM1#

main62472-05090-E0iAZT251..SED..QI200606

GREGE,TRIM4#

main62472-05110-A0iAZT250..WG..LI200307-200508

IVORY,TRIM0#

main62472-05110-B0iAZT250..WG..LI;AZT251..WG..QI200307-200606

LT. GRAY,TRIM1#

main62472-05110-E0iAZT251..WG..QI200606

GREGE,TRIM4#

62475PAD, ROOF SIDE INNER GARNISH

main62475-05030iAZT25#..SED200307-200606

main62475-05050iAZT25#..WG200307-200606

62568GCLAMP, ROCKER PANEL INNER PROTECTOR, NO.3

main62568-20010iAZT25#200307-200606

67913PLATE, FRONT DOOR SCUFF, RH

main67913-05030-A0iAZT251..SED..LI200506-200606

IVORY,TRIM0#

main67913-05030-B0iAZT251..LI;AZT250,255..XI200307-200606

DK.GRAY,TRIM1#

main67913-05030-E0iAZT251..LI200606

GREGE,TRIM4#

main67913-05040-A0iAZT250..LI;AZT251..SED..QI200307-200606

IVORY,TRIM0#

main67913-05040-B0iAZT250..LI;AZT251..QI200307-200606

DK.GRAY,TRIM1#

main67913-05050-B0iAZT251..QI200606

DK.GRAY,TRIM1#

main67913-05050-E0iAZT251..QI200606

GREGE,TRIM4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-05030-A0iAZT251..SED..LI200506-200606

IVORY,TRIM0#

main67914-05030-B0iAZT25#..LI,XI200307-200606

DK.GRAY,TRIM1#

main67914-05030-E0iAZT251..LI200606

GREGE,TRIM4#

main67914-05040-A0iAZT250..LI;AZT251..SED..QI200307-200606

IVORY,TRIM0#

main67914-05040-B0iAZT250..LI;AZT251..QI200307-200606

DK.GRAY,TRIM1#

main67914-05050-B0iAZT251..QI200606

DK.GRAY,TRIM1#

main67914-05050-E0iAZT251..QI200606

GREGE,TRIM4#

67917APLATE, REAR DOOR SCUFF, RH

main67917-05030-A0iAZT251..SED..LI200506-200606

IVORY,TRIM0#

main67917-05030-B0iAZT251..LI;AZT250,255..XI200307-200606

DK.GRAY,TRIM1#

main67917-05030-E0iAZT251..LI200606

GREGE,TRIM4#

main67917-05040-A0iAZT250..LI;AZT251..SED..QI200307-200606

IVORY,TRIM0#

main67917-05040-B0iAZT250..LI;AZT251..QI200307-200606

DK.GRAY,TRIM1#

main67917-05050-B0iAZT251..QI200606

DK.GRAY,TRIM1#

main67917-05050-E0iAZT251..QI200606

GREGE,TRIM4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-05030-A0iAZT251..SED..LI200506-200606

IVORY,TRIM0#

main67918-05030-B0iAZT251..LI;AZT250,255..XI200307-200606

DK.GRAY,TRIM1#

main67918-05030-E0iAZT251..LI200606

GREGE,TRIM4#

main67918-05040-A0iAZT250..LI;AZT251..SED..QI200307-200606

IVORY,TRIM0#

main67918-05040-B0iAZT250..LI;AZT251..QI200307-200606

DK.GRAY,TRIM1#

main67918-05050-B0iAZT251..QI200606

DK.GRAY,TRIM1#

main67918-05050-E0iAZT251..QI200606

GREGE,TRIM4#

67924ACLAMP, DOOR SCUFF PLATE, NO.2

main67924-20090iAZT25#200307-200606

7104

75597DCLIP, ROOF SIDE GARNISH

main75597-05010iAZT25#200307-200606

main75597-0F010iAZT25#200606

sub75597-05010

6188920020RETAINER, SIDE PANEL

main61889-20020

6335105010SILENCER, ROOF SIDE

main63351-05010

9011906835

main90119-06835

9018905096

main90189-05096

9046710161

main90467-10161

9046710167

main90467-10167

9356855018

main93568-55018

38 parts on this diagram · 2 diagrams in section
