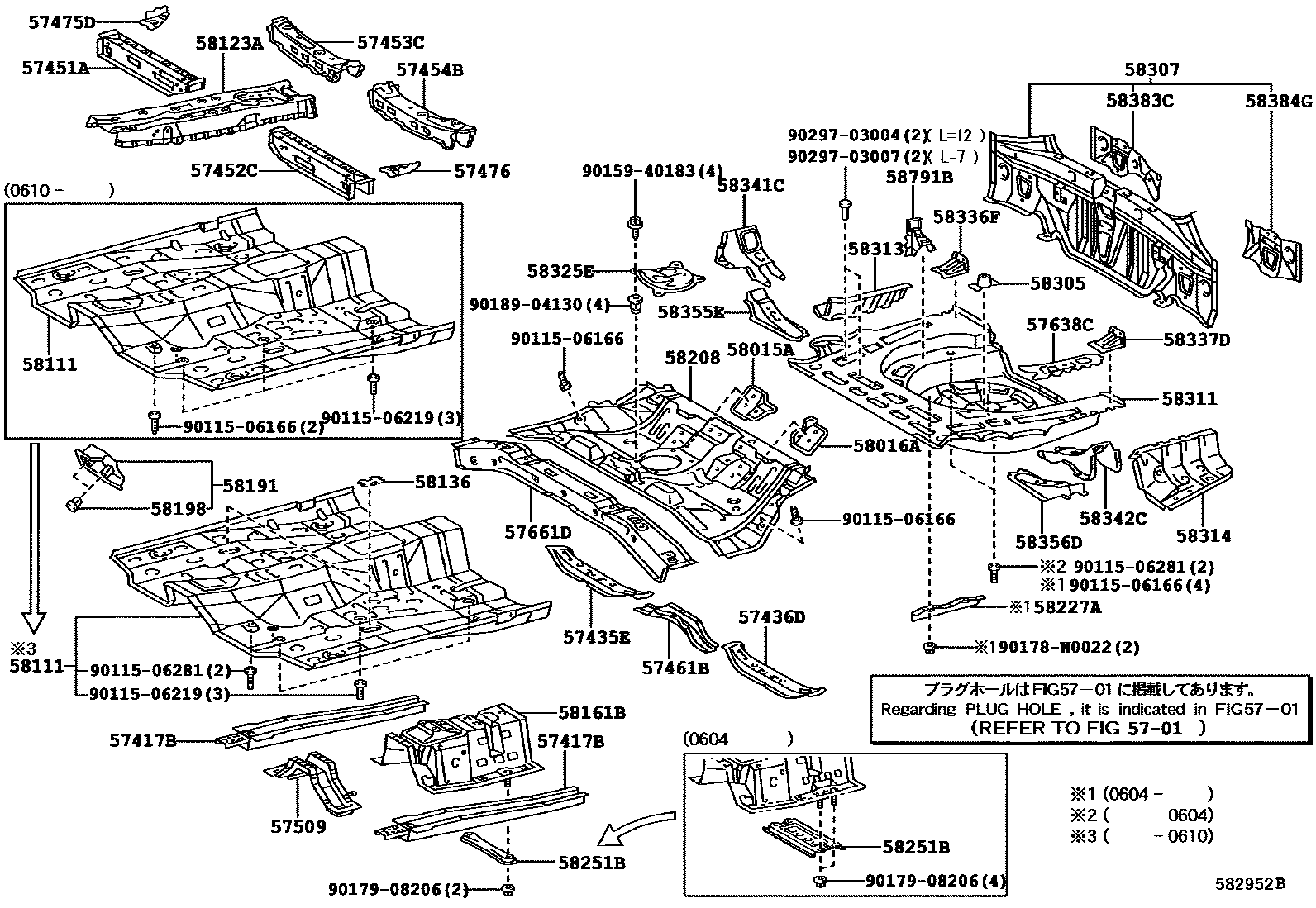

FLOOR PAN & LOWER BACK PANEL
5701
57417BREINFORCEMENT, FRONT FLOOR UNDER
57435EMEMBER, CENTER FLOOR SIDE, RH
57436DMEMBER, CENTER FLOOR SIDE, LH
57451AMEMBER, FRONT FLOOR CROSS, RH
57452CMEMBER, FRONT FLOOR CROSS, LH
57453CMEMBER, FRONT FLOOR CROSS SIDE, RH
57454BMEMBER, FRONT FLOOR CROSS SIDE, LH
57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57475DPLATE, FRONT FLOOR CROSSMEMBER, RH
57476PLATE, FRONT FLOOR CROSSMEMBER, LH
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57638CREINFORCEMENT, REAR FLOOR SIDE MEMBER, CENTER LH
57661DMEMBER, REAR FLOOR CROSS, FRONT
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58111PAN, FRONT FLOOR
58123ASUPPORT, SHIFT & SELECT LEVER
58136COVER, FRONT FLOOR HOLE
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58191FOOTREST, FRONT FLOOR
58198CLIP, FOOTREST
58208PAN, CENTER FLOOR
58227APLATE, AIR GUIDE
58251BBRACE, FLOOR PANEL, FRONT
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58336FREINFORCEMENT, REAR FLOOR PAN, RH
58337DREINFORCEMENT, REAR FLOOR PAN, LH
58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH
58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH
58355EBRACKET, REAR BUMPER ARM, RH
58356DBRACKET, REAR BUMPER ARM, LH
58383CREINFORCEMENT, BODY LOWER BACK PANEL, INNER
58384GGUSSET, LOWER BACK, UPPER RH
58791BCARRIER, JACK
9011506166
9011506219
9011506281
9015940183
90178W0022
main90178-W0022
9017908206
9018904130
9029703004
9029703007
49 parts on this diagram · 4 diagrams in section
