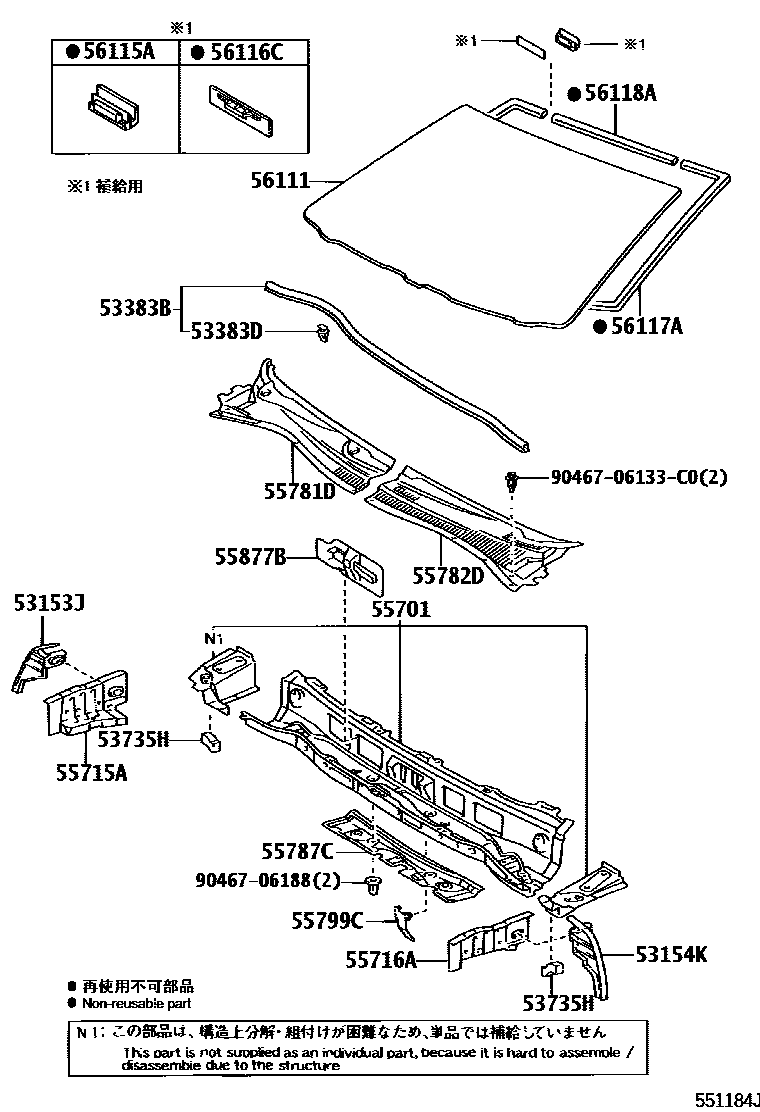

COWL PANEL & WINDSHIELD GLASS

53153JGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-20010iAZT25#200307-200606

53154KGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-20010iAZT25#200307-200606

53383BSEAL, HOOD TO COWL TOP

main53383-05030iAZT25#200307-200606

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08108×8iAZT25#200307-200604

53735HSEAL, FRONT FENDER APRON, UPPER

main53735-05010×2iAZT25#200606

55701PANEL SUB-ASSY, COWL

main55700-05100iAZT25#200508-200606

main55700-05220iAZT25#200307-200507

55715ABRACE, COWL TOP TO APRON, RH

main55715-05020iAZT25#200606

55716ABRACE, COWL TOP TO APRON, LH

main55716-05020iAZT25#200307-200606

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-05081iAZT25#200307-200606

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-05061iAZT25#200606

55787CINSULATOR, COWL TOP PANEL, NO.1

main55787-05040iAZT25#200307-200606

main55787-05041iAZT25#200802

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-05010iAZT25#200307-200606

55877BCOVER, COWL VENT, RH

main55877-20060iAZT25#200307-200606

56111GLASS, WINDSHIELD

main56101-05140iAZT25#200307-200606

main56101-05300iAZT25#200606

main56101-05170iAZT25#..XI200307-200412

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2iAZT25#200307-200606

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iAZT25#200307-200606

56117ADAM, WINDOW GLASS ADHESIVE

main56117-20270iAZT25#200307-200606

sub56117-64010

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-20090iAZT25#200307-200606

sub56117-52040

9046706133C0

main90467-06133C0

9046706188

main90467-06188

20 parts on this diagram · 1 diagram in section
