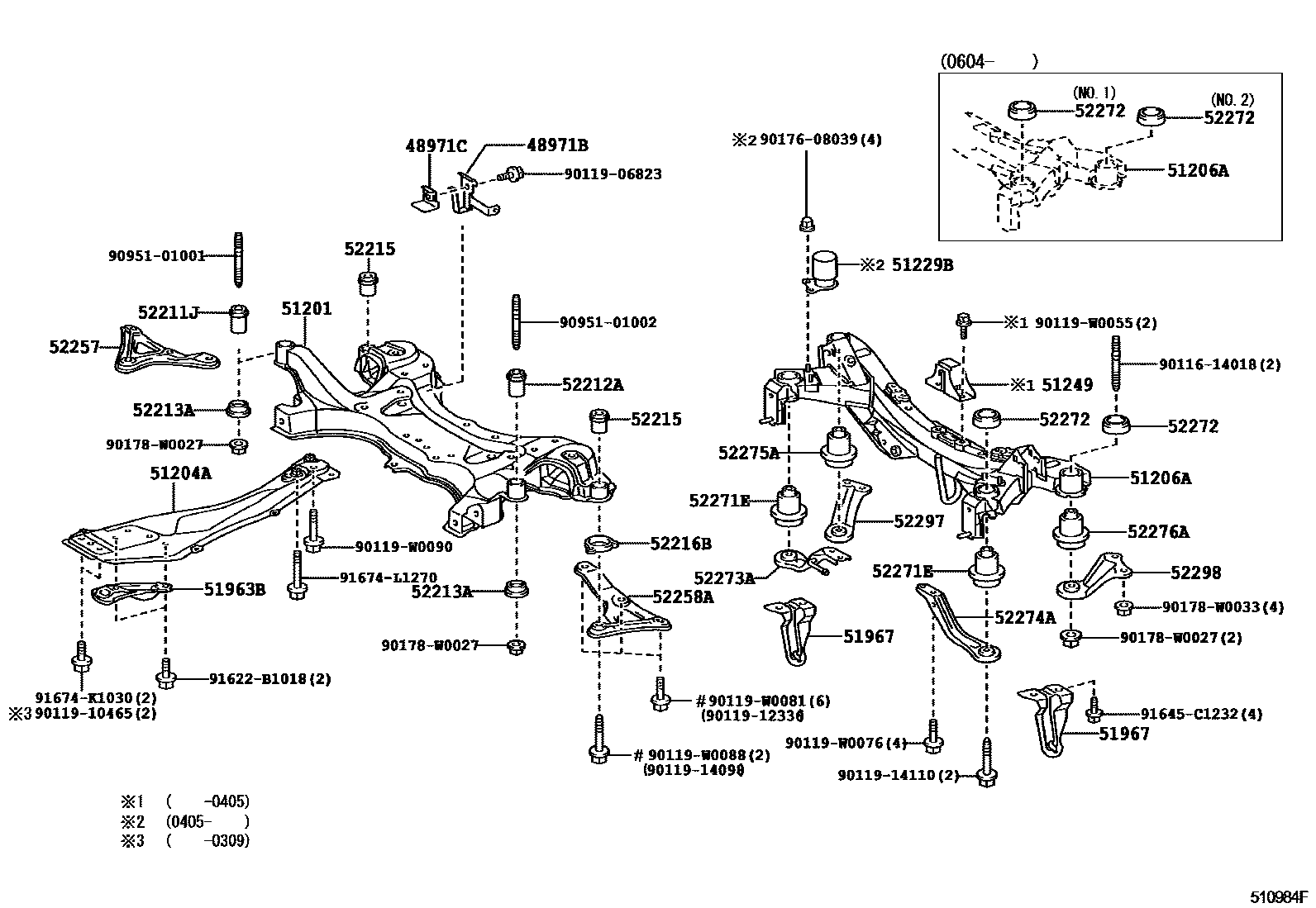

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1�������� 0004 1 0005 1��������

48971BBRACKET, HEIGHT CONTROL PUMP, NO.1

main48971-20010iAZT251200307-200606

48971CBRACKET, HEIGHT CONTROL PUMP, NO.2

main48972-20010iAZT251200307-200606

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-05071iAZT250200307-200407

sub51201-05072

main51201-05072iAZT250200408-200606

main51201-05085iAZT251200506-200606

main51201-44030iAZT255200309-200606

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-05042iAZT251200506-200811

main51204-05051iAZT250200307-200811

main51204-20150iAZT255200309-200703

sub51204-20151

main51204-20151iAZT255200703-200811

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-05060iAZT250200307-200405

sub51206-05061

sub51229-05030

sub90176-08039

main51206-05061iAZT250,251200405-200606

main51206-21070iAZT255200309-200606

sub51206-21140

51229BDUMPER, NO.2 FRAME CROSSMEMBER DYNAMIC

main51229-05030iAZT250,251200405-200606

51249DAMPER, REAR SUSPENSION MEMBER

main51249-05010iAZT250200307-200405

51963BHOOK, TRANSPORT, FRONT RH

main51963-05010iAZT25#200307-200606

51967HOOK, TRANSPORT, REAR

main51967-05030iAZT25#200307-200606

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-05010iAZT25#200307-200606

52212ACUSHION, BODY MOUNTING, NO.2

main52212-05010iAZT25#200307-200606

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-05010iAZT25#200307-200606

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-05010iAZT25#200307-200606

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-05010iAZT25#200307-200606

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-05020iAZT25#200307-200606

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-05020iAZT25#200307-200606

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-05010iAZT250,251200307-200606

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-05011iAZT250,251200606

main52272-05011iAZT250,251200307-200606

main52277-05020iAZT250,251200606

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-21020iAZT255200309-200606

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-20040iAZT250200307-200606

main52203-20050iAZT251200506-200606

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-20020iAZT251200506-200606

main52274-20010iAZT250200307-200606

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-05011iAZT250,251200307-200606

main52275-05020iAZT250,251200606

main52275-21040iAZT255200309-200606

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-05011iAZT250,251200307-200606

main52276-05020iAZT250,251200606

main52276-21020iAZT255200309-200606

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-20020iAZT250,251200307-200606

main52297-20030iAZT255200309-200606

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-20010iAZT250,251200307-200606

main52298-20020iAZT255200309-200606

9011614018

main90116-14018

9011906823

main90119-06823

9011910465

main90119-10465

9011912336

main90119-12336

9011914098

main90119-14098

9011914110

main90119-14110

90119W0055

main90119-W0055

90119W0076

main90119-W0076

90119W0081

main90119-W0081

90119W0088

main90119-W0088

90119W0090

main90119-W0090

9017608039

main90176-08039

90178W0027

main90178-W0027

90178W0033

main90178-W0033

9095101001

main90951-01001

9095101002

main90951-01002

91622B1018

main91622-B1018

91645C1232

main91645-C1232

91674K1030

main91674-K1030

91674L1270

main91674-L1270

45 parts on this diagram · 5 diagrams in section
