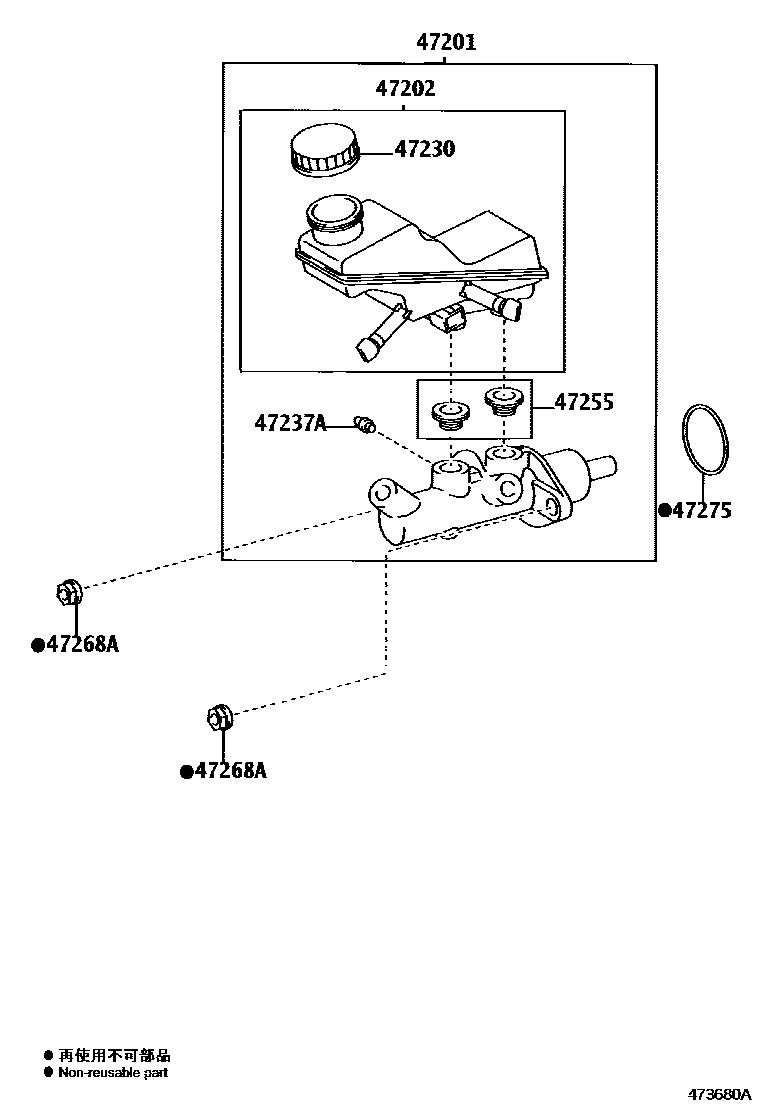

BRAKE MASTER CYLINDER

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-05100iAZT250..XI200307-200412

sub47201-05101

main47201-05100iAZT250..XI200412-200506

sub47201-05101

main47201-05100iAZT255200309-200711

sub47201-05101

main47201-05101iAZT255200712

main47201-05120iAZT250,251200307-200711

sub47201-05121

main47201-05121iAZT250,251200712

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-05060iAZT25#200307-200606

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D010iAZT25#200307-200606

47237ASTOPPER, BREKE MASTER CYLINDER RESERVOIR TANK

main47237-0D010iAZT25#200307-200606

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09010iAZT25#200307-200606

47268ANUT, BRAKE MASTER CYLINDER

main47268-0D010iAZT25#200307-200606

47275GASKET, BRAKE MASTER CYLINDER

main47275-05020iAZT25#200307-200606

7 parts on this diagram · 1 diagram in section
