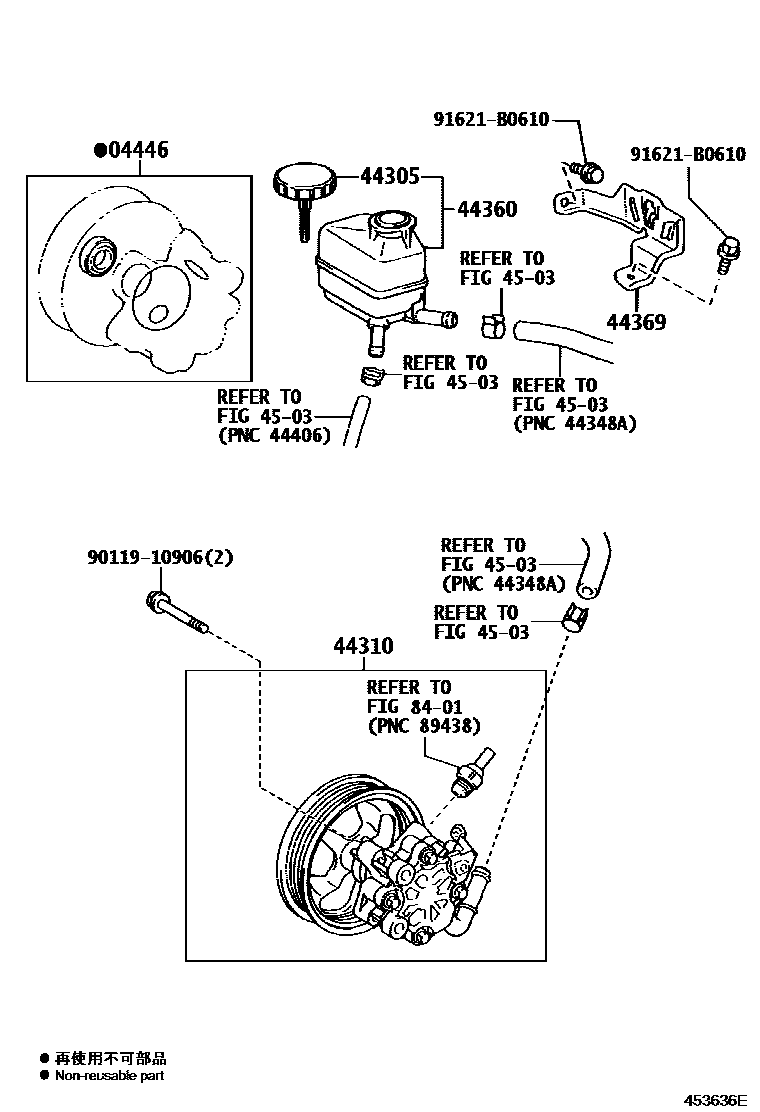

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-02050iAZT25#200307-200606

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-20041iAZT25#200307-200711

sub44305-20050

main44305-20050iAZT25#200712

44310PUMP ASSY, VANE

main44310-05090iAZT250,251200307-200606

main44310-05110iAZT255200309-200606

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-20150iAZT25#200307-200606

44369BRACKET, OIL RESERVOIR, NO.1

main44390-20060iAZT25#200307-200606

4503

8401

9011910906

main90119-10906

91621B0610

main91621-B0610

9 parts on this diagram · 1 diagram in section
