PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-20160-A0iNZT260,ZRT26#..CBU201212-201606

IVORY,TRIM4#

main58387-20160-B0iNZT260,ZRT26#..CBU201004-201212

DK.GRAY,TRIM1#

main58387-20160-C0iNZT260,ZRT26#..CBU201212-201606

BLACK,TRIM1#

main58387-20160-E0iNZT260,ZRT26#..CBU200705-201004

GREGE,TRIM4#

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-07076-A0×2iNZT260,ZRT26#..CBU201212-201606

IVORY,TRIM4#

sub90467-07041

sub90467-A0016

main90467-07076-C0×2iNZT260,ZRT26#..CBU201004-201606

BLACK,TRIM1#

sub90467-07041

sub90467-A0016

main90467-07076-C7×2iZRT261..CBU201703-202009

BLACK,TRIM0#,2#

sub90467-07041

sub90467-A0016

main90467-07076-L0×2iNZT260,ZRT26#..CBU200705-201004

GREGE,TRIM4#

sub90467-07041

sub90467-A0016

58773ACOVER, LUGGAGE COMPARTMENT SIDE, RH

main58703-20230iNZT260,ZRT26#..CBU200705-201004

58774ACOVER, LUGGAGE COMPARTMENT SIDE, LH

main58704-20190iNZT260,ZRT26#..CBU200705-201004

6104

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-20A00-C0supersedes 64330-20A20-C0iNZT260,ZRT26#..CBU200705-201004

BLACK,TRIM1#

main64330-20A00-E1supersedes 64330-20A20-E0iNZT260,ZRT26#..CBU200705-201004

GREGE,TRIM4#

main64330-20A00-A1supersedes 64330-20A20-A1iNZT260,ZRT26#..CBU201212-201606

main64330-20A00-A2supersedes 64330-20A20-A2iZRT261..CBU201606-202009

main64330-20A00-C1supersedes 64330-20A20-C1iZRT261..CBU201606-202009

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-06020-A2×3iNZT260,ZRT26#..CBU201212-201606

IVORY,TRIM4#

main90467-06020-A8×3iNZT260,ZRT260,265..CBU201606

FLAXEN,TRIM0#

main90467-06020-B6×3iNZT260,ZRT26#..CBU200705-201004

DK.GRAY,TRIM1#

main90467-06020-C0×3iNZT260,ZRT26#..CBU200705-201004

BLACK

main90467-06020-E7×3iZRT261..CBU201606-202009

GREGE

64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-06020-A2×3iNZT260,ZRT26#..CBU201212-201606

IVORY,TRIM4#

main90467-06020-A8×3iZRT261..CBU201606-202009

FLAXEN,TRIM0#

main90467-06020-B6×3iZRT261..CBU201606-202009

DK.GRAY

main90467-06020-C0×3iNZT260,ZRT26#..CBU201212-201606

BLACK,TRIM1#

main90467-06020-E7×3iNZT260,ZRT260,265..CBU201606

GREGE

64334PAD, PACKAGE TRAY TRIM SILENCER

main64334-20320iNZT260,ZRT26#..CBU200705-201004

64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH

main64710-20040-A1iNZT260,ZRT26#..CBU201212-201606

IVORY,TRIM4#

main64710-20040-C1iNZT260,ZRT26#..CBU200705-201004

BLACK,TRIM1#

main64710-20040-E1iNZT260,ZRT26#..CBU201004-201212

GREGE,TRIM4#

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-20A10-A1iNZT260,ZRT26#..CBU201212-201606

IVORY,TRIM4#

main64711-20A10-C0iNZT260,ZRT260,265..CBU201606

BLACK,TRIM0#,2#

main64711-20A10-E0iNZT260,ZRT26#..CBU200705-201004

GREGE,TRIM4#

64714GCLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER)

main90467-07076-C0×10iNZT260,ZRT26#..CBU200705-200909

BLACK,TRIM1#

sub90467-07041

sub90467-A0016

main90467-07076-L0×10iNZT260,ZRT26#..CBU200705-200909

GREGE,TRIM4#

sub90467-07041

sub90467-A0016

main90467-08186-A1×10iNZT260,ZRT26#..CBU201212-201606

IVORY,TRIM4#

main90467-08186-C0×10iNZT260,ZRT26#..CBU200910-201004

BLACK,TRIM1#

main90467-08186-C3×10iZRT261..CBU201610-202009

BLACK,TRIM0#,2#

main90467-08186-E4×10iNZT260,ZRT26#..CBU201004-201212

GREGE,TRIM4#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-20170iNZT260,ZRT26#..CBU200705-201004

64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH

main64720-20030-A1iNZT260,ZRT26#..CBU201212-201606

IVORY,TRIM4#

main64720-20030-C1iNZT260,ZRT260,265..CBU201606

BLACK,TRIM0#,2#

main64720-20030-E1iNZT260,ZRT26#..CBU201004-201212

GREGE,TRIM4#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07076-C0×11iNZT260,ZRT26#..CBU201004-201606

BLACK

sub90467-07041

sub90467-A0016

main90467-07076-C7×11iNZT260,ZRT260,265..CBU201703

BLACK

sub90467-07041

sub90467-A0016

64727APAD, LUGGAGE COMPARTMENT TRIM, INNER

main64727-20020iNZT260,ZRT260,265..CBU201606

64770COVER ASSY, SPARE WHEEL

main64770-20320iNZT260,ZRT26#..CBU200705-201004

64777GCUSHION, SPARE WHEEL

main64777-20050iNZT260,ZRT26#..CBU200802-201004

main64777-20060iNZT260,ZRT26#..CBU200705-200802

7104

71295PLATE, REAR SEATBACK, UPPER RH

main71295-20050-A0iNZT260,ZRT26#..CBU201212-201606

IVORY,TRIM4#

main71295-20050-B0iNZT260,ZRT26#..CBU200705-201004

DK.GRAY,TRIM1#

main71295-20050-C0iNZT260,ZRT26#..CBU201212-201606

BLACK,TRIM1#

main71295-20050-E0iNZT260,ZRT26#..CBU200705-201004

GREGE,TRIM4#

main71295-20060-A0iNZT260,ZRT260,265..CBU201606

FLAXEN,TRIM0#

main71295-20060-C0iNZT260,ZRT260,265..CBU201606

BLACK,TRIM2#

71296APLATE, REAR SEATBACK, UPPER LH

main71296-20050-A0iNZT260,ZRT26#..CBU201212-201606

IVORY,TRIM4#

main71296-20050-A1iZRT261..CBU201606-202009

FLAXEN,TRIM0#

main71296-20050-B0iNZT260,ZRT26#..CBU200705-201004

DK.GRAY,TRIM1#

main71296-20050-C0iNZT260,ZRT260,265..CBU201606

BLACK,TRIM2#

main71296-20050-E0iNZT260,ZRT26#..CBU201004-201212

GREGE,TRIM4#

8502

9167380616

main91673-80616

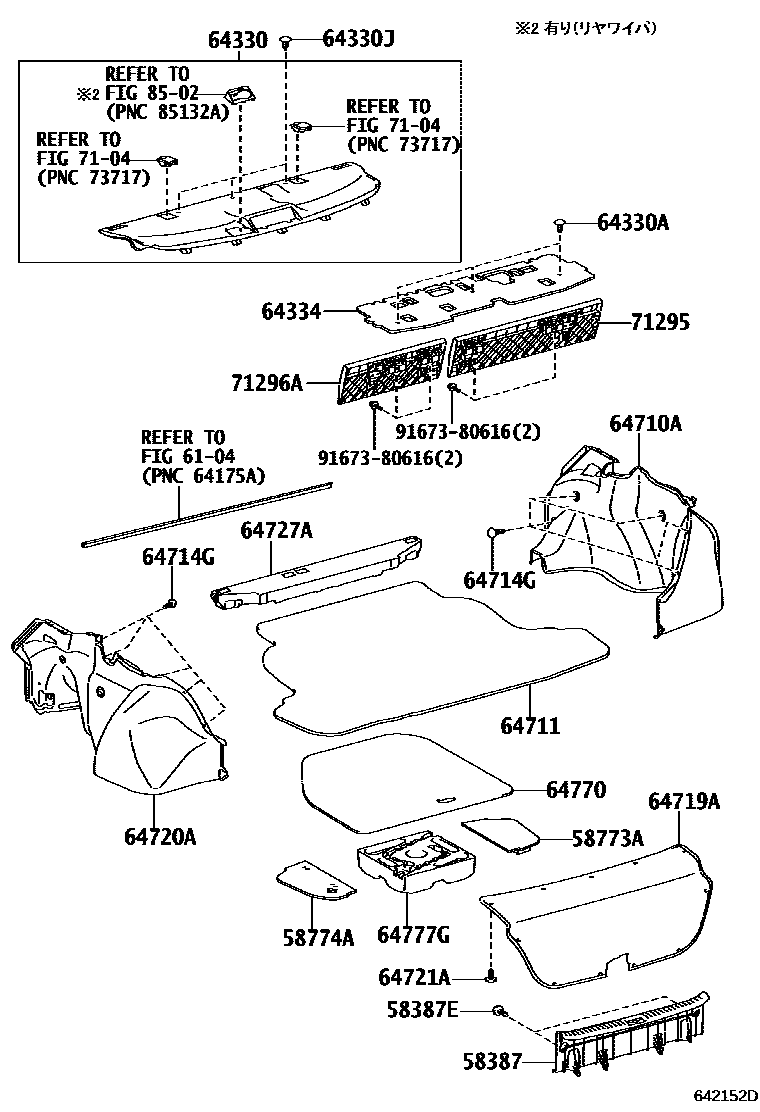

23 parts on this diagram · 1 diagram in section
