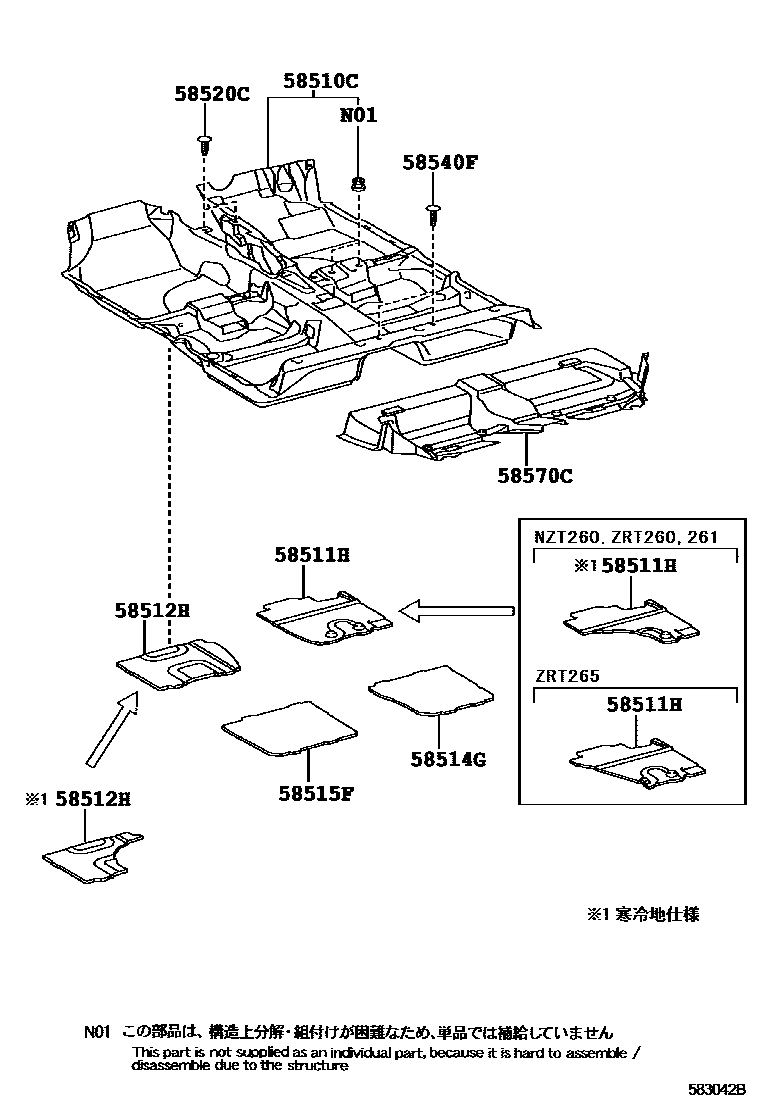

MAT & CARPET

0001 1 0002 1

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-20A10-B0supersedes 58510-20A00-B0iNZT260,ZRT260,261..CBU201004-201110

main58510-20A10-E0supersedes 58510-20A00-E0iNZT260,ZRT260,261..CBU201004-201110

main58510-20A11-B0supersedes 58510-20A01-B0iNZT260,ZRT260,261..CBU201110-201212

main58510-20A11-C0supersedes 58510-20A01-C0iNZT260,ZRT260,261..CBU201212-201404

main58510-20A11-E0supersedes 58510-20A01-E0iNZT260,ZRT260,261..CBU201110-201212

main58510-20A12-C0supersedes 58510-20A02-C0iNZT260,ZRT260,261..CBU201404-201606

main58510-20A30-B0supersedes 58510-20A20-B0iZRT265..CBU201004-201110

main58510-20A30-E0supersedes 58510-20A20-E0iZRT265..CBU200705-201004

main58510-20A31-B0supersedes 58510-20A21-B0iZRT265..CBU201110-201212

main58510-20A31-C0supersedes 58510-20A21-C0iZRT265..CBU201212-201404

main58510-20A31-E0supersedes 58510-20A21-E0iZRT265..CBU201110-201212

main58510-20A32-C0supersedes 58510-20A22-C0iZRT265..CBU201404-201606

58511HMAT, FLOOR, FRONT RH

main58511-20880supersedes 58511-20870iZRT265..CBU200705-201004

main58511-20881supersedes 58511-20871iZRT265..CBU201305-201606

main58511-20A00supersedes 58511-20891iNZT260,ZRT260,261..CBU201004-201304

main58511-20A01supersedes 58511-20891iZRT261..CBU201606-202009

58512HMAT, FLOOR, FRONT LH

main58512-20320supersedes 58512-20310iNZT260,ZRT26#..CBU200705-200710

main58512-20321supersedes 58512-20311iNZT260,ZRT26#..CBU200710-201004

main58512-20322supersedes 58512-20312iNZT260,ZRT260,265..CBU201606

58514GMAT, FLOOR, REAR RH

main58514-20880iNZT260,ZRT26#..CBU200705-201004

main58514-20881iNZT260,ZRT26#..CBU201305-201606

58515FMAT, FLOOR, REAR LH

main58515-20030iNZT260,ZRT26#..CBU201004-201304

main58515-20031iZRT261..CBU201606-202009

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-B2×2iZRT261..CBU201606-202009

DK.GRAY

main90467-05164-C0×2iNZT260,ZRT26#..CBU200705-200812

BLACK

58540FCLIP(FOR REAR FLOOR CARPET)

main90467-07049-23×2iZRT261..CBU201610-202009

BLACK,TRIM0#,2#

main90467-07049-B7×2iNZT260,ZRT26#..CBU200705-201004

DK.GRAY,TRIM1#

main90467-07049-C0×2iNZT260,ZRT26#..CBU201212-201606

BLACK,TRIM1#,4#

main90467-07049-E5×2iNZT260,ZRT26#..CBU200705-201004

GREGE,TRIM4#

58570CCARPET ASSY, REAR FLOOR

main58570-20280-B0iNZT260,ZRT26#..CBU201004-201212

DK. GREY,TRIM1#

main58570-20280-C0iNZT260,ZRT260,265..CBU201606

BLACK,TRIM0#,2#

main58570-20280-E0iNZT260,ZRT26#..CBU200705-201004

GREGE,TRIM4#

8 parts on this diagram · 2 diagrams in section
