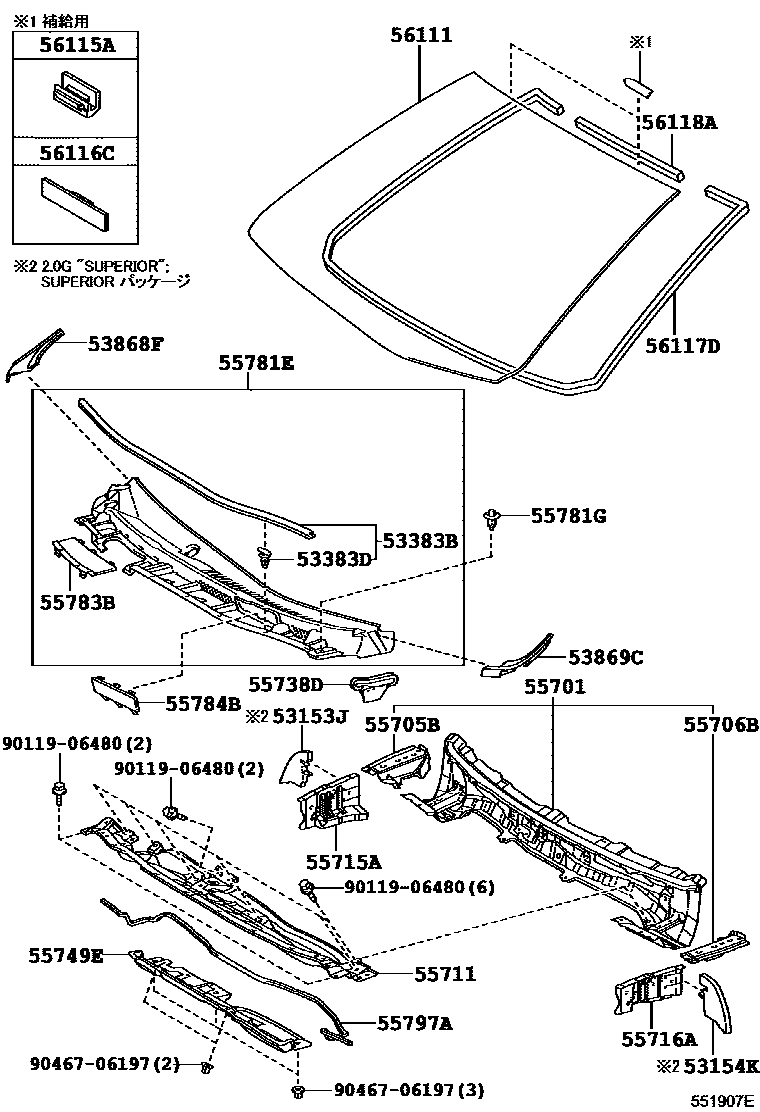

COWL PANEL & WINDSHIELD GLASS
53153JGUIDE, RADIATOR GRILLE SIDE AIR, RH
53154KGUIDE, RADIATOR GRILLE SIDE AIR, LH
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
53868FSEAL, FRONT FENDER TO COWL SIDE, NO.2 RH
53869CSEAL, FRONT FENDER TO COWL SIDE, NO.2 LH
55701PANEL SUB-ASSY, COWL
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55711PANEL, COWL TOP, OUTER
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
55749EPLATE, COWL TOP INSULATOR, NO.2
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2
55797ASEAL, COWL WATER EXTRACT
56111GLASS, WINDSHIELD
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117DDAM, WINDSHIELD GLASS ADHESIVE
56118ADAM, WINDOW GLASS ADHESIVE, NO.2
9011906480
main90119-06480
9046706197
main90467-06197
26 parts on this diagram · 1 diagram in section
