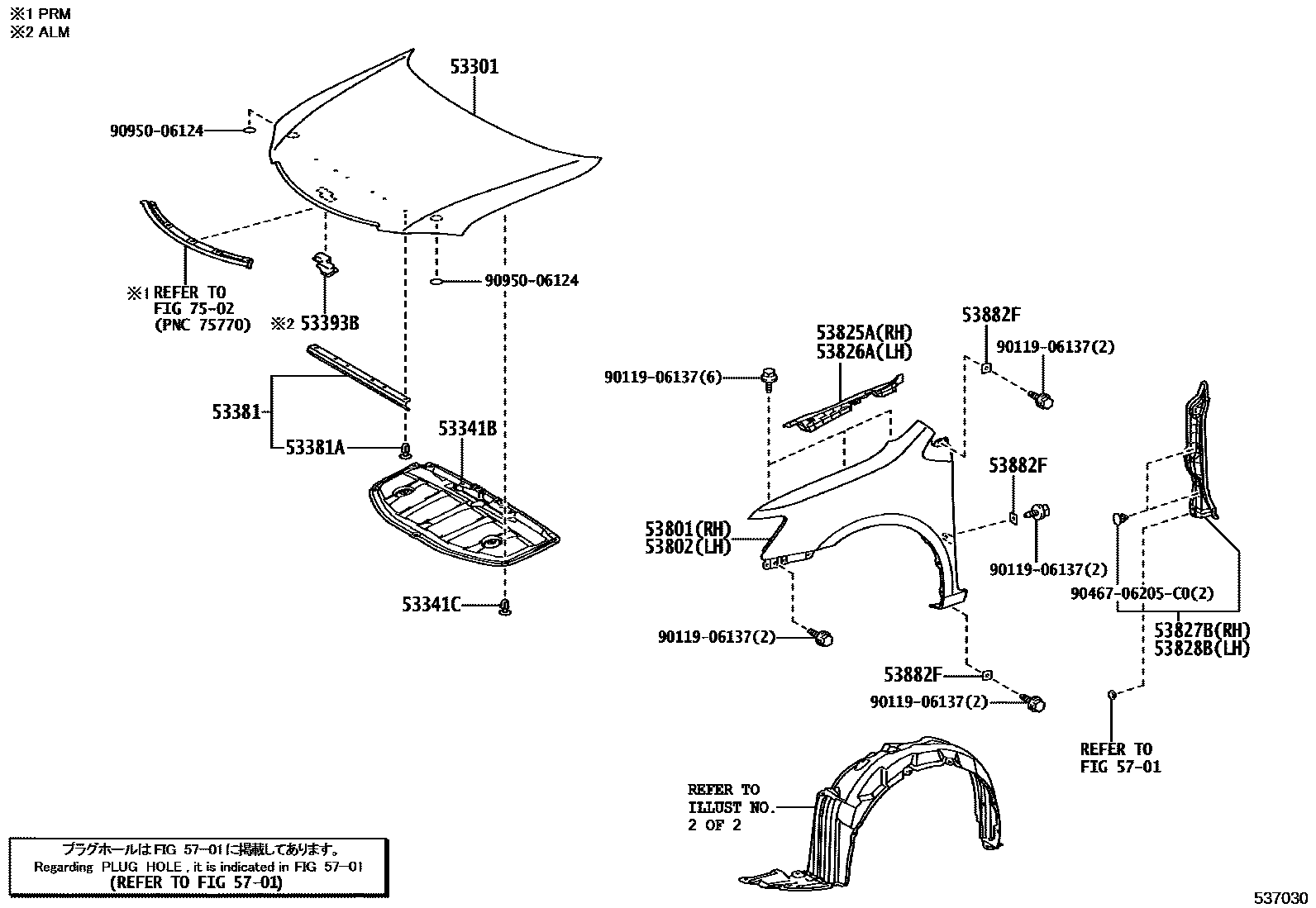

HOOD & FRONT FENDER

0001 1 0002 1�������� 0003 1 0004 1��������

53301HOOD SUB-ASSY

main53301-20630iNZT260,ZRT26#..PRM..CBU200705-201606

main53301-20640iNZT260,ZRT26#..ALN..CBU200705-201606

main53301-20650iZRT261..CBU201606-202009

53341BINSULATOR, HOOD

main53341-20350iNZT260,ZRT26#..CBU200705-201004

sub53341-20351

main53341-20351iNZT260,ZRT26#..CBU201004-201606

sub53341-20360

main53341-20360iNZT260,ZRT260,265..CBU201606-202009

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iNZT260,ZRT26#..CBU200705-202009

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-20170iNZT260,ZRT26#..CBU200705-202009

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iNZT260,ZRT260,265..CBU200705-202009

53393BPROTECTOR, HOOD, FRONT

main53393-20070iNZT260,ZRT26#..ALN..CBU200705-201606

53801FENDER SUB-ASSY, FRONT RH

main53811-20A00iNZT260,ZRT26#..PRM..CBU200705-201606

main53811-20A10iNZT260,ZRT26#..ALN..CBU200705-201606

main53811-2B870iZRT261..CBU201606-202009

53802FENDER SUB-ASSY, FRONT LH

main53812-20A00iNZT260,ZRT26#..PRM..CBU200705-201606

main53812-20A10iNZT260,ZRT26#..ALN..CBU200705-201606

main53812-2B860iZRT261..CBU201606-202009

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-20040iNZT260,ZRT26#..CBU200705-201606

main53825-20060iZRT261..CBU201606-202009

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-20040iNZT260,ZRT26#..CBU200705-201606

main53826-20060iZRT261..CBU201606-202009

53827BPROTECTOR, FRONT FENDER SIDE PANEL

main53827-20110iNZT260,ZRT26#..CBU200705-202009

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-20110iNZT260,ZRT26#..CBU200705-202009

53882FSEAL, FRONT FENDER

main53882-16030iNZT260,ZRT26#..CBU200705-202009

5701

7502

9011906137

main90119-06137

9046706205C0

main90467-06205C0

9095006124

main90950-06124

18 parts on this diagram · 4 diagrams in section
