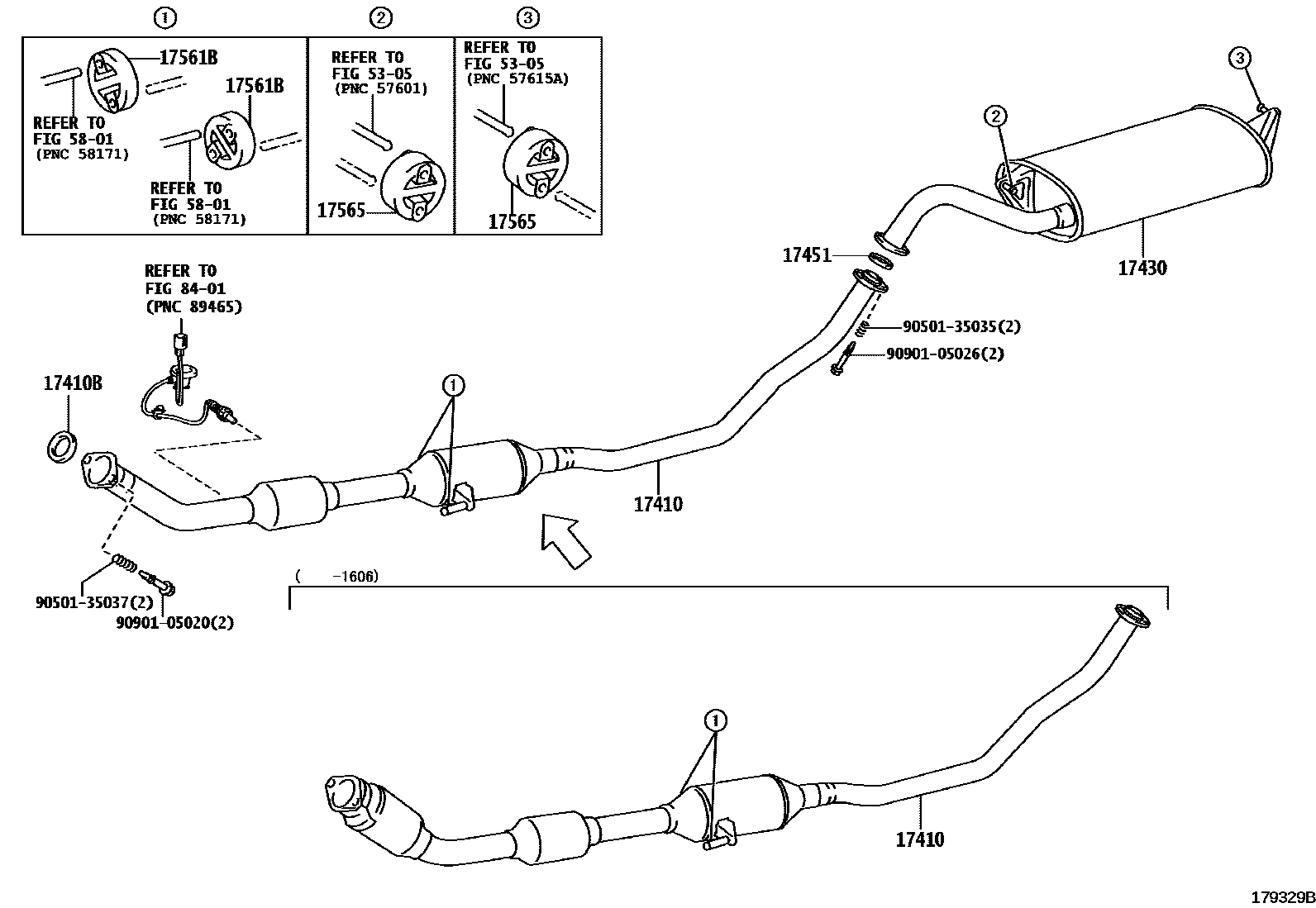

EXHAUST PIPE

0001 1 0002 1 0003 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-21820i1NZFE..NZT260..CBU200705-200910

sub17410-21821

main17410-21A60i1NZFE..NZT260..CBU200910-201203

sub17410-21A61

main17410-21A61i1NZFE..NZT260..CBU201204-201212

main17410-21D00i1NZFE..NZT260..CBU201212-201606

main17410-21D60i1NZFE..NZT260..CBU201606

main17410-37180i2ZRFE..ZRT265200705-201606

main17410-37240i2ZRFE..ZRT260200705-201004

sub17410-37241

main17410-37250i3ZRFAE..ZRT261..CBU200712-201004

sub17410-37251

main17410-37470i2ZRFAE..ZRT260201004-201203

sub17410-37471

main17410-37471i2ZRFAE..ZRT260201204-201212

main17410-37480i3ZRFAE..ZRT261..CBU201004-201203

sub17410-37481

main17410-37481i3ZRFAE..ZRT261..CBU201204-201212

main17410-37790i2ZRFAE..ZRT260201212-201606

main17410-37810i3ZRFAE..ZRT261..CBU201212-202009

17410BGASKET, EXHAUST PIPE

main17451-21070i1NZFE,2ZRFAE..NZT260,ZRT265..CBU200705-201606

main17451-28040i2ZRFAE,3ZRFAE..ZRT260,261..CBU200705-202009

sub17451-28041

17430PIPE ASSY, EXHAUST, TAIL

main17430-21740i1NZFE,2ZRFE,3ZRFAE..NZT260,ZRT260,261..CBU200705-201208

sub17430-21741

main17430-21741i1NZFE,2ZRFAE..NZT260,ZRT260..CBU201209-202009

main17430-37270i2ZRFE..ZRT265200705-201203

sub17430-37271

main17430-37271i2ZRFAE..ZRT265201204-201606

17451GASKET, EXHAUST PIPE

main17451-21080i2ZRFAE..ZRT265200705-201606

main17451-23040i1NZFE,2ZRFE..NZT260,ZRT260..CBU200705-200707

sub17451-23041

main17451-23041i1NZFE,2ZRFAE,3ZRFAE..NZT260,ZRT260,261..CBU200708-201009

sub17451-23042

main17451-23042i3ZRFAE..ZRT261..CBU201010-202009

sub17451-23043

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-22030i3ZRFAE..ZRT261..CBU200705-202009

main17565-31040i2ZRFE..ZRT265200705-201606

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22040i1NZFE,2ZRFE,3ZRFAE..NZT260,ZRT260,261..CBU200705-202009

5305

5801

8401

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

13 parts on this diagram · 3 diagrams in section
