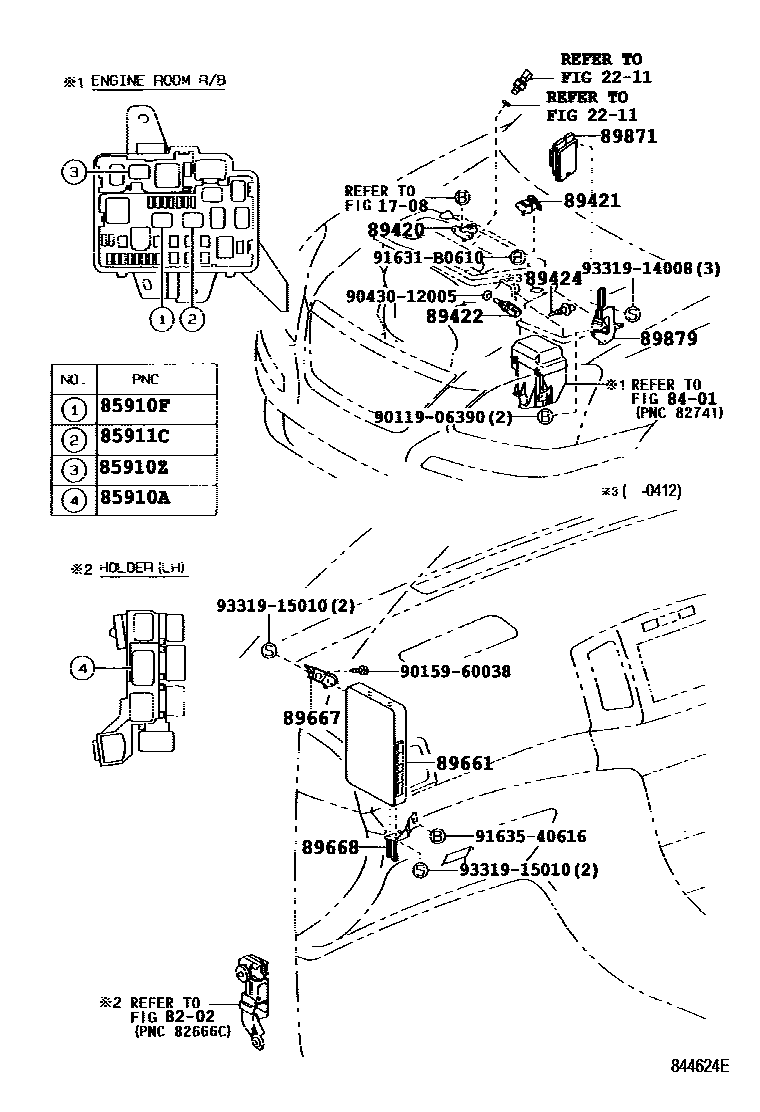

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

1708

2211

8202

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02022iAZT240,NZT240,ZZT24#200112-200611

main90987-02027iAZT240,NZT240,ZZT24#200612

85910FRELAY, COMPUTER (FOR EFI)

main90987-02022iAZT240,NZT240,ZZT24#200112-200611

main90987-02027iAZT240,NZT240,ZZT24#200612

85910ZRELAY, INJECTION (FOR EFI)

main90987-02022iAZT240200112-200611

main90987-02027iAZT240200612

85911CRELAY, EFI 2

main90987-02022iAZT240200112-200611

main90987-02027iAZT240200612

89420SENSOR ASSY, VACUUM

main89421-20190iAZT240200112-200705

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-20350iAZT240200112-200412

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iAZT240200412

main89422-35010iAZT240,NZT240,ZZT24#200112-200412

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iAZT240200112-200412

89661COMPUTER, ENGINE CONTROL

main89661-20A90iNZT240200412

main89661-20B00iZZT240200412

main89661-20B10iZZT245200412

main89661-20B20iAZT240200412

main89661-2G320iNZT240200112-200409

main89661-2G321iNZT240200409-200412

main89661-2G330iZZT240200112-200412

main89661-2G340iZZT245200112-200412

main89661-2G350iAZT240200112-200412

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-20420iAZT240,NZT240,ZZT24#200112-200412

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-20370iNZT240,ZZT24#200112-200412

main89668-20380iAZT240200112-200412

main89668-21040iZZT240200412

89871DRIVER, INJECTOR

main89871-20040iAZT240200112-200412

main89871-28010iAZT240200412

89879BRACKET, INJECTOR DRIVER

main89879-20100iAZT240200112-200412

9011906390

main90119-06390

9015960038

main90159-60038

9043012005

main90430-12005

91631B0610

main91631-B0610

9163540616

main91635-40616

9331914008

main93319-14008

9331915010

main93319-15010

24 parts on this diagram · 3 diagrams in section
