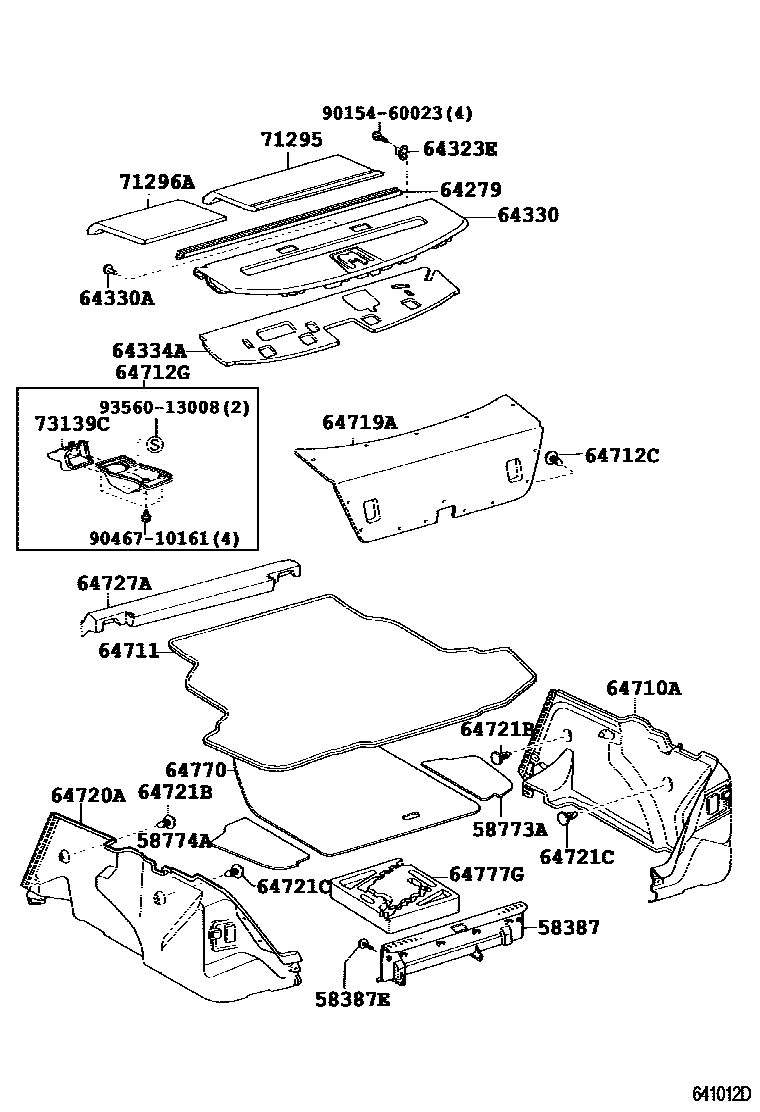

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
BLACK,TRIM1#
MD.NEUTRAL BONE,TRIM0#
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
58773ACOVER, LUGGAGE COMPARTMENT SIDE, RH
58774ACOVER, LUGGAGE COMPARTMENT SIDE, LH
64279PROTECTOR, ROOM PARTITION
64323ECLAMP, PACKAGE TRAY TRIM
64330PANEL ASSY, PACKAGE TRAY TRIM
IVORY,TRIM0#
DARK GRAY,TRIM1#
FAWN,TRIM0#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64334APAD, PACKAGE TRAY TRIM
64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH
BLACK,TRIM1#
IVORY,TRIM0#
64711MAT, LUGGAGE COMPARTMENT FLOOR
BLACK,TRIM1#
IVORY,TRIM0#
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
64712GGARNISH, LUGGAGE COMPARTMENT, UPPER
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK
BLACK,TRIM0#,1#
BLACK,TRIM0#,1#
BLACK
64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH
BLACK,TRIM1#
IVORY,TRIM0#
64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1
64721CCLIP(LUGGAGE COMPARTMENT)
64727APAD, LUGGAGE COMPARTMENT TRIM, INNER
64770COVER ASSY, SPARE WHEEL
64777GCUSHION, SPARE WHEEL
71295PLATE, REAR SEATBACK, UPPER RH
IVORY,TRIM0#
DARK GRAY,TRIM1#
FAWN,TRIM0#
71296APLATE, REAR SEATBACK, UPPER LH
IVORY,TRIM0#
DARK GRAY,TRIM1#
FAWN,TRIM0#
73139CCOVER, REAR SEAT BELT
9015460023
main90154-60023
9046710161
main90467-10161
9356013008
main93560-13008
26 parts on this diagram · 1 diagram in section
