E
EPC Data

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

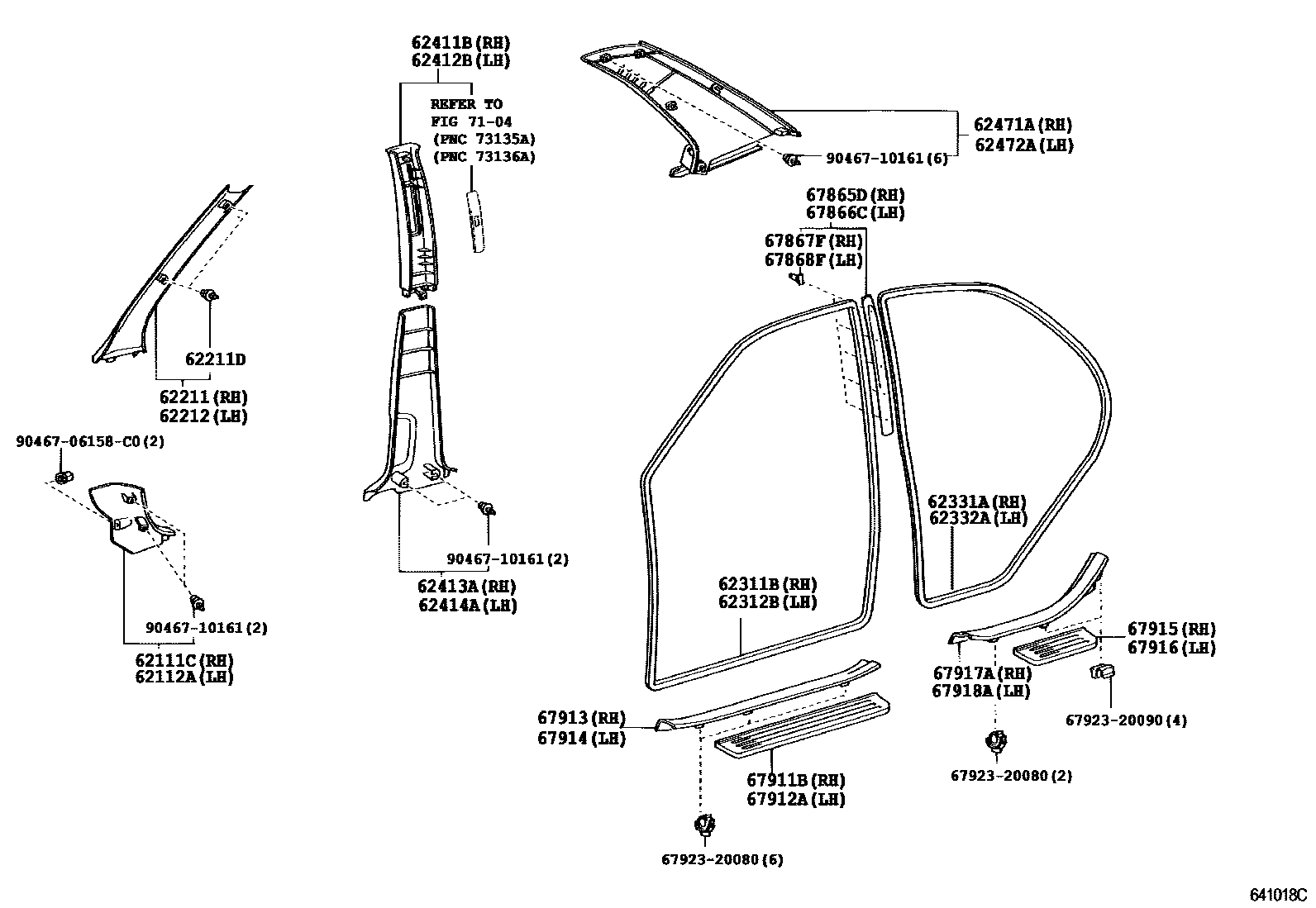

Parts diagram
62111CBOARD, COWL SIDE TRIM, RH
main62111-20330-A0i200412-200705
IVORY,TRIM0#
sub62111-20330
main62111-20330-B0i200112-200705
MD.GRAY,TRIM1#
sub62111-20330
main62111-20330-E0i200112-200412
MD.NEUTRAL BONE,TRIM0#
sub62111-20330
62112ATRIM SUB-ASSY, COWL SIDE, LH
main62112-20400-A0i200412-200705
IVORY,TRIM0#
sub62112-20400
main62112-20400-B0i200112-200705
MD.GRAY,TRIM1#
sub62112-20400
main62112-20400-E0i200112-200412
MD.NEUTRAL BONE,TRIM0#
sub62112-20400
62211GARNISH, FRONT PILLAR, RH
main62210-20110-A0i200112-200301
IVORY,TRIM0#
sub62210-20140
main62210-20110-B0i200112-200301
LT.GRAY,TRIM1#
sub62210-20140
main62210-20130-A0i200412-200705
main62210-20130-B0i200412-200705
main62210-20140-A1i200301-200705
IVORY,TRIM0#
sub62210-20140
main62210-20140-B1i200301-200705
LT.GRAY,TRIM1#
sub62210-20140
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
main62217-20010i200412
main90467-10188i200112-200412
62212GARNISH, FRONT PILLAR, LH
main62220-20110-A0i200112-200301
IVORY,TRIM0#
sub62220-20130
main62220-20110-B0i200112-200301
LT.GRAY,TRIM1#
sub62220-20130
main62220-20130-A1i200301-200705
IVORY,TRIM0#
sub62220-20130
main62220-20130-B1i200301-200705
LT.GRAY,TRIM1#
sub62220-20130
main62220-20140-A0i200412-200705
main62220-20140-B0i200412-200705
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-20180-A1i200412-200705
sub62311-20181
main62311-20180-B0i200112-200705
sub62311-20181
main62311-20180-E0i200112-200412
sub62311-20181
main62311-20181-A0i200412-200705
sub62311-20181
main62311-20181-B1i200112-200705
sub62311-20181
main62311-20181-E1i200112-200412
sub62311-20181
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-20180-A1i200412-200705
sub62312-20181
main62312-20180-B0i200112-200705
sub62312-20181
main62312-20180-E0i200112-200412
sub62312-20181
main62312-20181-A0i200412-200705
sub62312-20181
main62312-20181-B1i200112-200705
sub62312-20181
main62312-20181-E1i200112-200412
sub62312-20181
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-20170-A1i200412-200705
sub62331-20171
main62331-20170-B0i200112-200705
sub62331-20171
main62331-20170-E0i200112-200412
sub62331-20171
main62331-20171-A0i200412-200705
sub62331-20171
main62331-20171-B1i200112-200705
sub62331-20171
main62331-20171-E1i200112-200412
sub62331-20171
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-20170-A1i200412-200705
sub62332-20171
main62332-20170-B0i200112-200705
sub62332-20171
main62332-20170-E0i200112-200412
sub62332-20171
main62332-20171-A0i200412-200705
IVORY,TRIM0#
sub62332-20171
main62332-20171-B1i200112-200412
sub62332-20171
main62332-20171-B1i200412-200705
MD.GRAY,TRIM1#
sub62332-20171
main62332-20171-E1i200112-200412
sub62332-20171
62411BGARNISH, CENTER PILLAR, UPPER RH
main62411-20430-A0i200112-200301
IVORY,TRIM0#
sub62411-20440
main62411-20430-B0i200112-200301
LT.GRAY,TRIM1#
sub62411-20440
main62411-20440-A1i200301-200705
IVORY,TRIM0#
sub62411-20440
main62411-20440-B1i200301-200705
LT.GRAY,TRIM1#
sub62411-20440
main62411-20450-A0i200412-200705
main62411-20450-B0i200412-200705
62412BGARNISH, CENTER PILLAR, UPPER LH
main62412-20430-A0i200112-200301
IVORY,TRIM0#
sub62412-20440
main62412-20430-B0i200112-200301
LT.GRAY,TRIM1#
sub62412-20440
main62412-20440-A2i200301-200705
IVORY,TRIM0#
sub62412-20440
main62412-20440-B2i200301-200705
LT.GRAY,TRIM1#
sub62412-20440
main62412-20450-A0i200412-200705
main62412-20450-B0i200412-200705
62413AGARNISH, CENTER PILLAR, LOWER RH
main62030-20010-A0i200412-200705
IVORY,TRIM0#
sub62030-20010
main62030-20010-B0i200112-200705
MD.GRAY,TRIM1#
sub62030-20010
main62030-20010-E0i200112-200412
MD.NEUTRAL BONE,TRIM0#
sub62030-20010
62414AGARNISH, CENTER PILLAR, LOWER LH
main62040-20010-A0i200412-200705
IVORY,TRIM0#
sub62040-20010
main62040-20010-B0i200112-200705
MD.GRAY,TRIM1#
sub62040-20010
main62040-20010-E0i200112-200412
MD.NEUTRAL BONE,TRIM0#
sub62040-20010
62471AGARNISH, ROOF SIDE, INNER RH
main62470-20250-A0i200112-200301
IVORY,TRIM0#
sub62470-20260
main62470-20250-B0i200112-200301
LT.GRAY,TRIM1#
sub62470-20260
main62470-20260-A1i200301-200412
IVORY,TRIM0#
sub62470-20260
main62470-20260-A2i200412-200705
IVORY,TRIM0#
sub62470-20260
main62470-20260-B1i200301-200705
LT.GRAY,TRIM1#
sub62470-20260
main62470-20270-A0i200412-200705
main62470-20270-B0i200412-200705
62472AGARNISH, ROOF SIDE, INNER LH
main62480-20250-A0i200112-200301
IVORY,TRIM0#
sub62480-20260
main62480-20250-B0i200112-200301
LT.GRAY,TRIM1#
sub62480-20260
main62480-20260-A1i200301-200412
IVORY,TRIM0#
sub62480-20260
main62480-20260-A2i200412-200705
IVORY,TRIM0#
sub62480-20260
main62480-20260-B1i200301-200705
LT.GRAY,TRIM1#
sub62480-20260
main62480-20270-A0i200412-200705
main62480-20270-B0i200412-200705
67865DWEATHERSTRIP, CENTER PILLAR UPPER END, RH
main67865-20020i200112-200203
sub67865-20021
main67865-20021i200203-200412
67866CWEATHERSTRIP, CENTER PILLAR UPPER END, LH
main67866-20020i200112-200203
sub67866-20021
main67866-20021i200203-200412
67867FRETAINER, DOOR WEATHERSTRIP, RH
main67867-12150i200112-200412
67868FRETAINER, DOOR WEATHERSTRIP, LH
main67867-12150i200112-200412
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
main67911-47020i200611
sub67911-47021
main67911-63010-C0i200412-200610
BLACK
sub67911-47020
main67911-63010-C0i200112-200412
BLACK,TRIM0#,1#
sub67911-47020
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
main67911-47020i200611
sub67911-47021
main67911-63010-C0i200412-200610
BLACK
sub67911-47020
main67911-63010-C0i200112-200412
BLACK,TRIM0#,1#
sub67911-47020
67913PLATE, FRONT DOOR SCUFF, RH
main67913-20310-A0i200412-200705
IVORY,TRIM0#
sub67913-20310
sub67913-21030
main67913-20310-B0i200112-200705
MD.GRAY,TRIM1#
sub67913-20310
sub67913-21030
main67913-20310-E0i200112-200412
MD.NEUTRAL BONE,TRIM0#
sub67913-20310
sub67913-21030
67914PLATE, FRONT DOOR SCUFF, LH
main67914-20240-A0i200412-200705
IVORY,TRIM0#
sub67914-20240
main67914-20240-B0i200112-200705
MD.GRAY,TRIM1#
sub67914-20240
main67914-20240-E0i200112-200412
MD.NEUTRAL BONE,TRIM0#
sub67914-20240
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
main67915-47020i200611
sub67915-47021
main67915-63010-C0i200112-200412
BLACK,TRIM0#,1#
sub67915-47020
main67915-63010-C0i200412-200610
BLACK
sub67915-47020
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
main67915-47020i200611
sub67915-47021
main67915-63010-C0i200112-200412
BLACK,TRIM0#,1#
sub67915-47020
main67915-63010-C0i200412-200610
BLACK
sub67915-47020
67917APLATE, REAR DOOR SCUFF, RH
main67917-20240-A0i200412-200705
IVORY,TRIM0#
sub67917-20240
main67917-20240-B0i200112-200705
MD.GRAY,TRIM1#
sub67917-20240
main67917-20240-E0i200112-200412
MD.NEUTRAL BONE,TRIM0#
sub67917-20240
67918APLATE, REAR DOOR SCUFF, LH
main67918-20200-A0i200412-200705
IVORY,TRIM0#
sub67918-20200
main67918-20200-B0i200112-200705
MD.GRAY,TRIM1#
sub67918-20200
main67918-20200-E0i200112-200412
MD.NEUTRAL BONE,TRIM0#
sub67918-20200
7104
6792320080CUSHION, FRONT DOOR STIFFENER, NO.1
main67923-20080
6792320090CUSHION, FRONT DOOR STIFFENER, NO.1
main67923-20090
9046706158C0
main90467-06158C0
9046710161
main90467-10161

32 parts on this diagram · 2 diagrams in section
