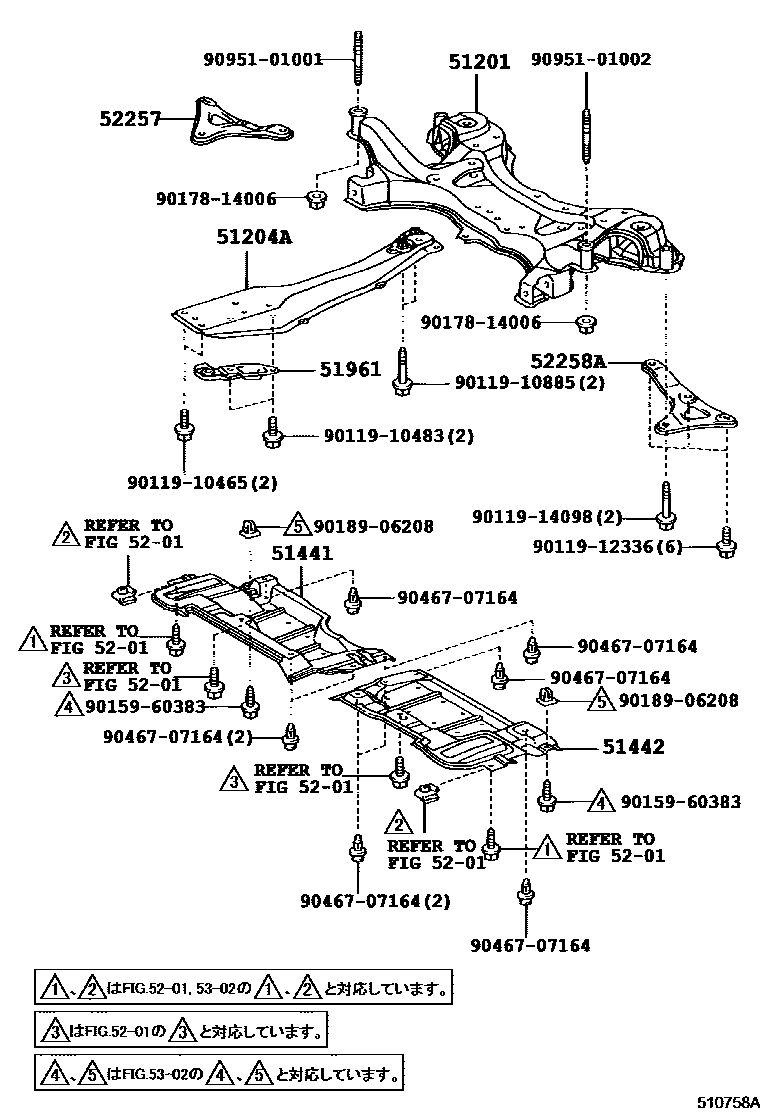

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-20360iAZT240,NZT240,ZZT240200112-200303

main51201-20361iAZT240,NZT240,ZZT240200303-200412

sub51201-0M010

sub51201-20362

main51201-20370iZZT245200112-200412

sub51201-20371

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-44010iAZT240,NZT240,ZZT240200112-200412

main51204-44020iZZT245200412

51441COVER, ENGINE UNDER, NO.1

main51441-20440iAZT240,NZT240,ZZT24#200112-200412

51442COVER, ENGINE UNDER, NO.2

main51442-20560iAZT240,NZT240,ZZT24#200112-200412

51961HOOK, NO.1

main51963-32040iAZT240,NZT240,ZZT24#200412

5201

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-20070iAZT240,NZT240,ZZT24#200112-200412

sub52257-20071

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-20070iAZT240,NZT240,ZZT24#200112-200412

sub52258-20071

9011910465

main90119-10465

9011910483

main90119-10483

9011910885

main90119-10885

9011912336

main90119-12336

9011914098

main90119-14098

9015960383

main90159-60383

9017814006

main90178-14006

9018906208

main90189-06208

9046707164

main90467-07164

9095101001

main90951-01001

9095101002

main90951-01002

19 parts on this diagram · 2 diagrams in section
