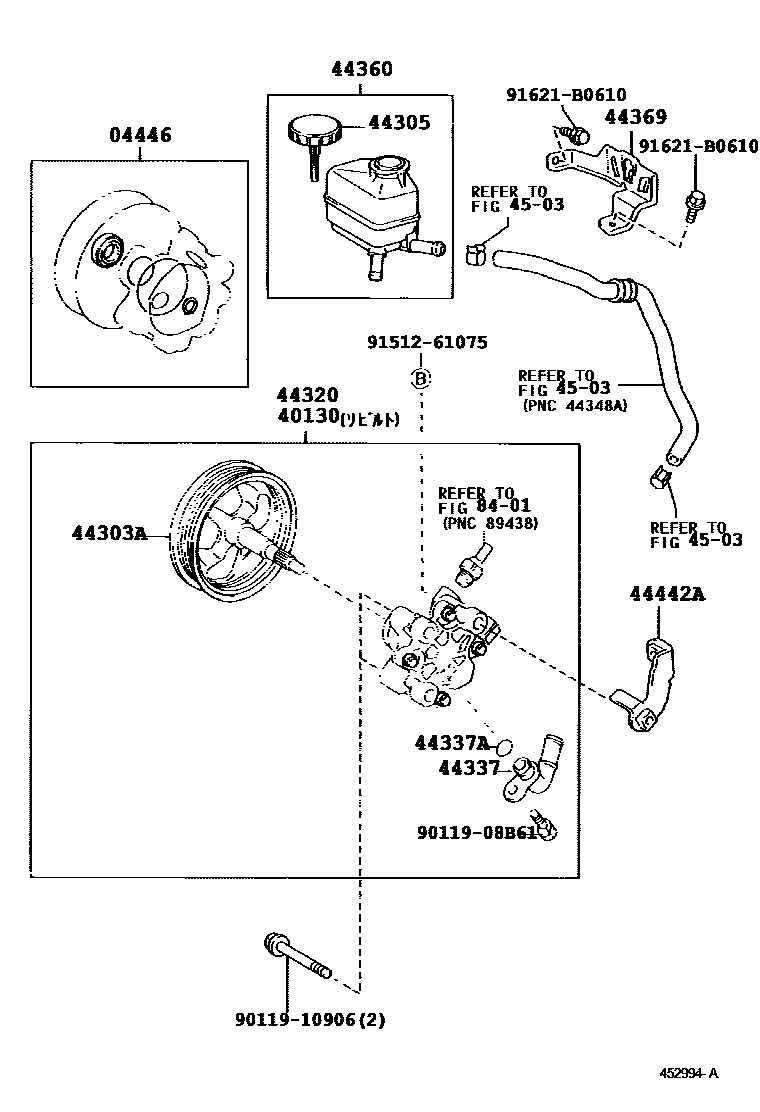

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1

04446GASKET KIT, POWER STEERING PUMP

main04446-32050iAZT240,NZT240,ZZT24#¥970200112-200412

40130PUMP ASSY,VANE REBUILT

main40130-20850iNZT240¥66,500200112-200412

sub44310-20850¥94,500

main40130-20851iNZT240¥66,500200412

sub44310-20851¥94,600

main40130-20860iZZT24#¥66,500200112-200412

sub44310-20860¥94,600

main40130-20870iAZT240¥66,500200112-200412

sub44310-20870¥94,600

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-28010iAZT240¥5,400200112-200412

main44303-32010iZZT24#¥8,200200112-200412

main44303-52020iNZT240¥8,100200112-200412

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-20041iAZT240,NZT240,ZZT24#¥2,240200112-200412

sub44305-20050¥2,230

44320PUMP ASSY, VANE

main44310-20850iNZT240¥94,500200112-200311

main44310-20851iNZT240¥94,600200311-200412

main44310-20860iZZT24#¥94,600200112-200412

main44310-20870iAZT240¥94,600200112-200412

44337UNION, POWER STEERING SUCTION PORT

main44337-12120iNZT240¥1,870200112-200311

main44337-20080iNZT240¥1,150200311-200412

main44337-32110iAZT240,ZZT24#¥1,430200112-200412

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11020iAZT240,NZT240,ZZT24#¥140200112-200412

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-20150iAZT240,NZT240,ZZT24#¥10,400200112-200412

44369BRACKET, OIL RESERVOIR, NO.1

main44390-20060iAZT240,NZT240,ZZT24#¥1,210200112-200412

44442ABRACKET, VANE PUMP, REAR

main44442-12040iZZT24#¥670200112-200412

main44442-20050iAZT240¥520200112-200209

sub44442-21010¥510

main44442-21010iAZT240¥510200209-200412

main44442-52020iNZT240¥850200112-200412

4503

8401

9011908B61

main90119-08B61¥60

9011910906

main90119-10906¥270

9151261075

main91512-61075¥220

91621B0610

main91621-B0610¥120

16 parts on this diagram · 3 diagrams in section
