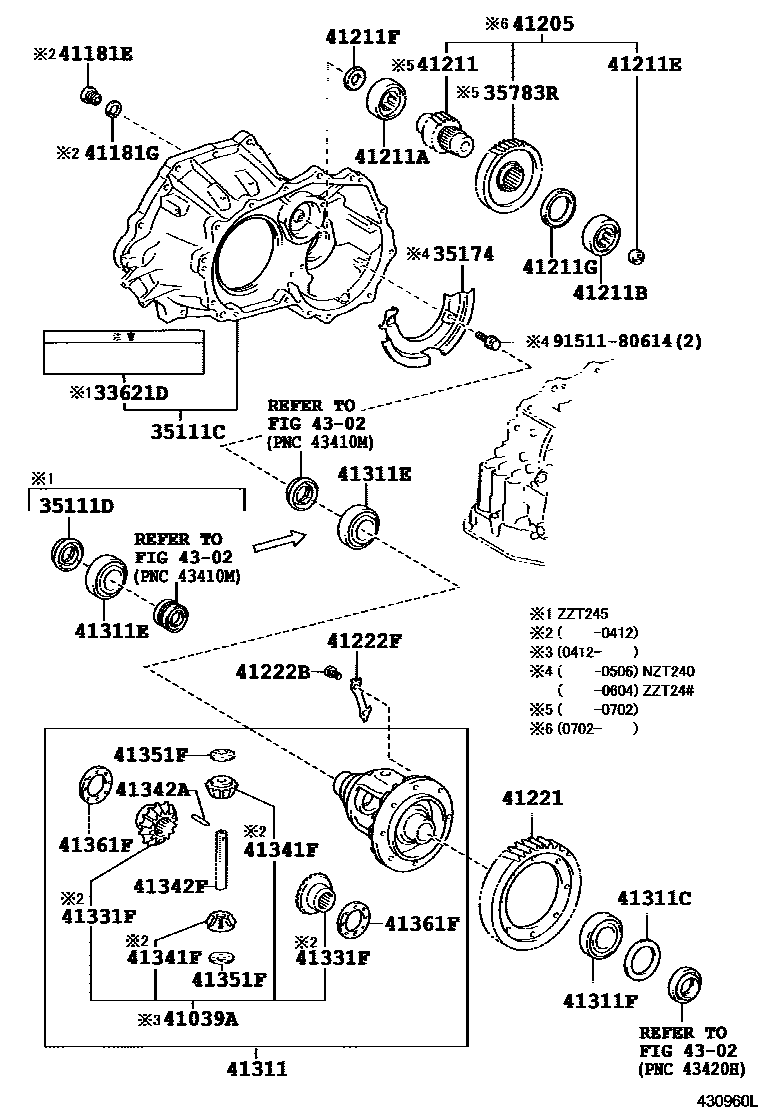

FRONT AXLE HOUSING & DIFFERENTIAL

33621DLABEL, TRANSAXLE OIL INFORMATION

main33621-12150iZZT245200412

35111CHOUSING, TRANSAXLE

main35105-20160iZZT240200112-200412

main35105-20161iZZT240200601

main35105-52070iNZT240200112-200412

main35105-52071iNZT240200506

main35105-63020iZZT245200412

35111DSEAL, OIL (FOR TRANSAXLE HOUSING)

main90311-49002iZZT245200112-200412

35174SEPARATOR, TRANSAXLE HOUSING OIL

main35174-20010iZZT240200112-200412

main35174-52030iNZT240200412-200506

main35174-63010iZZT245200112-200412

35783RGEAR, COUNTER DRIVEN

main35783-52020iNZT240,ZZT24#200112-200412

sub41205-52011

sub41205-52031

41039AGEAR KIT, DIFFERENTIAL

main41039-12010iNZT240200412

main41039-32020iZZT24#200412

sub41039-32021

41181EPLUG (FOR FRONT DIFFERENTIAL DRAIN)

main90341-18021iNZT240,ZZT24#200112-200412

41181GGASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG)

main90430-18008iNZT240,ZZT24#200112-200412

41205PINION SUB-ASSY, DIFFERENTIAL DRIVE

main41205-52021iNZT240,ZZT24#200702

41211PINION, DIFFERENTIAL DRIVE

main41211-52040iNZT240,ZZT24#200112-200412

41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

main90365-35004iNZT240,ZZT24#200112-200412

41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)

main90365-35003iNZT240,ZZT24#200112-200412

41211EPLUG(FOR DIFFERENTIAL DRIVE PINION)

main90331-17017iNZT240,ZZT24#200412

41211FBEARING, THRUST NEEDLE ROLLER(FOR FRONT DRIVE PINION RH)

main90374-18005iNZT240,ZZT24#200412

41211GBEARING, THRUST NEEDLE ROLLER(FOR FRONT DRIVE PINION LH)

main90374-45001iNZT240,ZZT24#200112-200412

41221GEAR, FRONT DIFFERENTIAL RING

main41221-52060iZZT240200412

sub41221-52061

main41221-52090iNZT240,ZZT245200112-200412

sub41221-52091

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11003×8iNZT240,ZZT24#200112-200412

41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-32010×4iNZT240,ZZT24#200112-200412

41311CASE, FRONT DIFFERENTIAL

main41301-12210iZZT240200301-200412

main41301-32071iZZT240200112-200301

main41301-52070iNZT240200412

main41301-63020iZZT245200112-200412

41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)

main90564-49001iNZT240,ZZT24#200412

main90564-49002iNZT240,ZZT24#200412

main90564-49003iNZT240,ZZT24#200412

main90564-49004iNZT240,ZZT24#200412

main90564-49005iNZT240,ZZT24#200112-200412

main90564-49006iNZT240,ZZT24#200412

main90564-49007iNZT240,ZZT24#200412

main90564-49008iNZT240,ZZT24#200412

main90564-49009iNZT240,ZZT24#200412

main90564-49010iNZT240,ZZT24#200112-200412

main90564-49011iNZT240,ZZT24#200412

main90564-49012iNZT240,ZZT24#200412

main90564-49013iNZT240,ZZT24#200412

main90564-49014iNZT240,ZZT24#200112-200412

main90564-49015iNZT240,ZZT24#200412

main90564-49016iNZT240,ZZT24#200112-200412

main90564-49017iNZT240,ZZT24#200112-200412

main90564-49018iNZT240,ZZT24#200412

main90564-49019iNZT240,ZZT24#200112-200412

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90366-40016iNZT240,ZZT240200112-200412

main90366-50045iZZT245200112-200412

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90366-44001iNZT240,ZZT24#200412

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-12011×2iNZT240200112-200412

main41331-32010×2iZZT24#200112-200412

41341FPINION, FRONT DIFFERENTIAL

main41341-12030×2iNZT240200112-200412

main41341-30011×2iZZT24#200112-200412

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-06058iNZT240,ZZT24#200112-200412

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-20060iNZT240200112-200412

main41342-32020iZZT240200412

sub41342-52060

main41342-32030iZZT245200112-200412

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-12020×2iNZT240200412

main41351-32010×2iZZT24#200112-200412

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-17010×2iNZT240,ZZT24#200112-200412

main41361-17020×2iNZT240,ZZT24#200112-200412

main41361-17030×2iNZT240,ZZT24#200412

main41361-17040×2iNZT240,ZZT24#200112-200412

main41361-17050×2iNZT240,ZZT24#200112-200412

main41361-17060×2iNZT240,ZZT24#200412

4302

9151180614

main91511-80614

30 parts on this diagram · 1 diagram in section
