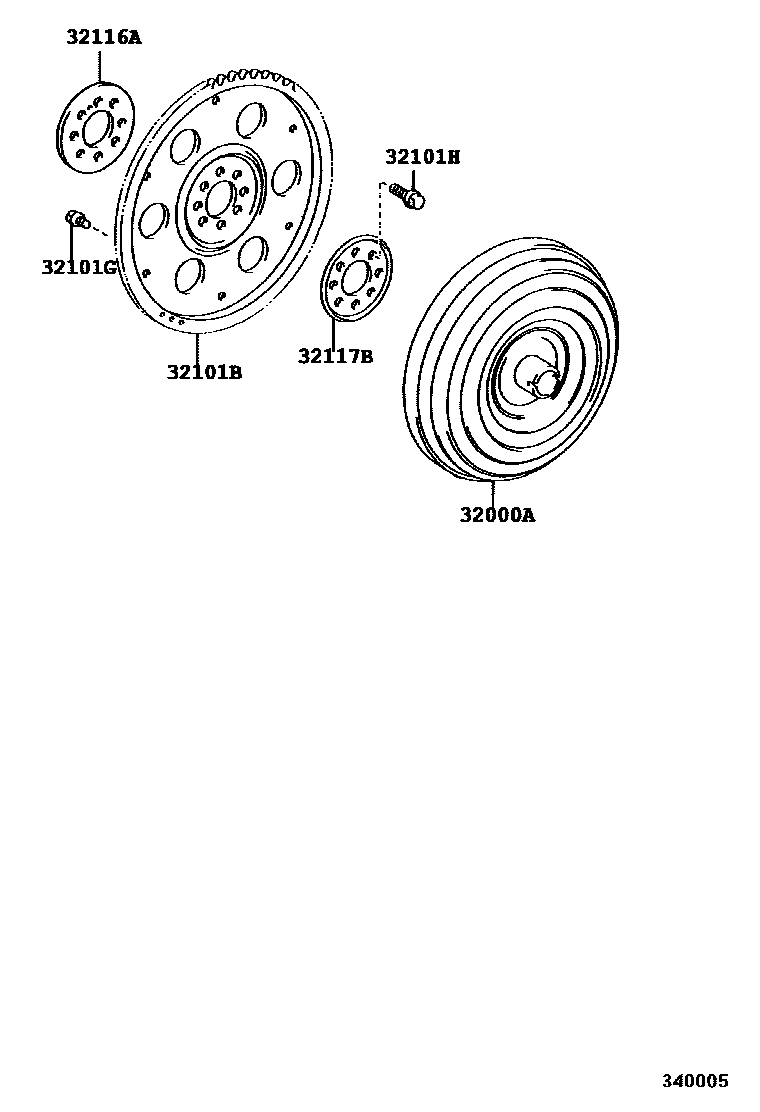

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-63020iAZT240200112-200412

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-28040iAZT240200112-200412

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iAZT240200112-200412

main90119-09025iAZT240200112-200412

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12184iAZT240200112-200412

sub90105-12384

32116ASPACER, DRIVE PLATE, FRONT

main32116-20050iAZT240200112-200412

32117BSPACER, DRIVE PLATE, REAR

main32117-20060iAZT240200112-200412

6 parts on this diagram · 1 diagram in section
