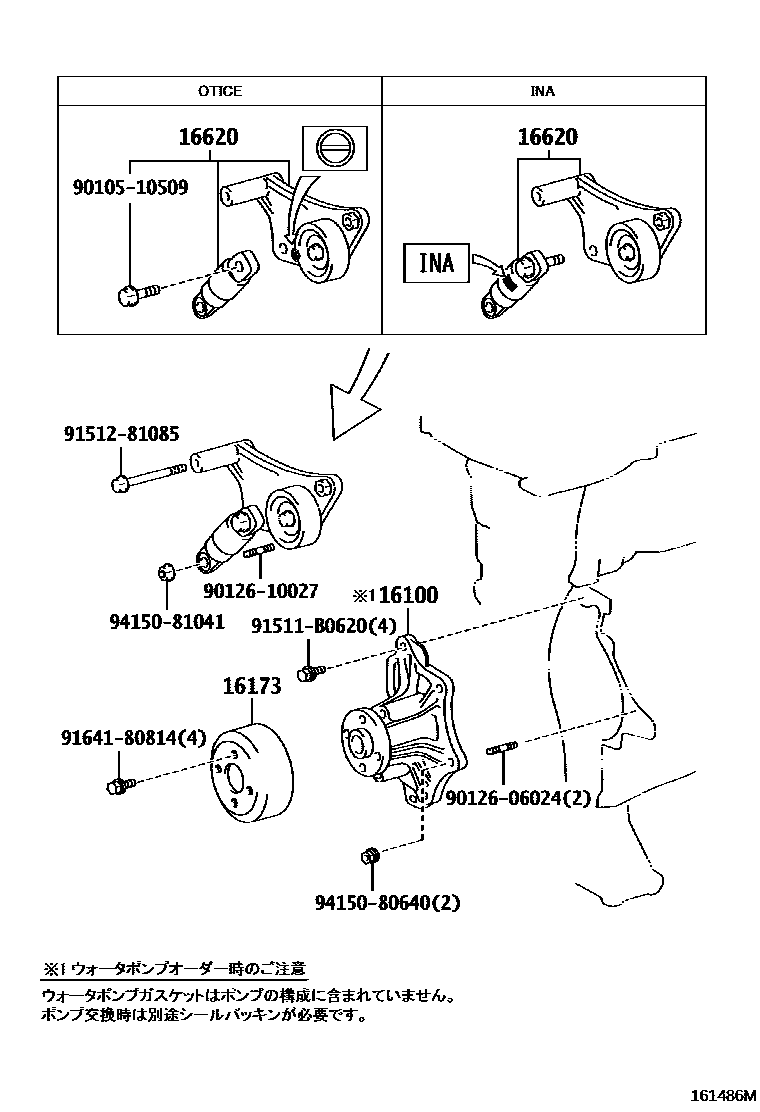

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-28040i1AZFSE..AZT240200112-200412

main16100-28041i1AZFSE..AZT240200701

main16100-29155i1NZFE..NZT240200112-200412

main16100-29156i1NZFE..NZT240200506

sub16100-29157

main16100-29175i1ZZFE..ZZT24#200112-200311

main16100-29415i1ZZFE..ZZT24#200412

16173PULLEY, WATER PUMP

main16173-21020i1NZFE..NZT240200112-200412

sub16173-21021

main16173-28020i1AZFSE..AZT240200112-200412

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0W110i1AZFSE..AZT240200605-200608

main16620-22012i1ZZFE..ZZT24#200412-200609

main16620-22013i1ZZFE..ZZT24#200609

sub16620-0W093

main16620-28011i1AZFSE..AZT240200112-200412

main16620-28070i1AZFSE..AZT240200608-200703

sub16620-28012

main16620-28090i1AZFSE..AZT240200703-200705

9010510509

main90105-10509

9012606024

main90126-06024

9012610027

main90126-10027

91511B0620

main91511-B0620

9151281085

main91512-81085

9164180814

main91641-80814

9415080640

main94150-80640

9415081041

main94150-81041

11 parts on this diagram · 3 diagrams in section
