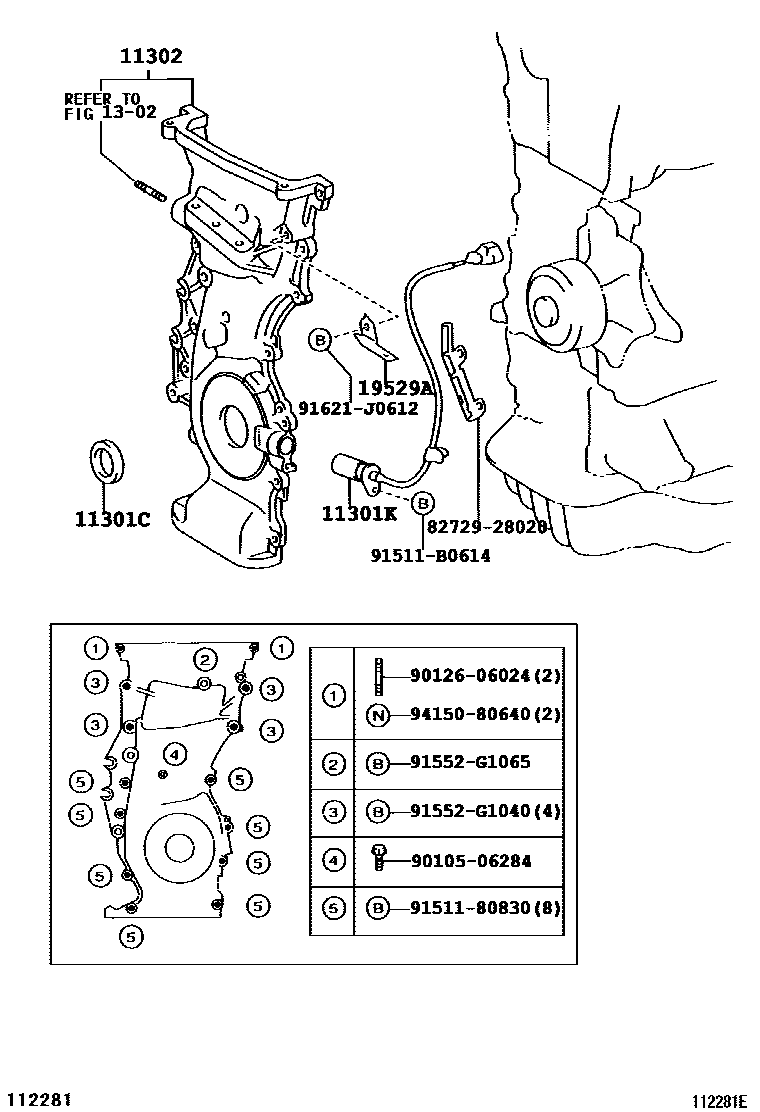

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-38078i1AZFSE..AZT240200112-200212

main90311-38084i1AZFSE..AZT240200212-200303

main90311-38089i1AZFSE..AZT240200412-200705

11301KSENSOR, CRANK POSITION

main90919-05030i1ZZFE..ZZT24#200112-200412

main90919-05047i1AZFSE..AZT240200112-200412

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-28080i1AZFSE..AZT240200112-200208

main11310-28081i1AZFSE..AZT240200412-200508

main11310-28082i1AZFSE..AZT240200508

main11321-0D030i1ZZFE..ZZT24#200412

main11321-22021i1ZZFE..ZZT24#200206-200412

1302

19529ACLAMP

main19529-28010i1AZFSE..AZT240200112-200412

8272928020

main82729-28020

9010506284

main90105-06284

9012606024

main90126-06024

9151180830

main91511-80830

91511B0614

main91511-B0614

91552G1040

main91552-G1040

91552G1065

main91552-G1065

91621J0612

main91621-J0612

9415080640

main94150-80640

14 parts on this diagram · 2 diagrams in section
