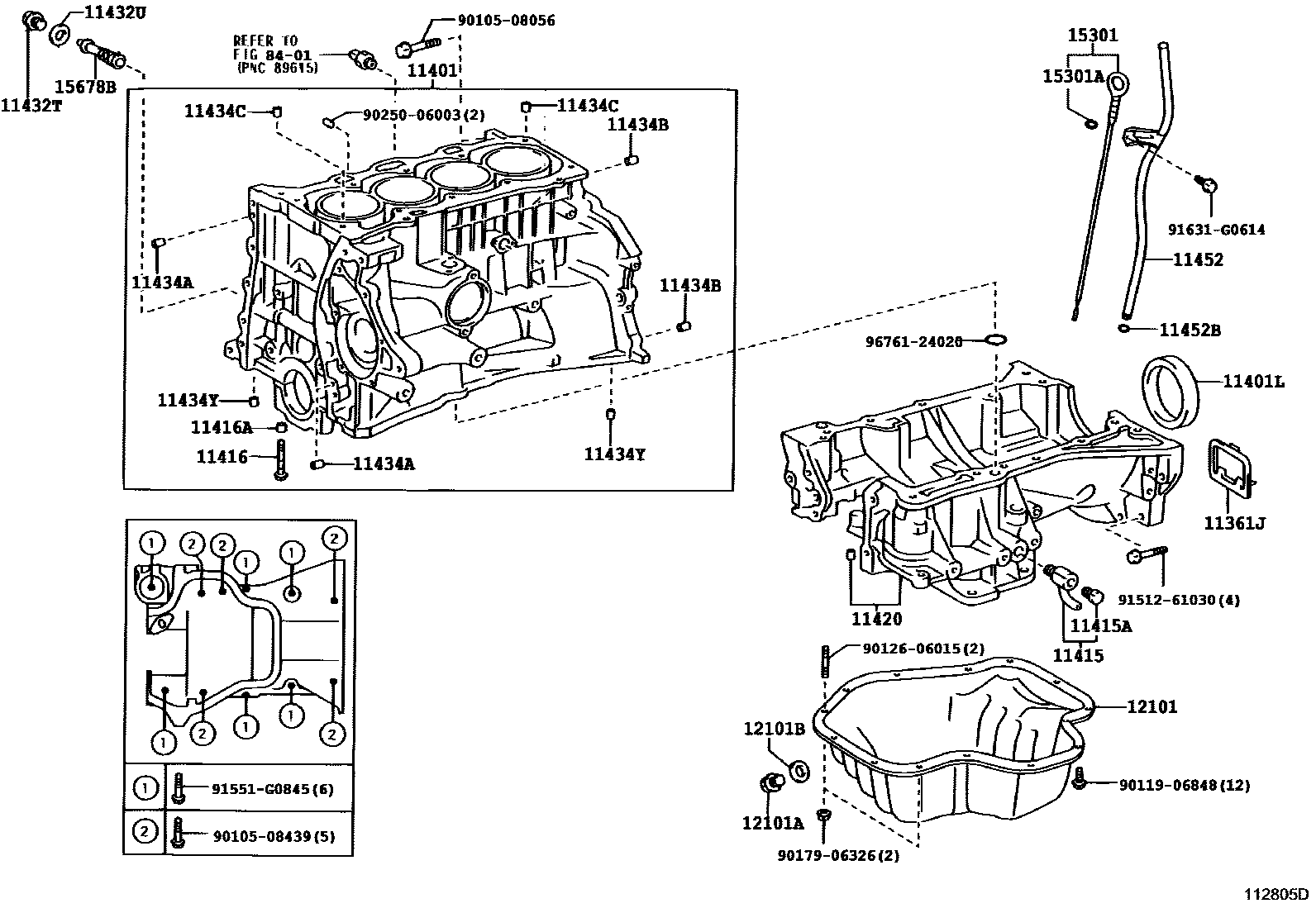

CYLINDER BLOCK

0001 1 0002 1 0003 1 0005 1

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-21011i1NZFE..NZT240200412

main11361-22021i1ZZFE..ZZT24#200112-200412

main11361-28010i1AZFSE..AZT240200112-200412

11401BLOCK SUB-ASSY, CYLINDER

main11401-29686i1NZFE..NZT240200112-200212

sub11401-29687

main11401-29855i1NZFE..NZT240200412

sub11401-29856

main11410-29086i1ZZFE..ZZT240200112-200212

main11410-29096i1ZZFE..ZZT245200112-200212

main11410-29115i1AZFSE..AZT240200112-200311

main11410-29135i1ZZFE..ZZT240200412

sub11410-29136

sub16258-28030

sub16268-22021

sub16268-22042

sub16268-22061

sub16268-22071

sub16268-22101

sub16268-22111

sub16268-22161

main11410-29165i1ZZFE..ZZT245200604

sub11410-29166

sub16258-28030

sub16268-22021

sub16268-22101

sub16268-22111

sub16268-22161

sub16268-22171

main11410-29195i1AZFSE..AZT240200311-200412

sub11410-29315

main11410-29225i1ZZFE..ZZT245200412-200604

main11410-29245i1AZFSE..AZT240200412

11401LSEAL, ENGINE REAR OIL

main90311-75016i1NZFE..NZT240200112-200412

sub90311-75019

main90311-76001i1ZZFE..ZZT24#200412

sub90311-76003

main90311-89003i1AZFSE..AZT240200112-200412

sub90311-89007

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09107i1ZZFE..ZZT24#200112-200412

main90910-09120i1AZFSE..AZT240200412

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i1ZZFE..ZZT24#200112-200412

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02124×10i1AZFSE..AZT240200112-200412

sub90910-02206

main90910-02125×10i1NZFE..NZT240200412

sub90910-02207

main91511-K0840×10i1ZZFE..ZZT24#200112-200412

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-13017×10i1AZFSE..AZT240200112-200412

11420CRANKCASE ASSY, STIFFENING

main11421-28020i1AZFSE..AZT240200112-200412

main11421-28031i1AZFSE..AZT240200412

11432TPLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK)

main90341-14013i1AZFSE..AZT240200112-200412

11432UGASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)

main90430-14009i1AZFSE..AZT240200112-200304

main90430-14011i1AZFSE..AZT240200304-200412

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08074×2i1AZFSE..AZT240200112-200301

main90250-08120×2i1AZFSE..AZT240200302-200412

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113×2i1ZZFE..ZZT24#200412

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120×2i1NZFE..NZT240200112-200412

main90253-14003×2i1AZFSE..AZT240200112-200412

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-08074×2i1AZFSE..AZT240200412

main90250-08120×2i1NZFE..NZT240200412

11452GUIDE, OIL LEVEL GAGE

main11452-21030i1NZFE..NZT240200112-200412

main11452-22030i1ZZFE..ZZT24#200412

sub11452-22031

sub11459-22010

main11452-28010i1AZFSE..AZT240200112-200301

main11452-28011i1AZFSE..AZT240200301-200412

main11452-28040i1AZFSE..AZT240200510

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i1ZZFE..ZZT24#200412

12101PAN SUB-ASSY, OIL

main12101-22024i1ZZFE..ZZT24#200112-200412

main12101-28050i1AZFSE..AZT240200112-200412

main12111-21033i1NZFE..NZT240200112-200412

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1ZZFE..ZZT24#200112-200412

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1ZZFE..ZZT24#200112-200412

15301GAGE SUB-ASSY, OIL LEVEL

main15301-21030i1NZFE..NZT240200112-200412

sub15301-21040

main15301-22030i1ZZFE..ZZT24#200412-200507

main15301-22050i1ZZFE..ZZT24#200507

main15301-28020i1AZFSE..AZT240200510

main15301-28050i1AZFSE..AZT240200301-200303

main15301-28051i1AZFSE..AZT240200304-200412

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i1AZFSE..AZT240200112-200301

15678BFILTER, OIL CONTROL VALVE

main15678-28010i1AZFSE..AZT240200112-200412

8401

9010508056

main90105-08056

9010508439

main90105-08439

9011906848

main90119-06848

9012606015

main90126-06015

9017906326

main90179-06326

9025006003

main90250-06003

9151261030

main91512-61030

91551G0845

main91551-G0845

91631G0614

main91631-G0614

9676124020

main96761-24020

33 parts on this diagram · 4 diagrams in section
