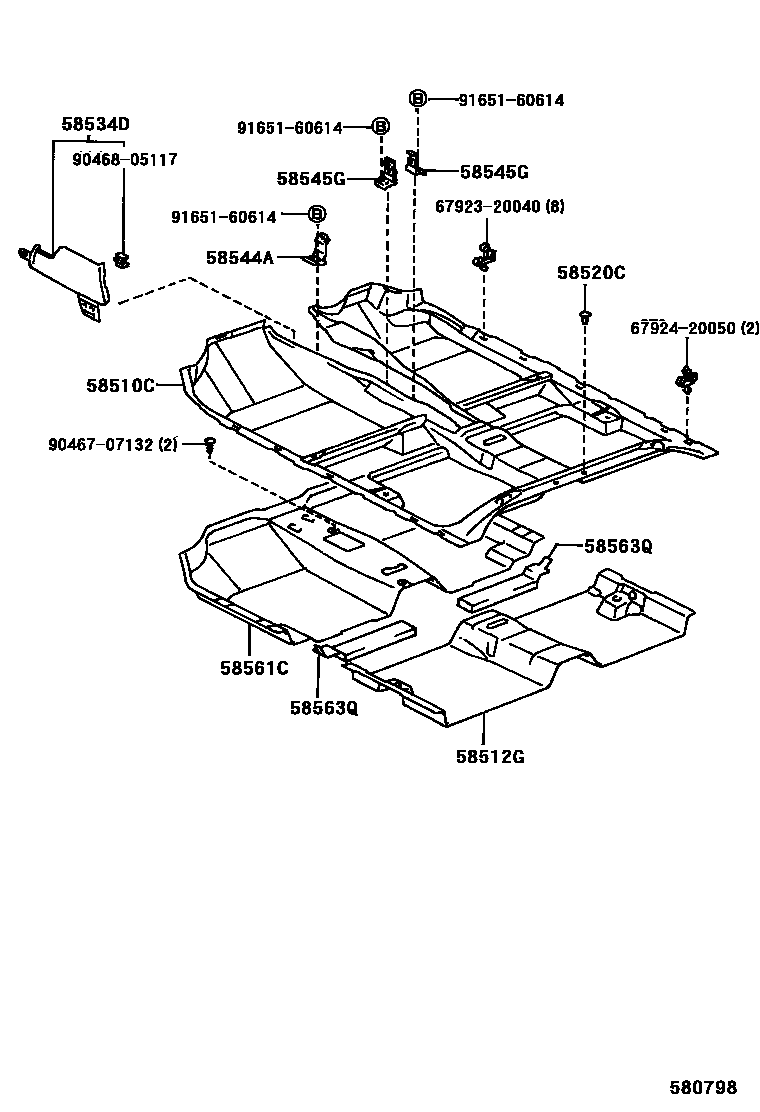

MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-2D870-B0iAT21#,CT21#,ST21#..EFI,TD199601-199712

BLUISH GRAY,TRIM1#

main58510-2D870-B1iAT21#,CT21#,ST215199712

DARK CHARCOAL,TRIM17

main58510-2D870-E0iAT21#,CT21#,ST21#..EFI,TD199601-199712

ANTELOPE,TRIM4#

main58510-2D880-B0iAT21#,CT21#,ST21#..EFI,TD199601-199712

main58510-2D880-B1iAT21#,CT21#,ST215199712

main58510-2D880-E0iAT21#,CT21#,ST21#..EFI,TD199601-199712

main58510-2D890-B0iST210..D4199707-199712

BLUISH GRAY,TRIM1#

main58510-2D890-E0iST210..D4199612-199712

ANTELOPE,TRIM4#

main58510-2G060-B0iST210..D4199707-199712

main58510-2G060-E0iST210..D4199612-199712

main58510-2G070-B0iST210199712

BLUISH GRAY,TRIM11

main58510-2G070-B1iST210199712

DARK CHARCOAL,TRIM17

main58510-2G080-B0iST210199712

main58510-2G080-B1iST210199712

58512GSILENCER, FRONT FLOOR, NO.2

main58512-20280iAT21#,CT21#,ST21#199601-199711

main58512-20290iAT21#,CT21#,ST21#199711

sub58512-20291

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-C0×2iAT21#,CT21#,ST21#..EFI,TD199601-199707

BLACK,TRIM1#,4#

sub90467-07049

58534DCOVER, FLOOR CARPET, CENTER LH

main58534-20020-B0iAT21#,CT21#,ST21#199707-199712

SHADOW GRAY,TRIM1#

main58534-20020-B1iAT21#,CT21#,ST21#199712

DK.CHARCOAL,TRIM17

main58534-20020-E0iAT21#,CT21#,ST21#199601-199712

ANTELOPE,TRIM4#

58544ABRACKET, FLOOR CARPET, LH

main58544-20060iAT21#,CT21#,ST21#199601

58545GBRACKET, FLOOR CARPET, NO.2 RH

main58545-20030×2iAT21#,CT21#,ST21#199601

58561CSILENCER, FRONT FLOOR, NO.1

main58561-20010iAT21#,CT21#,ST21#199601

sub58561-20011

58563QSILENCER, FRONT FLOOR, NO.3

main58563-20020×2iAT21#,CT21#,ST21#199601-199712

main58563-21010×2iAT21#,CT21#,ST21#199712

6792320040CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-20040

6792420050CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-20050

9046707132

main90467-07132

9046805117

main90468-05117

9165160614

main91651-60614

13 parts on this diagram · 1 diagram in section
