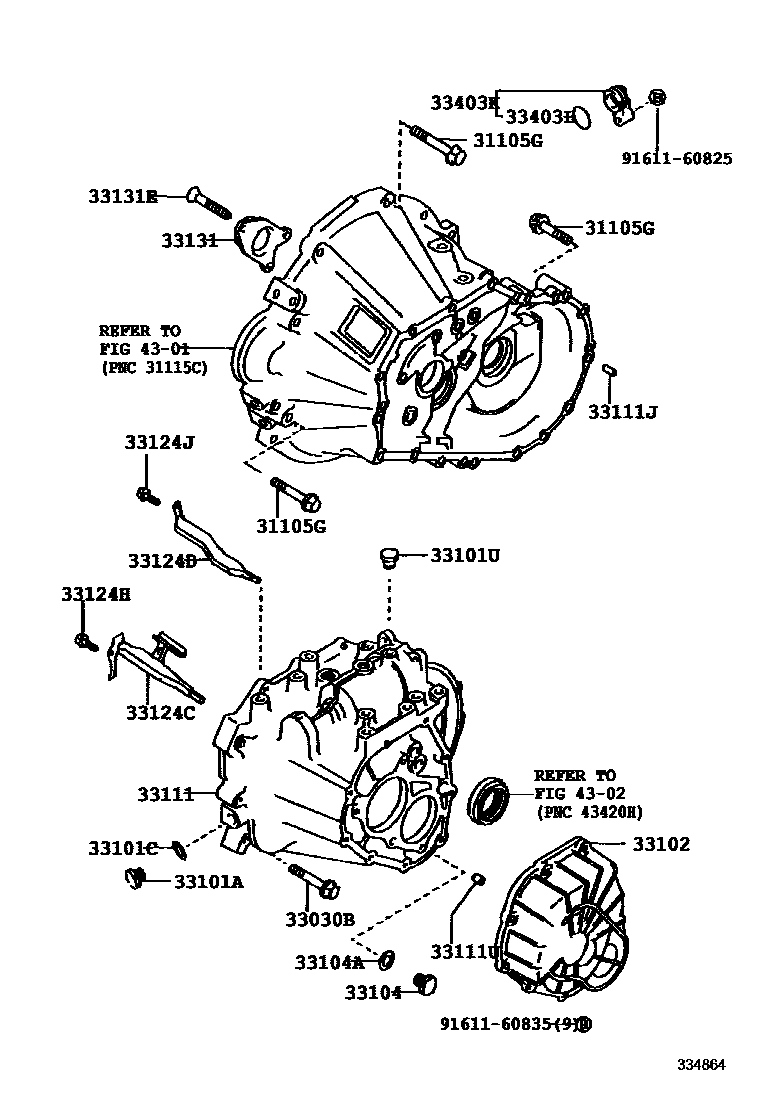

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C57,C58 0002 1S51,S55F 0004 1E56F,E57F

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08040iCT210,211,215,ST215..MTM199601

sub91641-H0820

main90105-10077iAT21#,CT210,211,215,ST215..MTM199601

main90119-12042iAT21#..MTM199601

main90119-12168×3iCT210,211,215,ST215..MTM199601

main91651-41022iCT215199601-199712

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042×17iCT211,ST215..MTM199712-200112

sub90105-08430

main90105-08064×13iAT21#..MTM199601-200112

sub90105-08353

main90105-08086×3iAT21#..MTM199601-200112

main90105-08126×17iCT215,ST215..MTM199601-199712

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iAT21#,CT210,211..MTM199601-200112

main90341-18033iCT215,ST215..MTM199601-199712

main90341-18054iST215..MTM199712-200112

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iAT21#,CT210,211,215,ST215..MTM199601-200112

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03111iCT215,ST215..MTM199601-199608

main90930-03133iAT21#,CT210..MTM199601-199712

main90930-03148iCT215,ST215..MTM199608-199712

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12021iAT21#..MTM199601-200112

main33102-12041iCT215,ST215..MTM199601-199712

sub33102-12042

main33102-33020iCT210..MTM199601-199712

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iAT21#,CT210,211,215,ST215..MTM199601-200112

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iAT21#,CT210,211,215,ST215..MTM199601-200112

33111CASE, MANUAL TRANSMISSION

main33101-12170iCT215,ST215..MTM199601-199712

sub33101-12171

main33111-16061iAT21#..MTM199601-199704

sub90109-12073

main33111-16062iAT21#..MTM199704-199907

sub90109-18005

main33111-16063iAT21#..MTM199907-200112

sub33111-16064

sub90101-08166

sub90201-08049

main33111-32030iCT210..MTM199704-199712

main33111-33031iCT210..MTM199601-199704

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054×6iAT21#..MTM199712-200112

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001×2iAT21#..MTM199601

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-12012iAT21#..MTM199601-199907

main33124-12030iCT215,ST215..MTM199601-199712

main33124-20050iAT21#..MTM199907-200112

main33124-33010iCT211,ST215..MTM199712-200112

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12021iAT21#..MTM199601

main33124-12041iCT215,ST215..MTM199601-199712

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08648iCT215,ST215..MTM199601-199712

sub90119-08830

main91611-60820iAT21#..MTM199601-200112

sub91611-G0820

main91651-60618iCT211,ST215..MTM199712-200112

33124JBOLT, W/WASHER

main91611-60820iAT21#..MTM199601

sub91611-G0820

33131RETAINER, BEARING, FRONT(MTM)

main33131-12071iAT21#..MTM199601-199607

main33131-12080iAT21#..MTM199607

33131ESCREW(FOR BEARING RETAINER FRONT)

main90149-60028×3iAT21#..MTM199601

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-20230iCT210..MTM199601-199712

main33403-20240iCT215,ST215..MTM199601-199712

main33403-35230iAT21#..MTM199601

33403LRING, O

main96711-24018iCT211,ST215..MTM199712

main96711-24030iAT21#,CT215,ST215..MTM199601-199712

4301

4302

9161160825

main91611-60825

9161160835

main91611-60835

23 parts on this diagram · 3 diagrams in section
