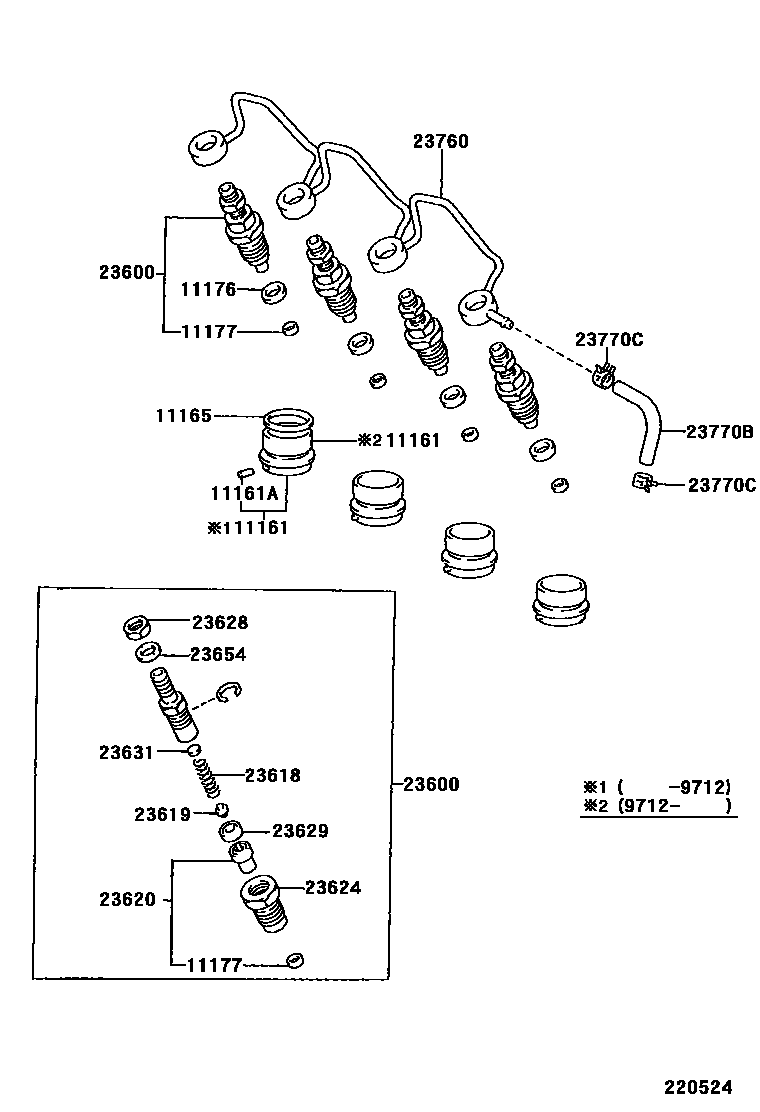

INJECTION NOZZLE
11161APIN, STRAIGHT(FOR COMBUSTION CHAMBER)
11165SHIM(FOR COMBUSTION CHAMBER)
11176SEAT, INJECTION NOZZLE
11177GASKET, INJECTION NOZZLE SEAT
23600HOLDER & NOZZLE SET, NOZZLE
23618SPRING, NOZZLE HOLDER PRESSURE
23619PIN, NOZZLE HOLDER PRESSURE
23628NUT(FOR RING PACKING SETTING)
23629PIECE, DISTANCE(FOR NOZZLE)
23631WASHER(FOR NOZZLE HOLDER PRESSURE SPRING)
23654WASHER(FOR RING PACKING)
23760PIPE ASSY, NOZZLE LEAKAGE
23770BHOSE, FUEL
23770CCLAMP OR CLIP(FOR FUEL HOSE SET)
17 parts on this diagram · 1 diagram in section
