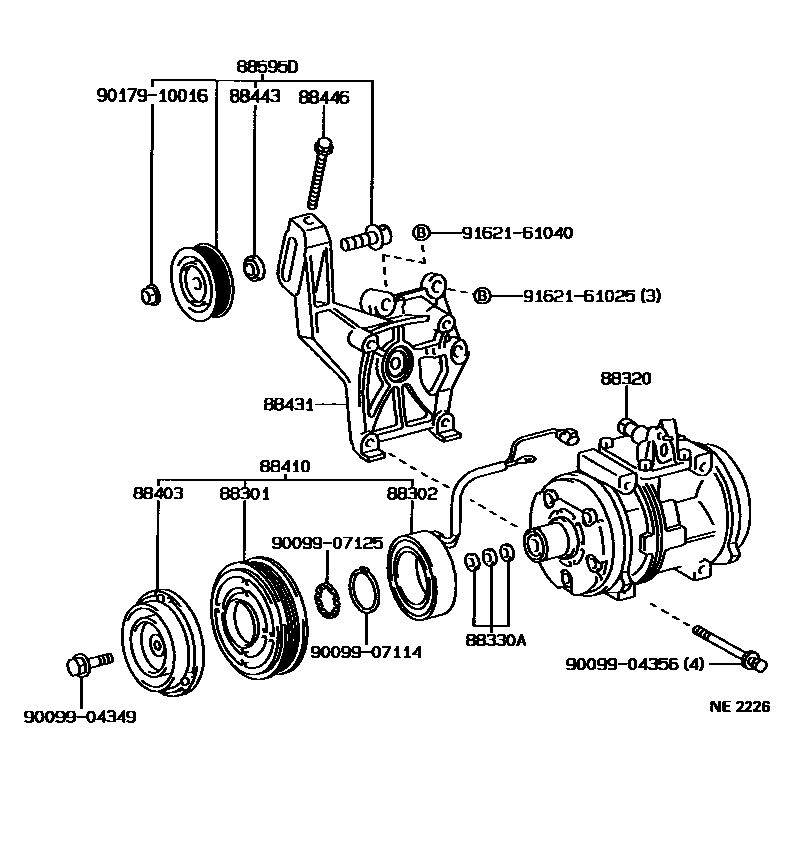

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-2B010iAT190199202-199509

main88412-2B020iST19#199202-199601

main88412-2B030iCT19#199202-199601

main88412-33050iAT190199509-199601

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22310iCT19#199402-199601

sub88411-2A030

main88411-2B070iAT190199202-199402

main88411-2B080iCT19#199202-199402

main88411-2B100iAT190199402-199601

main88411-32080iST19#199202-199601

sub88411-2B090

88320COMPRESSOR ASSY, COOLER

main88320-2B070iAT190199202-199402

main88320-2B080iST19#199202-199402

main88320-2B090iCT19#199202-199402

main88320-2B120iST19#199402-199601

main88320-2B130iCT19#199402-199601

sub88320-2BH90

main88320-2B300iAT190199402-199601

sub88320-35H92

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iAT190,CT19#,ST19#199202-199601

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-30290iCT19#199202-199601

88410CLUTCH ASSY, MAGNET

main88410-2B030iAT190199202-199402

main88410-2B040iST19#199202-199601

main88410-2B060iCT19#199202-199601

main88410-2B150iAT190199402-199601

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-12460iCT19#199202-199601

main88431-12550iAT190199402-199601

main88431-20360iAT190199202-199402

88443COLLAR, IDLE PULLEY

main88443-36010iAT190199402-199601

88446BOLT, IDLE PULLEY

main88446-12030iAT190199202-199601

main88446-36010iAT190..SELS199202-199402

88595DPULLEY ASSY, IDLE

main88440-17010iAT190199202-199601

main88440-20160iAT190..SELS199205-199402

9009904349

main90099-04349

9009904356

main90099-04356

9009907114

main90099-07114

9009907125

main90099-07125

9017910016

main90179-10016

9162161025

main91621-61025

9162161040

main91621-61040

17 parts on this diagram · 3 diagrams in section
