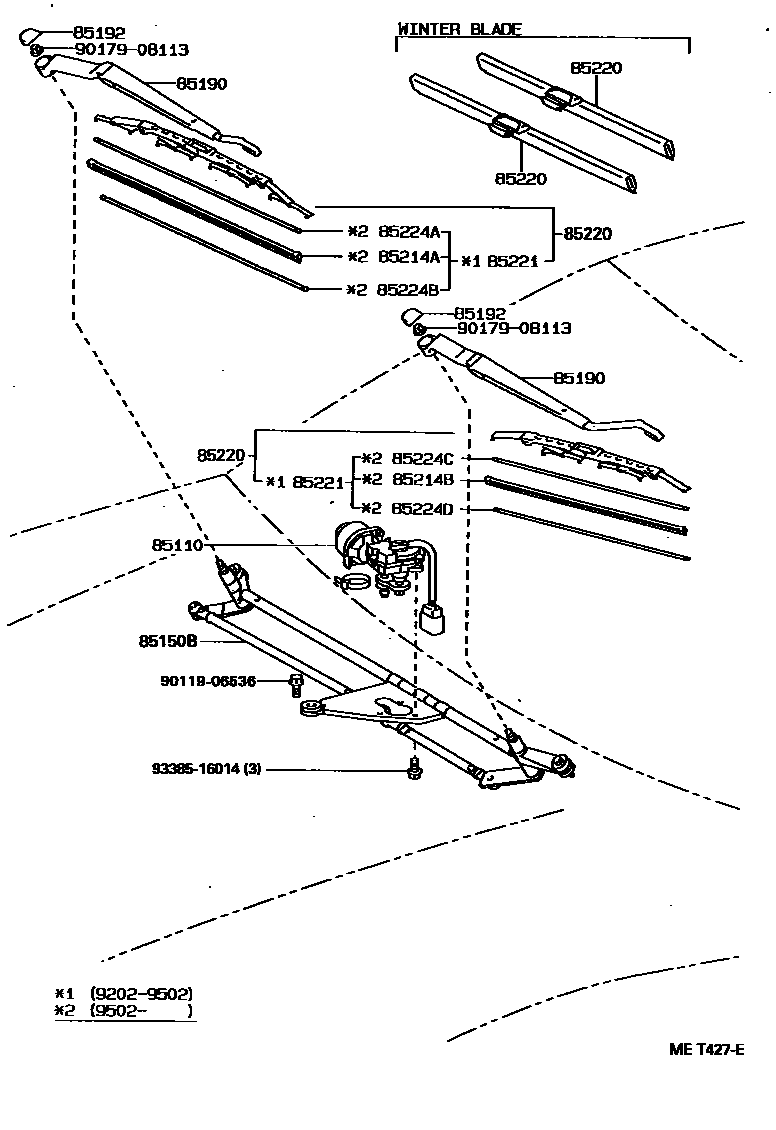

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-20700iAT190,CT19#,ST19#199202-199402

sub85110-20720

main85110-20701iAT190,CT19#,ST19#199402-199601

sub85110-21030

main85110-20710iAT190,CT19#,ST19#199202-199402

main85110-20711iAT190,CT19#,ST19#199402-199601

85150BLINK ASSY, WIPER

main85150-20750iAT190,CT19#,ST19#199202-199601

sub85150-20770

main85150-20790iAT190,CT19#,ST19#199202-199305

sub85150-20750

main85150-20860iAT190,CT19#,ST19#199501-199601

85190ARM ASSY, WINDSHIELD WIPER

main85211-20330iAT190,CT19#,ST19#199202-199601

main85221-20310iAT190,CT19#,ST19#199202-199601

85192COVER, WINDSHIELD WIPER ARM

main85192-12800iAT190,CT190,ST19#199202-199207

main85292-12020iAT190,CT19#,ST19#199208-199601

85214ARUBBER, WIPER, RH

main85214-33060iAT190,CT19#,ST19#199502-199601

sub85214-40080

85214BRUBBER, WIPER, LH

main85214-20320iAT190,CT19#,ST19#199502-199601

sub85214-20330

85220BLADE ASSY, WINDSHIELD WIPER

main85212-20350iAT190,CT19#,ST19#199202-199601

main85222-20310iAT190,CT19#,ST19#199202-199601

sub85222-60100

main85291-22050iAT190,CT19#,ST19#199202-199601

sub85291-33060

main85291-30030iAT190,CT19#,ST19#199202-199601

sub85291-22080

85221BLADE, WINDSHIELD WIPER

main85213-20310iAT190,CT19#,ST19#199202-199502

sub85214-33060

main85223-20310iAT190,CT19#,ST19#199202-199502

sub85214-20320

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-33050iAT190,CT19#,ST19#199502-199601

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-33050iAT190,CT19#,ST19#199502-199601

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-60050iAT190,CT19#,ST19#199502-199601

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-60050iAT190,CT19#,ST19#199502-199601

9011906536

main90119-06536

9017908113

main90179-08113

9338516014

main93385-16014

15 parts on this diagram · 1 diagram in section
