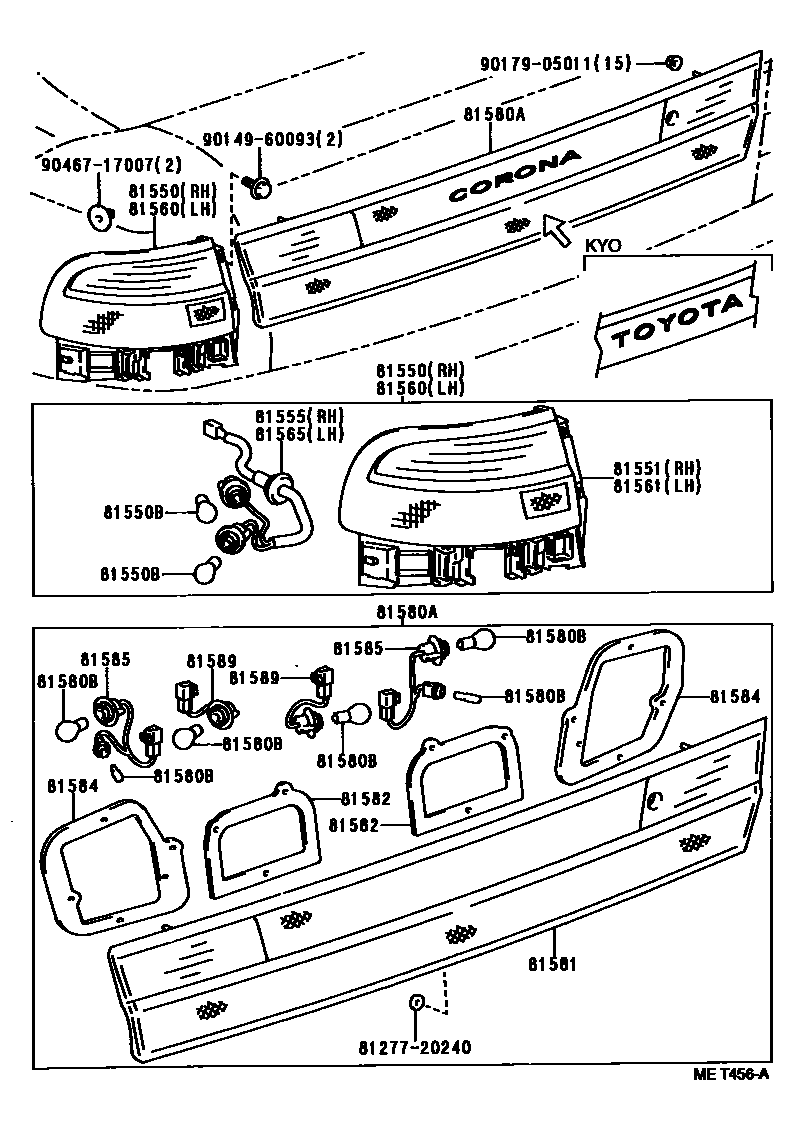

REAR COMBINATION LAMP

0001 1 0002 1 0003 1 0004 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-2B260iAT190,CT19#,ST19#..SED199202-199411

main81550-2B261iAT190,CT19#,ST19#..SED199411-199601

main81550-2B280iST190,191..LB199202-199411

main81550-2B281iST190,191..LB199411-199601

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×2iAT190,CT19#,ST19#199202-199601

main99132-21210×2iAT190,CT19#,ST19#199202-199601

81551LENS, REAR COMBINATION LAMP, RH

main81551-2B260iAT190,CT19#,ST19#..SED199202-199411

main81551-2B261iAT190,CT19#,ST19#..SED199411-199601

main81551-2B280iST190,191..LB199202-199411

main81551-2B281iST190,191..LB199411-199601

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-2B260iAT190,CT19#,ST19#..SED199202-199601

main81555-2B280iST190,191..LB199202-199601

81560LAMP ASSY, REAR COMBINATION, LH

main81560-2B200iAT190,CT19#,ST19#..SED199202-199411

main81560-2B201iAT190,CT19#,ST19#..SED199411-199601

main81560-2B220iST190,191..LB199202-199411

main81560-2B221iST190,191..LB199411-199601

81561LENS, REAR COMBINATION LAMP, LH

main81561-2B200iAT190,CT19#,ST19#..SED199202-199411

main81561-2B201iAT190,CT19#,ST19#..SED199411-199601

main81561-2B220iST190,191..LB199202-199411

main81561-2B221iST190,191..LB199411-199601

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-2B260iAT190,CT19#,ST19#..SED199202-199601

main81555-2B280iST190,191..LB199202-199601

81580ALAMP ASSY, REAR

main81580-20080iAT190,CT19#,ST19#..EXG,EXS,GX,SELS199202-199402

main81580-20090iAT190,CT19#,ST19#..EXG,GX,SELS199202-199402

main81580-20100iAT190,CT19#,ST19#..SED199402-199601

main81580-20120iST190..TYPE1199202-199402

main81580-20150iST191..TYPE2199202-199402

main81580-20160iST190..TYPE1199402-199601

main81580-20240iCT190,ST190..KYO199211-199402

main81580-20260iST191..TYPE2199402-199601

main81580-20270iAT190,CT19#,ST19#..EXG,EXS,GX,SELS199402-199601

81580BBULB (FOR REAR LAMP)

main99132-11050×2iAT190,CT19#,ST19#..SED199202-199402

main99132-11210×4iAT190,CT19#,ST19#..EXG,GX,SELS199202-199402

main99132-12050×4iST190,191..LB199202-199402

81581LENS, REAR LAMP

main81581-20080iAT190,CT19#,ST19#..EXG,EXS,GX,SELS199202-199402

main81581-20090iAT190,CT19#,ST19#..EXG,GX,SELS199202-199402

main81581-20100iAT190,CT19#,ST19#..SED199402-199601

main81581-20120iST190..TYPE1199202-199402

main81581-20150iST191..TYPE2199202-199402

main81581-20160iST190..TYPE1199402-199601

main81581-20240iCT190,ST190..KYO199211-199402

main81581-20260iST191..TYPE2199402-199601

main81581-20270iAT190,CT19#,ST19#..EXG,EXS,GX,SELS199402-199601

main81591-20050iAT190,CT19#,ST19#..SED199402-199601

main81591-20070iST190..TYPE1199402-199601

main81591-20130iST191..TYPE2199402-199601

main81591-20140iAT190,CT19#,ST19#..EXG,EXS,GX,SELS199402-199601

81582GASKET, REAR LAMP

main81582-20090×2iAT190,CT19#,ST19#..EXG,GX,SELS199202-199402

81584PACKING, REAR LAMP RH

main81584-20090×2iAT190,CT19#,ST19#..SED199202-199601

main81584-20170iST190,191..LB199402-199601

main81594-20080iST190,191..LB199402-199601

81585SOCKET & WIRE, REAR LAMP

main81585-20090×2iAT190,CT19#,ST19#..SED199202-199402

main81585-20100iAT190,CT19#,ST19#..SED199402-199601

main81585-20110iAT190,CT19#,ST19#..EXG,EXS,GX,SELS199402-199601

main81585-20120iST190,191..LB199202-199402

main81585-20150×2iST191..TYPE2199202-199402

main81585-20160×2iST190..TYPE1199402-199601

main81585-20170×2iST191..TYPE2199402-199601

main81595-20050iAT190,CT19#,ST19#..SED199402-199601

main81595-20060iAT190,CT19#,ST19#..EXG,EXS,GX,SELS199402-199601

81589CORD, BACK-UP LAMP

main81589-20090×2iAT190,CT19#,ST19#..EXG,GX,SELS199202-199402

main81589-20120×2iST190,191..LB199202-199402

8127720240SPACER, LICENSE PLATE LAMP RIM AND LENS

main81277-20240

9014960093

main90149-60093

9017905011

main90179-05011

9046717007

main90467-17007

18 parts on this diagram · 4 diagrams in section
