ARMREST & VISOR

74210ARMREST ASSY, FRONT, RH

main74210-20220-B0iAT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1199402-199601

SHADOW GRAY,TRIM1#

sub74210-20220¥5,400

main74210-20220-C0iAT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1199202-199402

BLACK,TRIM2#

sub74210-20220¥5,400

main74210-20220-E0iAT190,CT19#,ST19#..EXS,GX,KYO,SELS199202-199601

ANTELOPE,TRIM4#

sub74210-20220¥5,400

main74210-20230-B0iST190,191..EXG199202-199402

GRAY,TRIM2#

main74210-20230-B0iST190,191..EXG199402-199601

GRAY,TRIM1#

main74210-20230-E0iST190,191..EXG199202-199601

ANTELOPE,TRIM4#

main74210-20300-C2iST191..TYPE2199202-199402

BLACK,TRIM2#

main74210-20300-C2iST191..TYPE2199402-199601

BLACK,TRIM1#

74220ARMREST ASSY, FRONT, LH

main74220-20220-B0iAT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1199402-199601

SHADOW GRAY,TRIM1#

sub74220-20220¥5,400

main74220-20220-C0iAT190,CT19#,ST19#..EXS,GX,KYO,SELS,TYPE1199202-199402

BLACK,TRIM2#

sub74220-20220¥5,400

main74220-20220-E0iAT190,CT19#,ST19#..EXS,GX,KYO,SELS199202-199601

ANTELOPE,TRIM4#

sub74220-20220¥5,400

main74220-20230-B0iST190,191..EXG199402-199601

GRAY,TRIM1#

main74220-20230-B0iST190,191..EXG199202-199402

GRAY,TRIM2#

main74220-20230-E0iST190,191..EXG199202-199601

ANTELOPE,TRIM4#

main74220-20300-C2iST191..TYPE2199202-199402

BLACK,TRIM2#

main74220-20300-C2iST191..TYPE2199402-199601

BLACK,TRIM1#

74230ARMREST ASSY, REAR, RH

main74250-20080-C0iAT190,CT190,ST190,195..GX,KYO199202-199402

BLACK,TRIM2#

sub74250-20080¥4,160

main74250-20080-E0iAT190,CT190,ST190,195..GX,KYO199202-199601

ANTELOPE,TRIM4#

sub74250-20080¥4,160

main74250-20080-P0iAT190,CT190,ST190,195..GX,KYO199402-199601

SHADOW GRAY,TRIM1#

sub74250-20080¥4,160

main74250-20130-B0iAT190,CT190,ST190..GX199508-199601

main74250-20130-B0iAT190,CT19#,ST19#..EXS,SELS,TYPE1199402-199601

SHADOW GRAY,TRIM1#

main74250-20130-C0iAT190..MTM..SELS;AT190..ATM..(EXS,SELS);CT19#,ST19#..EXS,SELS,TYPE1199202-199402

BLACK,TRIM2#

main74250-20130-E0iAT190,CT19#,ST19#..EXS,SELS199202-199601

ANTELOPE,TRIM4#

main74250-20140-B0iST190,191..EXG199402-199601

GRAY,TRIM1#

main74250-20140-B0iST190,191..EXG199202-199402

GRAY,TRIM2#

main74250-20140-E0iST190,191..EXG199202-199601

ANTELOPE,TRIM4#

main74250-20200-C2iST191..TYPE2199202-199402

BLACK,TRIM2#

main74250-20200-C2iST191..TYPE2199402-199601

BLACK,TRIM1#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-20270-C0iAT190,CT19#,ST19#..EXG,EXS,SELS199402-199601

BLACK,TRIM1#

main74231-20270-C0iAT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2199202-199402

BLACK,TRIM2#

main74231-20270-C0iST190,191..LB199402-199601

BLACK,TRIM1#,4#

main74231-20270-C0iAT190,CT190,ST190..GX199508-199601

main74231-20270-E0iAT190,CT19#,ST19#..EXG,EXS,SELS199202-199402

ANTELOPE,TRIM4#

74233BPANEL, FRONT DOOR ARMREST BASE, LOWER RH

main74233-20120-B0iAT190,CT190,ST190,195..GX,KYO199402-199601

SHADOW GRAY,TRIM1#

sub74233-20120¥5,900

main74233-20120-C0iAT190,CT190,ST190,195..GX,KYO199202-199402

BLACK,TRIM2#

sub74233-20120¥5,900

main74233-20120-E0iAT190,CT190,ST190,195..GX,KYO199202-199601

ANTELOPE,TRIM4#

sub74233-20120¥5,900

main74233-20130-B0iAT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2199402-199601

SHADOW GRAY,TRIM1#

sub74233-20130¥4,600

main74233-20130-C0iAT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2199202-199402

BLACK,TRIM2#

sub74233-20130¥4,600

main74233-20130-E0iAT190,CT19#,ST19#..EXG,EXS,SELS199202-199601

ANTELOPE,TRIM4#

sub74233-20130¥4,600

74234BPANEL, FRONT DOOR ARMREST BASE, LOWER LH

main74234-20130-B0iAT190,CT19#,ST19#199402-199601

SHADOW GRAY,TRIM1#

sub74234-20130¥5,900

main74234-20130-C0iAT190,CT19#,ST19#199202-199402

BLACK,TRIM2#

sub74234-20130¥5,900

main74234-20130-E0iAT190,CT19#,ST19#..SED199202-199601

ANTELOPE,TRIM4#

sub74234-20130¥5,900

74240ARMREST ASSY, REAR, LH

main74250-20080-C0iAT190,CT190,ST190,195..GX,KYO199202-199402

BLACK,TRIM2#

sub74250-20080¥4,160

main74250-20080-E0iAT190,CT190,ST190,195..GX,KYO199202-199601

ANTELOPE,TRIM4#

sub74250-20080¥4,160

main74250-20080-P0iAT190,CT190,ST190,195..GX,KYO199402-199601

SHADOW GRAY,TRIM1#

sub74250-20080¥4,160

main74260-20080-B0iAT190,CT190,ST190..GX199508-199601

main74260-20080-B0iAT190,CT19#,ST19#..EXS,SELS,TYPE1199402-199601

SHADOW GRAY,TRIM1#

main74260-20080-C0iAT190..MTM..SELS;AT190..ATM..(EXS,SELS);CT19#,ST19#..EXS,SELS,TYPE1199202-199402

BLACK,TRIM2#

main74260-20080-E0iAT190..MTM..SELS;CT19#,ST19#..EXS,SELS;AT190..ATM..(EXS,SELS)199202-199601

ANTELOPE,TRIM4#

main74260-20090-B0iST190,191..EXG199402-199601

GRAY,TRIM1#

main74260-20090-B0iST190,191..EXG199202-199402

GRAY,TRIM2#

main74260-20090-E0iST190,191..EXG199202-199601

ANTELOPE,TRIM4#

main74260-20130-C2iST191..TYPE2199202-199402

BLACK,TRIM2#

main74260-20130-C2iST191..TYPE2199402-199601

BLACK,TRIM1#

74266CAP, DOOR ARMREST, RH

main74266-20070-B0iAT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2199402-199601

SHADOW GRAY,TRIM1#

sub74266-20070¥600

main74266-20070-E0iAT190,CT19#,ST19#..EXG,EXS,GX,SELS199402-199601

ANTELOPE,TRIM4#

sub74266-20070¥600

74267CAP, DOOR ARMREST, LH

main74266-20070-B0iAT190,CT190,ST190,195..GX,KYO199402-199601

SHADOW GRAY,TRIM1#

sub74266-20070¥600

main74266-20070-C0iAT190,CT190,ST190,195..GX,KYO199202-199402

BLACK,TRIM2#

sub74266-20070¥600

main74266-20070-E0iAT190,CT190,ST190,195..GX,KYO199202-199601

ANTELOPE,TRIM4#

sub74266-20070¥600

74273APANEL, REAR DOOR ARMREST BASE, LOWER RH

main74273-20060-B0iAT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2199402-199601

SHADOW GRAY,TRIM1#

sub74273-20060¥4,980

main74273-20060-C0iAT190,CT19#,ST19#..EXS,SELS,TYPE1,TYPE2199202-199402

BLACK,TRIM2#

sub74273-20060¥4,980

main74273-20060-E0iAT190,CT19#,ST19#..EXS,SELS199202-199601

ANTELOPE,TRIM4#

sub74273-20060¥4,980

74274APANEL, REAR DOOR ARMREST BASE, LOWER LH

main74274-20050-B0iAT190,CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2199402-199601

SHADOW GRAY,TRIM1#

sub74274-20050¥4,980

main74274-20050-C0iAT190,CT19#,ST19#..EXS,SELS,TYPE1,TYPE2199202-199402

BLACK,TRIM2#

sub74274-20050¥4,980

main74274-20050-E0iAT190,CT19#,ST19#..EXG,EXS,SELS199202-199601

ANTELOPE,TRIM4#

sub74274-20050¥4,980

74293DPLATE, FRONT DOOR ARMREST, NO.1

main74293-32010iAT190,CT19#,ST19#..EXG,EXS,GX,KYO,SELS,TYPE1¥170199202-199601

74293EPLATE, REAR DOOR ARMREST, NO.1

main74293-32010iAT190..MTM..SELS;AT190..ATM..(EXS,SELS);CT19#,ST19#..EXG,EXS,SELS,TYPE1,TYPE2¥170199202-199601

main74293-32010iAT190,CT190,ST190..GX¥170199508-199601

74310VISOR ASSY, RH

main74310-2B240-B1iAT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2199402-199601

main74310-2B240-B1iAT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2199202-199402

main74310-2B240-E1iAT190,CT19#,ST19#..EXG,EXS199202-199601

main74310-2B270-B1iAT190,CT19#,ST190,195..GX,KYO,SELS199202-199402

GRAY,TRIM2#

sub74310-2B270¥3,210

main74310-2B270-B1iAT190,CT19#,ST190,195..GX,KYO,SELS199402-199601

GRAY,TRIM1#

sub74310-2B270¥3,210

main74310-2B270-E1iAT190,CT19#,ST190,195..GX,KYO,SELS199202-199601

ANTELOPE,TRIM4#

sub74310-2B270¥3,210

main74310-2B300-B1iAT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2199402-199601

GRAY,TRIM1#

sub74310-2B300¥3,790

main74310-2B300-B1iAT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2199202-199402

GRAY,TRIM2#

sub74310-2B300¥3,790

main74310-2B300-E1iAT190,CT19#,ST19#..EXG,EXS199202-199601

ANTELOPE,TRIM4#

sub74310-2B300¥3,790

74317COVER, VISOR BRACKET, RH

main74317-32010-B0iAT190,CT19#,ST19#199402-199601

GRAY,TRIM1#

sub74317-32010¥350

main74317-32010-B0iAT190,CT19#,ST19#199202-199402

GRAY,TRIM2#

sub74317-32010¥350

main74317-32010-E0iAT190,CT19#,ST19#..SED199202-199601

ANTELOPE,TRIM4#

sub74317-32010¥350

74318COVER, VISOR BRACKET, LH

main74317-32010-B0iAT190,CT19#,ST19#199402-199601

GRAY,TRIM1#

sub74317-32010¥350

main74317-32010-B0iAT190,CT19#,ST19#199202-199402

GRAY,TRIM2#

sub74317-32010¥350

main74317-32010-E0iAT190,CT19#,ST19#..SED199202-199601

ANTELOPE,TRIM4#

sub74317-32010¥350

74320VISOR ASSY, LH

main74320-2B080-B1iAT190,CT19#,ST190,195..GX,SELS199202-199402

GRAY,TRIM2#

sub74320-2B080¥2,780

main74320-2B080-B1iAT190,CT19#,ST190,195..GX,SELS199402-199601

GRAY,TRIM1#

sub74320-2B080¥2,780

main74320-2B080-E1iAT190,CT19#,ST190,195..GX,SELS199202-199601

ANTELOPE,TRIM4#

sub74320-2B080¥2,780

main74320-2B110-B1iAT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2199402-199601

GRAY,TRIM1#

sub74320-2B110¥4,390

main74320-2B110-B1iAT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2199202-199402

GRAY,TRIM2#

sub74320-2B110¥4,390

main74320-2B110-E1iAT190,CT19#,ST19#..EXG,EXS199202-199601

ANTELOPE,TRIM4#

sub74320-2B110¥4,390

main74320-2B120-B1iAT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2199202-199402

main74320-2B120-B1iAT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2199402-199601

main74320-2B120-E1iAT190,CT19#,ST19#..EXG,EXS199202-199601

main74320-2B251-B0iCT190,ST190..KYO199211-199402

GRAY,TRIM2#

main74320-2B251-B0iCT190,ST190..KYO199402-199601

GRAY,TRIM1#

main74320-2B251-E0iCT190,ST190..KYO199211-199601

ANTELOPE,TRIM4#

74348BHOLDER, VISOR, RH

main74348-20030-B0iAT190,CT19#,ST19#199402-199601

GRAY,TRIM1#

sub74348-33030¥820

main74348-20030-B0iAT190,CT19#,ST19#199202-199402

GRAY,TRIM2#

sub74348-33030¥820

main74348-20030-E0iAT190,CT19#,ST19#..SED199202-199601

ANTELOPE,TRIM4#

sub74348-33030¥820

74348CHOLDER, VISOR, LH

main74348-20030-B0iAT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2199402-199601

GRAY,TRIM1#

sub74348-33030¥820

main74348-20030-B0iAT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2199202-199402

GRAY,TRIM2#

sub74348-33030¥820

main74348-20030-E0iAT190,CT19#,ST19#..EXG,EXS,GX,SELS199202-199601

ANTELOPE,TRIM4#

sub74348-33030¥820

74610AGRIP SUB-ASSY, ASSIST

main74610-32020-B1iAT190,CT19#,ST19#199402-199601

GRAY,TRIM1#

sub74610-32020¥1,590

sub74610-35012¥2,760

main74610-32020-B1iAT190,CT19#,ST19#199202-199402

GRAY,TRIM2#

sub74610-32020¥1,590

sub74610-35012¥2,760

main74610-32020-E1iAT190,CT19#,ST19#..SED199202-199601

ANTELOPE,TRIM4#

sub74610-32020¥1,590

sub74610-35012¥2,760

74617APLUG, ASSIST GRIP

main74617-16010-B4iAT190,CT19#,ST19#199202-199402

GRAY,TRIM2#

sub74617-16010¥180

main74617-16010-B4iAT190,CT19#,ST19#199402-199601

GRAY,TRIM1#

sub74617-16010¥180

main74617-16010-E5iAT190,CT19#,ST19#..SED199202-199601

ANTELOPE,TRIM4#

sub74617-16010¥180

74631BHOOK, COAT

main74631-32020-B1iAT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2199202-199305

GRAY,TRIM2#

sub74631-32020¥330

main74631-32020-E0iAT190,CT19#,ST19#..EXG,EXS,GX,SELS199202-199305

ANTELOPE,TRIM4#

sub74631-32020¥330

9015960133

main90159-60133¥140

9015960370

main90159-60370¥70

9016460020

main90164-60020¥120

9016840068

main90168-40068¥120

9018906045

main90189-06045¥200

9018906106

main90189-06106¥130

9020104432

main90201-04432¥120

9046805047

main90468-05047¥90

9046807021

main90468-07021¥240

9353045020

main93530-45020¥110

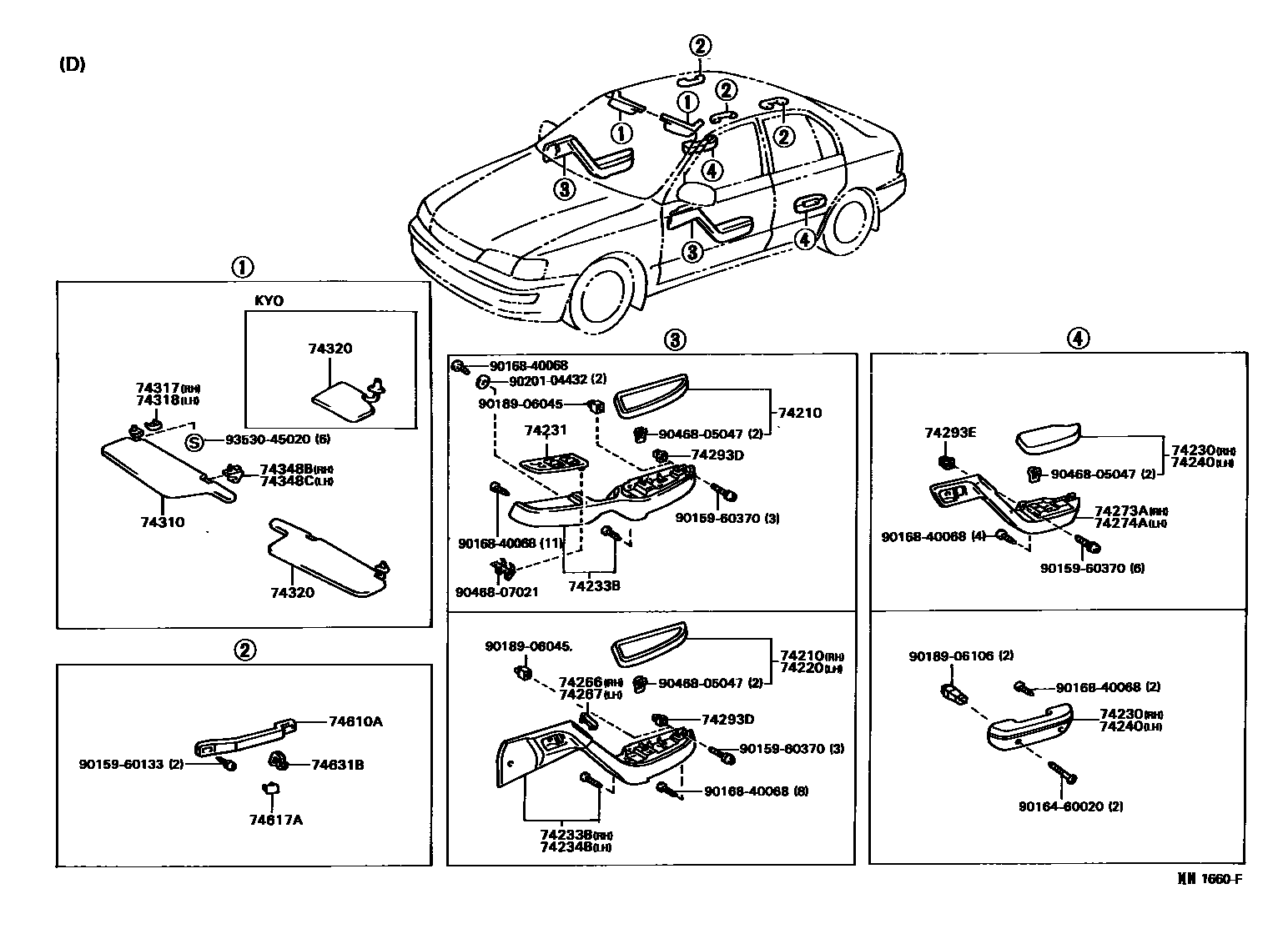

32 parts on this diagram · 1 diagram in section
