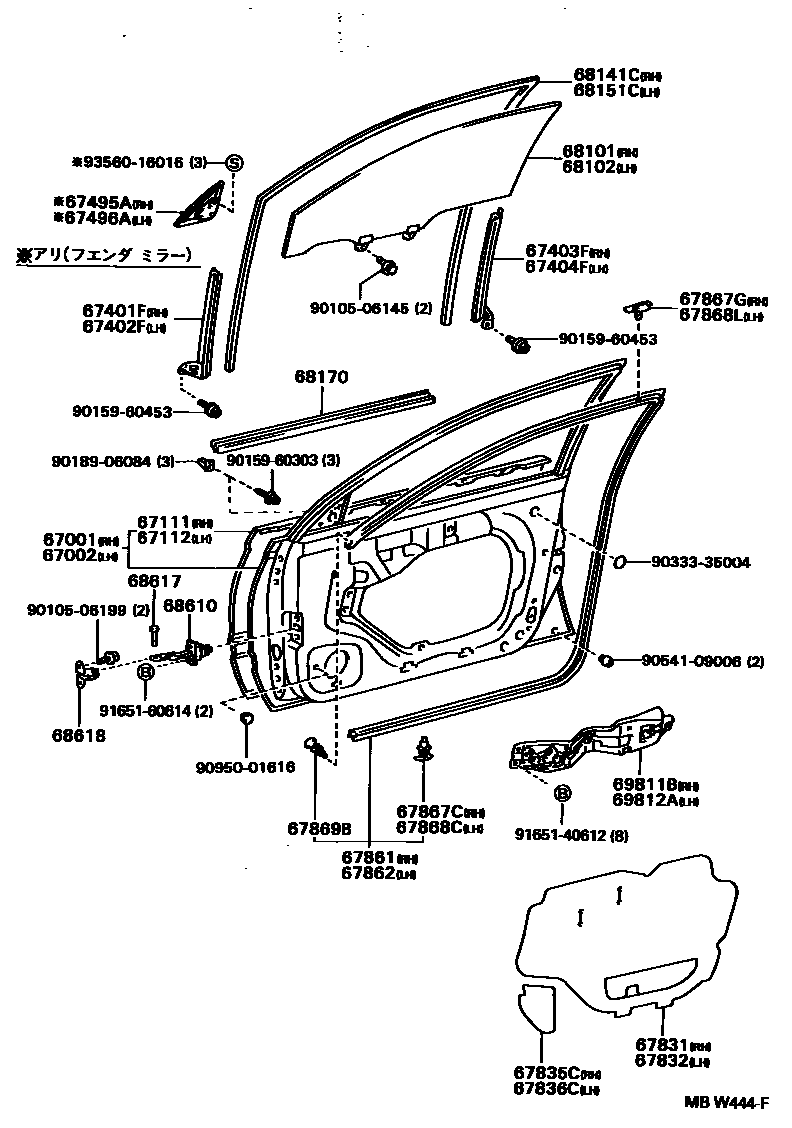

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-20880iAT190,CT19#,ST19#199202-199510

sub67001-20882

sub90189-05027

sub90189-06203

main67001-20882iAT190,CT19#,ST19#199510-199601

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-20840iAT190,CT19#,ST19#199202-199510

sub67002-20842

sub90189-05027

sub90189-06203

main67002-20842iAT190,CT19#,ST19#199510-199601

67111PANEL, FRONT DOOR, OUTER RH

main67111-20320iAT190,CT19#,ST19#199202-199601

67112PANEL, FRONT DOOR, OUTER LH

main67112-20340iAT190,CT19#,ST19#199202-199601

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-20220iAT190,CT19#,ST19#199202-199601

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-20210iAT190,CT19#,ST19#199202-199601

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-20110iAT190,CT19#,ST19#199202-199601

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-20090iAT190,CT19#,ST19#199202-199601

67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-20110iAT190,CT19#,ST19#199202-199601

67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-20080iAT190,CT19#,ST19#199202-199601

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67801-20040iAT190,CT19#,ST190,195..GX,SELS199202-199304

sub67801-20050

main67801-20050iAT190,CT19#,ST190,195..GX,KYO,SELS,TYPE1199202-199601

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67802-20030iST190..TYPE1199202-199304

sub67802-20040

main67802-20040iAT190,CT19#,ST19#199202-199601

67835CCOVER, FRONT DOOR SERVICE HOLE, NO.3 RH

main67835-20070iAT190,CT19#,ST19#199202-199601

67836CCOVER, FRONT DOOR SERVICE HOLE, NO.3 LH

main67836-20100iAT190,CT19#,ST19#199202-199601

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-20350iAT190,CT19#,ST19#199202-199601

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-20350iAT190,CT19#,ST19#199202-199601

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iAT190,CT19#,ST19#199504-199601

main67868-20040iAT190,CT19#,ST19#199202-199504

sub67868-20060

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67877-20030iAT190,CT19#,ST19#199202-199301

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iAT190,CT19#,ST19#199504-199601

main67868-20040iAT190,CT19#,ST19#199202-199504

sub67868-20060

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67877-20030iAT190,CT19#,ST19#199202-199301

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-12020iAT190,CT19#,ST19#199202-199601

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-20100iST190,191..LB199202-199601

main68101-20150iAT190,CT19#,ST19#..EXG,EXS,SELS199202-199601

main68101-20160iST190,191..LB199202-199302

sub68101-20100

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-20100iAT190,CT19#,ST19#..EXG,EXS,SELS199202-199601

main68102-20150iAT190,CT190,ST190,195..GX,KYO199202-199601

main68102-20160iST190,191..LB199202-199302

sub68102-20100

68141CRUN, FRONT DOOR GLASS, RH

main68141-20240iAT190,CT19#,ST19#199202-199601

68151CRUN, FRONT DOOR GLASS, LH

main68151-20070iAT190,CT19#,ST19#199202-199601

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68171-20060iAT190,CT19#,ST19#199202-199601

sub68171-20090

main68172-20050iAT190,CT19#,ST19#199202-199601

sub68172-20080

68610CHECK ASSY, FRONT DOOR

main68610-20110iAT190,CT19#,ST19#199202-199308

sub68610-20150

sub91655-40616

main68610-20150iAT190,CT19#,ST19#199308-199312

sub68610-20151

main68610-20151iAT190,CT19#,ST19#199312-199601

68617PIN, FRONT DOOR CHECK

main68617-20011iAT190,CT19#,ST19#199202-199601

main68617-20030iAT190,CT19#,ST19#199308-199505

sub68617-20011

68618BRACKET, FRONT DOOR CHECK ARM, RH

main68618-20010iAT190,CT19#,ST19#199202-199601

69811BPLATE, FRONT DOOR WINDOW REGULATOR BASE, RH

main69811-20090iAT190,CT19#,ST19#199202-199601

sub69811-20100

69812APLATE, FRONT DOOR WINDOW REGULATOR BASE, RH

main69812-20060iAT190,CT19#,ST19#199202-199601

sub69812-20070

9010506145

main90105-06145

9010506199

main90105-06199

9015960303

main90159-60303

9015960453

main90159-60453

9018906084

main90189-06084

9033335004

main90333-35004

9054109006

main90541-09006

9095001616

main90950-01616

9165140612

main91651-40612

9165160614

main91651-60614

9356016016

main93560-16016

42 parts on this diagram · 3 diagrams in section
