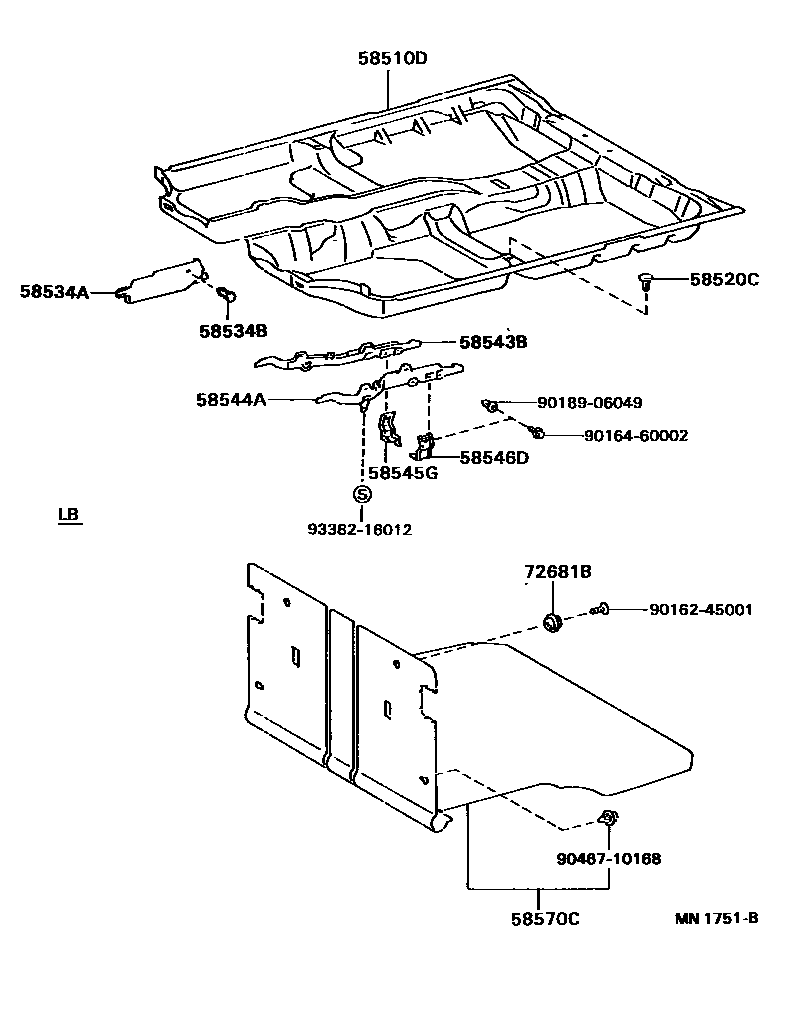

MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-2D110-B0iAT190,CT19#,ST19#..EXG,EXS,GX,SELS199402-199601

GRAY,TRIM1#

sub58510-2D400

main58510-2D110-C1iAT190,CT19#,ST19#..EXS,GX,SELS199202-199402

BLACK,TRIM2#

sub58510-2D400

main58510-2D110-E0iAT190,CT19#,ST19#..EXG,EXS,GX,SELS199202-199601

ANTELOPE,TRIM4#

sub58510-2D400

main58510-2D240-B0iAT190,CT19#,ST19#..EXG,EXS,GX,SELS199402-199601

sub58510-2D240

main58510-2D240-C0iAT190,CT195,ST190,191..EXS,GX,SELS199202-199402

sub58510-2D240

main58510-2D240-E0iAT190,CT195,ST190,191..EXG,EXS,GX,SELS199202-199601

sub58510-2D240

main58510-2D380-C0iST190,191..EXG199202-199305

BLACK,TRIM2#

main58510-2D380-E1iST190,191..EXG199202-199305

ANTELOPE,TRIM4#

main58510-2D390-C0iST190,191..EXG199202-199305

main58510-2D390-E1iST190,191..EXG199202-199305

main58510-2D430-B0iST190,191..LB199402-199601

GRAY,TRIM1#

sub58510-2D470

main58510-2D430-C0iST190,191..LB199202-199402

BLACK,TRIM2#

sub58510-2D470

main58510-2D440-B0iST190,191..LB199402-199601

sub58510-2D440

main58510-2D440-C0iST190..TYPE1199202-199402

sub58510-2D440

main58510-2D450-C0iST191..TYPE2199202-199305

BLACK,TRIM2#

main58510-2D460-C0iST191..TYPE2199202-199305

main58510-2D620-C0iCT190,ST195..EXS,GX,SELS199203-199402

sub58510-2D240

main58510-2D620-E0iCT190,ST195..EXS,GX,SELS199203-199402

sub58510-2D240

main58510-2D650-B0iCT190,ST190..KYO199402-199601

GRAY,TRIM1#

main58510-2D650-C0iCT190,ST190..KYO199211-199402

BLACK,TRIM2#

main58510-2D650-E0iCT190,ST190..KYO199211-199601

ANTELOPE,TRIM4#

main58510-2D660-B0iCT190,ST190..KYO199402-199601

main58510-2D660-C0iCT190,ST190..KYO199211-199402

main58510-2D660-E0iCT190,ST190..KYO199211-199601

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-C0iAT190,CT19#,ST19#..SED199202-199402

BLACK,TRIM2#,4#

sub90467-06016

sub90467-07049

main90467-06016-C0iAT190,CT19#,ST19#..SED199402-199601

BLACK,TRIM1#,4#

sub90467-06016

sub90467-07049

58534AMAT, TRANSMISSION COVER

main58534-20010iAT190,CT19#,ST190,195..GX,SELS199202-199601

58534BCLIP(FOR FLOOR CARPET CENTER COVER)

main90467-07042-C0iAT190,CT190,ST190,195..GX199202-199402

BLACK,TRIM2#,4#

sub90467-07042

sub90467-06175

main90467-07042-C0iAT190,CT19#,ST190,195..GX,SELS199402-199601

BLACK,TRIM1#,4#

sub90467-07042

sub90467-06175

58543BBRACKET, FLOOR CARPET, RH

main58543-20030iAT190,CT19#,ST19#199202-199601

58544ABRACKET, FLOOR CARPET, LH

main58544-20030iAT190,CT19#,ST19#199202-199601

58545GBRACKET, FLOOR CARPET, NO.2 RH

main58545-20010iAT190,CT19#,ST19#199202-199601

58546DBRACKET, FLOOR CARPET, NO.2 LH

main58546-20010iAT190,CT19#,ST19#199202-199601

58570CCARPET ASSY, REAR FLOOR

main58571-20130-C1iST190..TYPE1199202-199305

BLACK,TRIM2#

main58571-20140-C3iST191..TYPE2199202-199305

BLACK,TRIM2#

sub58571-20140

main58571-20150-C0iST190..TYPE1199305-199307

BLACK,TRIM2#

sub58571-20151

main58571-20151-C2iST190..TYPE1199307-199402

BLACK,TRIM2#

sub58571-20160

main58571-20152-B0iST190,191..LB199402-199412

SHADOW GRAY,TRIM1#

sub58571-20153

main58571-20153-B0iST190,191..LB199412-199601

SHADOW GRAY,TRIM1#

main58571-20160-C0iST191..TYPE2199305-199402

BLACK,TRIM2#

72681BHOOK, REAR SEATBACK LOCK, LOWER

main72681-20010-C0iST190,191..LB199202-199402

BLACK,TRIM2#

sub72681-20010

main72681-20010-P0iST190,191..LB199402-199412

SHADOW GRAY,TRIM1#

sub72681-20010

9016245001

main90162-45001

9016460002

main90164-60002

9018906049

main90189-06049

9046710168

main90467-10168

9338216012

main93382-16012

15 parts on this diagram · 1 diagram in section
