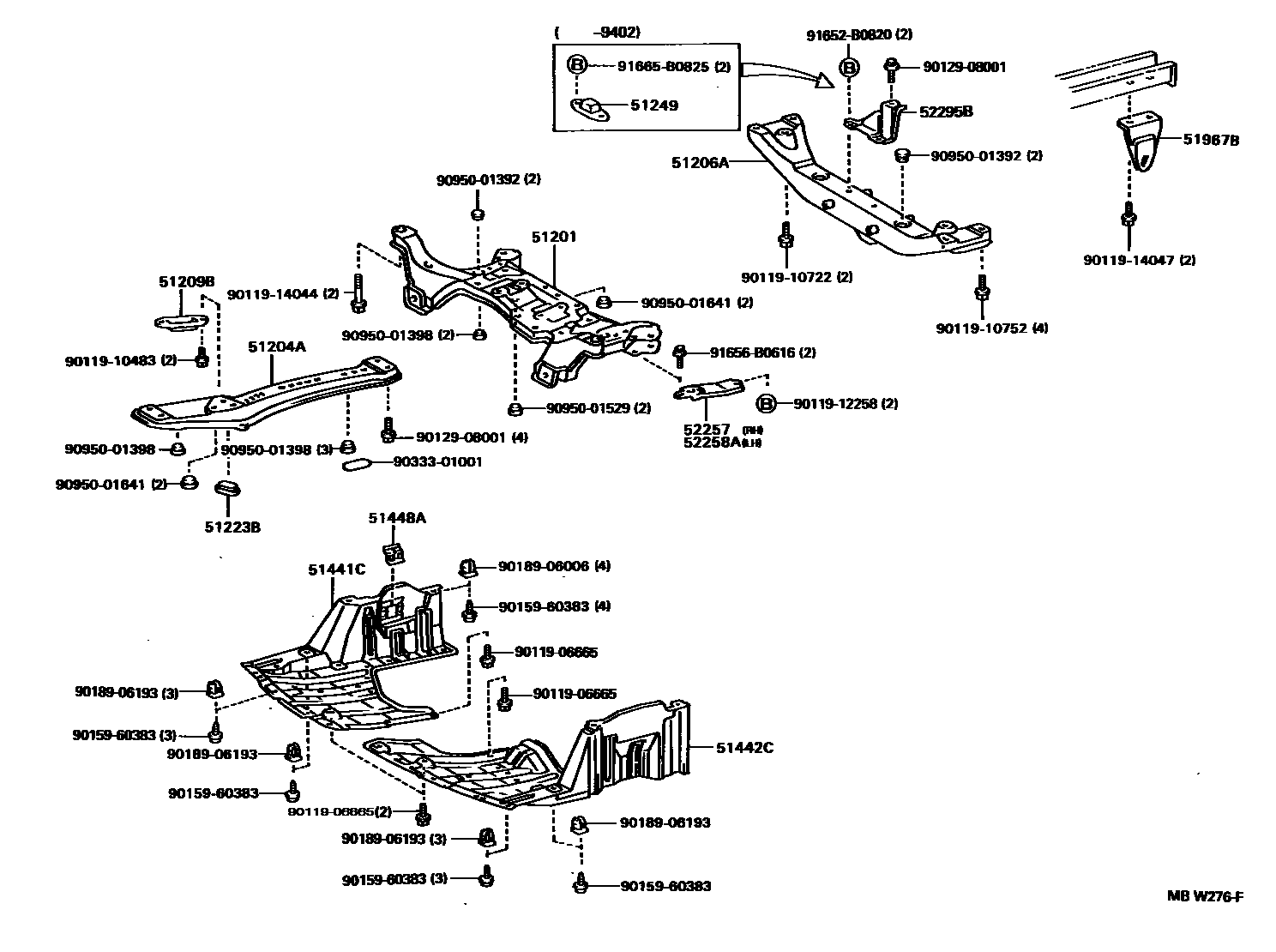

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-20250iAT190,CT190,ST190,191199202-199211

main51201-20251iAT190,CT190,ST190,191199211-199402

main51201-20252iAT190,CT190,ST190,191199402-199601

sub51201-20320

main51201-20290iCT195,ST195199202-199601

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-20110iAT190,CT190,ST190,191199202-199601

sub51204-20111

main51204-20120iCT195,ST195199202-199410

main51204-20121iCT195,ST195199410-199601

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-20050iAT190,CT190,ST190,191199202-199601

main51206-20060iCT195,ST195199202-199601

sub51206-21050

51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT

main51209-12010iST190..ATM;CT19#,ST191,195199307-199601

51223BCOVER, ENGINE MOUNTING HOLE

main51223-20050iAT190,CT19#,ST19#199202-199601

51249DAMPER, REAR SUSPENSION MEMBER

main51249-20020iAT190,CT190,ST190,191199202-199402

51441CCOVER, ENGINE UNDER, RH

main51441-20310iAT190,CT190,ST19#199202-199312

main51441-20311iAT190,CT190,ST19#199312-199405

main51441-20312iAT190,CT190,ST19#199405-199512

main51441-20313iAT190,CT190,ST19#199512-199601

main51441-20350iCT195199208-199312

main51441-20351iCT195199312-199405

main51441-20352iCT195199405-199512

main51441-20353iCT195199512-199601

51442CCOVER, ENGINE UNDER, LH

main51442-20370iAT190,CT190,ST190,195..MTM199202-199512

main51442-20371iAT190,CT190,ST190,195..MTM199512-199601

main51442-20380iAT190,CT190,ST190,191..ATM199202-199512

main51442-20381iAT190,CT190,ST190,191..ATM199512-199601

main51442-20390iST195..ATM199202-199512

main51442-20391iST195..ATM199512-199601

main51442-20430iCT195199208-199512

main51442-20431iCT195199512-199601

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20030iAT190,CT19#,ST19#199202-199601

51967BHOOK, TRANSPORT, REAR RH

main51967-20160iAT190,CT19#,ST19#199202-199305

main51967-20170iAT190,CT19#,ST19#199405-199601

main51968-20100iAT190,CT19#,ST19#199305-199307

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-20010iAT190,CT190,ST190,191199202-199601

main52257-20020iCT195,ST195199202-199601

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-20010iAT190,CT190,ST190,191199202-199601

main52258-20020iCT195,ST195199202-199601

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-32010iCT195,ST195199202-199601

sub52295-33010

52295BBRACE, REAR SUSPENSION MEMBER, RH

main52295-20020iAT190,CT190,ST190,191199402-199601

9011906665

main90119-06665

9011910483

main90119-10483

9011910722

main90119-10722

9011910752

main90119-10752

9011912258

main90119-12258

9011914044

main90119-14044

9011914047

main90119-14047

9012908001

main90129-08001

9015960383

main90159-60383

9018906006

main90189-06006

9018906193

main90189-06193

9033301001

main90333-01001

9095001392

main90950-01392

9095001398

main90950-01398

9095001529

main90950-01529

9095001641

main90950-01641

91652B0820

main91652-B0820

91656B0616

main91656-B0616

91665B0825

main91665-B0825

33 parts on this diagram · 2 diagrams in section
