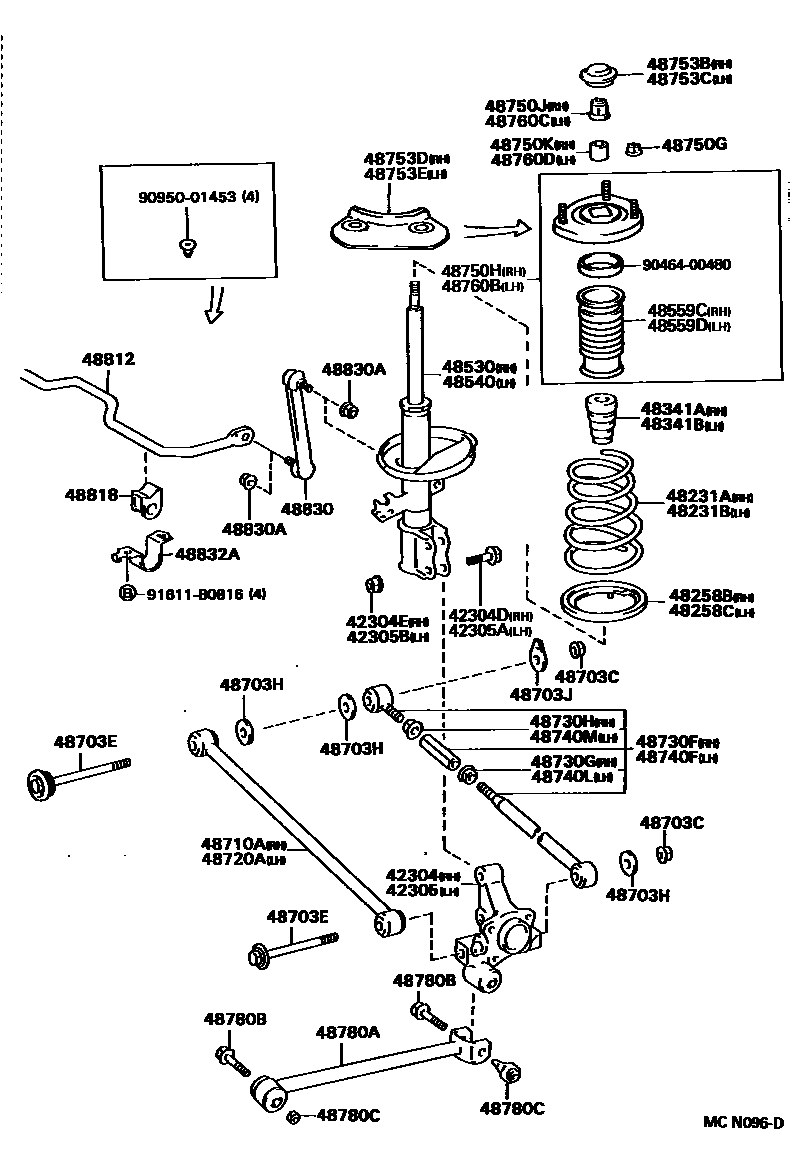

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-20140iAT190,CT190,ST190..EXS,GX,KYO,SELS,TYPE1199202-199601

sub42304-20320

main42304-20150iST191..EXS199202-199601

sub42304-20360

main42304-20160iAT190,CT190,ST190..EXS,GX,SELS,TYPE1199202-199601

sub42304-20300

main42304-20170iST191..EXG,TYPE2199202-199601

sub42304-20370

main42304-20200iCT195,ST195199202-199601

main42304-20210iCT195,ST195199202-199601

42304DBOLT (FOR REAR AXLE CARRIER RH)

main90105-15001×2iAT190,CT19#,ST19#199202-199601

42304ENUT (FOR REAR AXLE CARRIER RH)

main90179-15001×2iAT190,CT19#,ST19#199202-199601

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-20140iAT190,CT190,ST190..EXS,GX,KYO,SELS,TYPE1199202-199601

sub42305-20320

main42305-20150iST191..EXS199202-199601

sub42305-20360

main42305-20160iAT190,CT190,ST190..EXS,GX,SELS,TYPE1199202-199601

sub42305-20300

main42305-20170iST191..EXG,TYPE2199202-199601

sub42305-20370

main42305-20200iCT195,ST195199202-199601

main42305-20210iCT195,ST195199202-199601

42305ABOLT (FOR REAR AXLE CARRIER LH)

main90105-15001×2iAT190,CT19#,ST19#199202-199601

42305BNUT (FOR REAR AXLE CARRIER LH)

main90179-15001×2iAT190,CT19#,ST19#199202-199601

48231ASPRING, COIL, REAR RH

main48231-2D190iAT190;ST190..GX199202-199305

main48231-2D210iST190..EXG,EXS,SELS;CT190,ST191..EXG,EXS,GX,SELS199202-199305

main48231-2D220iCT195,ST195;ST190,191..LB199202-199305

main48231-2D660iST191..TYPE2199402-199601

sub48231-2D610

main48231-2D690iAT190;ST190..GX199305-199402

sub48231-2D890

main48231-2G060iCT195,ST195;ST190..TYPE1199402-199601

main48231-2G100iCT190,ST190..KYO199211-199601

main48231-2G140iCT195,ST195;ST190,191..LB199305-199307

main48231-2G210iST190,191..EXG,EXS,SELS199305-199402

main48231-2G220iCT190..EXS,GX,SELS199305-199311

main48231-2G230iST190,191..EXG,EXS,SELS199402-199601

main48231-2G250iCT195,ST195;ST190,191..LB199307-199402

main48231-2G500iST190..GX;AT190,CT190..EXS,GX,SELS199402-199601

48231BSPRING, COIL, REAR LH

main48231-2D190iAT190;ST190..GX199202-199305

main48231-2D210iST190..EXG,EXS,SELS;CT190,ST191..EXG,EXS,GX,SELS199202-199305

main48231-2D220iCT195,ST195;ST190,191..LB199202-199305

main48231-2D660iST191..TYPE2199402-199601

sub48231-2D610

main48231-2D690iAT190;ST190..GX199305-199402

sub48231-2D890

main48231-2G060iCT195,ST195;ST190..TYPE1199402-199601

main48231-2G100iCT190,ST190..KYO199211-199601

main48231-2G140iCT195,ST195;ST190,191..LB199305-199307

main48231-2G210iST190,191..EXG,EXS,SELS199305-199402

main48231-2G220iCT190..EXS,GX,SELS199305-199311

main48231-2G230iST190,191..EXG,EXS,SELS199402-199601

main48231-2G250iCT195,ST195;ST190,191..LB199307-199402

main48231-2G500iST190..GX;AT190,CT190..EXS,GX,SELS199402-199601

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-32010iAT190,CT19#,ST19#199202-199601

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-32010iAT190,CT19#,ST19#199202-199601

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-20190iAT190;ST190..GX,KYO199202-199601

main48341-20210iCT190;ST190..EXG,EXS,SELS,TYPE1199202-199601

main48341-32051iST191199202-199212

main48341-32052iST191199212-199601

main48341-32070iCT195,ST195199202-199211

main48341-32071iCT195,ST195199211-199601

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-20190iAT190;ST190..GX,KYO199202-199601

main48341-20210iCT190;ST190..EXG,EXS,SELS,TYPE1199202-199601

main48341-32051iST191199202-199212

main48341-32052iST191199212-199601

main48341-32070iCT195,ST195199202-199211

main48341-32071iCT195,ST195199211-199601

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-20690iAT190;ST190..GX,KYO199202-199402

main48530-20700iST190..EXG,EXS,SELS,TYPE1199202-199402

sub48530-2B310

main48530-20860iCT195,ST195199202-199402

main48530-29375iCT190199402-199601

main48530-29395iCT195,ST195199402-199601

sub48530-29715

main48530-29455iST191199408-199601

sub48530-29765

main48530-2B010iST191199202-199402

sub48530-29765

main48530-2B170iCT190199202-199402

main48530-2B340iST191199402-199408

main48530-2B470iST190..EXG,EXS,SELS,TYPE1199402-199601

sub48530-2B310

main48530-2B480iAT190;ST190..GX,KYO199402-199601

sub48530-29505

48540ABSORBER ASSY, SHOCK, REAR LH

main48540-20690iAT190;ST190..GX,KYO199202-199402

main48540-20700iST190..EXG,EXS,SELS,TYPE1199202-199402

sub48540-2B310

main48540-20860iCT195,ST195199202-199402

main48540-29075iCT190199402-199601

main48540-29095iCT195,ST195199402-199601

sub48540-29275

main48540-29155iST191199408-199601

sub48540-29315

main48540-2B010iST191199202-199402

sub48540-2B040

main48540-2B170iCT190199202-199402

main48540-2B340iST191199402-199408

main48540-2B470iST190..EXG,EXS,SELS,TYPE1199402-199601

sub48540-2B310

main48540-2B480iAT190;ST190..GX,KYO199402-199601

sub48540-29185

48559CCOVER, REAR SHOCK ABSORBER DUST, RH NO.1

main48559-20040iAT190,CT19#,ST19#199202-199601

main48559-20060iAT190,CT19#,ST19#199308-199601

TOYOGOMU

48559DCOVER, REAR SHOCK ABSORBER DUST, LH NO.1

main48559-20040iAT190,CT19#,ST19#199202-199601

main48559-20060iAT190,CT19#,ST19#199308-199601

TOYOGOMU

48703CNUT(FOR REAR SUSPENSION ARM)

main90179-12100×2iCT195,ST195199202-199601

BODY SIDE

main90179-14019×4iCT195,ST195199202-199402

CARRIER SIDE

48703EBOLT(FOR REAR SUSPENSION ARM)

main90119-12126×2iCT195,ST195199202-199601

main90901-09001×2iAT190,CT190,ST190,191199202-199601

main90901-19001×2iAT190,CT190,ST190,191199202-199601

main90901-19002×4iCT195,ST195199202-199601

main90901-19003×2iCT195,ST195199202-199601

48703HWASHER, NO.1(FOR REAR SUSPENSION ARM)

main90201-14017×6iAT190,CT190,ST190,191199202-199601

48703JWASHER, NO.2(FOR REAR SUSPENSION ARM)

main48715-32010×2iAT190,CT190,ST190,191199202-199601

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-20190iCT190,ST190..KYO199402-199408

main48710-20230iAT190,CT190,ST190,191..EXG,EXS,GX,SELS,TYPE1,TYPE2199402-199408

main48710-20270iCT195,ST195199202-199601

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-20190iAT190,CT190,ST190,191199202-199402

main48710-20230iAT190,CT190,ST190,191..EXG,EXS,GX,SELS,TYPE1,TYPE2199402-199408

main48710-20270iCT195,ST195199202-199601

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-20160iAT190,CT190,ST190,191199202-199601

main48730-20180iCT195,ST195199202-199601

48730GNUT, NO.1(FOR REAR SUSPENSION ARM NO.2 RH)

main90179-16022iAT190,CT190,ST190,191199202-199601

48730HNUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 RH)

main90179-16021iAT190,CT190,ST190,191199202-199601

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-20180iCT195,ST195199202-199601

main48740-20050iAT190,CT190,ST190,191199202-199601

48740LNUT, NO.1(FOR REAR SUSPENSION ARM NO.2 LH)

main90179-16022iAT190,CT190,ST190,191199202-199601

48740MNUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 LH)

main90179-16021iAT190,CT190,ST190,191199202-199601

48750GNUT(FOR REAR SUSPENSION SUPPORT)

main90179-08122×6iAT190,CT19#,ST19#199202-199601

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-20100iAT190,CT19#,ST19#199202-199601

sub48750-21020

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90179-14015iAT190,CT19#,ST19#199202-199506

main94184-61400iAT190,CT19#,ST19#199506-199601

48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90387-15012iAT190,CT19#,ST19#199202-199407

main90387-15027iAT190,CT19#,ST19#199407-199601

48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH

main48753-20040iAT190,CT19#,ST19#199202-199601

48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH

main48753-20040iAT190,CT19#,ST19#199202-199601

48753DCOVER, REAR SUSPENSION SUPOPORT, NO.2 RH

main48753-20060iST190,191..LB199305-199601

48753ECOVER, REAR SUSPENSION SUPOPORT, NO.2 LH

main48753-20060iST190,191..LB199305-199601

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-20100iAT190,CT19#,ST19#199202-199601

sub48750-21020

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90179-14015iAT190,CT19#,ST19#199202-199506

main94184-61400iAT190,CT19#,ST19#199506-199601

48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90387-15012iAT190,CT19#,ST19#199202-199407

main90387-15027iAT190,CT19#,ST19#199407-199601

48780AROD ASSY, STRUT, REAR

main48780-12010×2iCT195,ST195199202-199601

sub48780-32060

main48780-20080×2iAT190,CT190,ST190,191199202-199601

48780BBOLT(FOR STRUT ROD)

main90119-12131×4iAT190,CT19#,ST19#199202-199601

48780CNUT(FOR STRUT ROD)

main90179-12062×2iAT190,CT19#,ST19#199202-199407

CARRIER SIDE

main90179-12091×2iAT190,CT19#,ST19#199407-199601

CARRIER SIDE

main90179-12114×2iAT190,CT19#,ST19#199202-199601

BODY SIDE

48812BAR, STABILIZER, REAR

main48812-05030iST190,191..EXG,EXS,SELS,TYPE1,TYPE2199408-199601

main48812-20550iST190..EXG,EXS,SELS,TYPE1199202-199402

main48812-20700iST191199202-199402

main48812-20740iST195199202-199203

OD=15

main48812-20810iST195199203-199305

OD=14

48818BUSH, STABILIZER, REAR

main48818-20260×2iST191199202-199402

main48818-20280×2iST190..EXG,EXS,SELS,TYPE1199202-199402

main48818-20290×2iST195199202-199203

main48818-32090×2iST195199203-199305

48830LINK ASSY, REAR STABILIZER

main48830-32010×2iST190,191..EXG,EXS,SELS,TYPE1,TYPE2199202-199601

sub48830-20010

main48830-32040×2iCT195,ST195199202-199601

48830ANUT(FOR REAR STABILIZER LINK)

main90179-10054×4iST195;CT195,ST190,191..EXG,EXS,SELS,TYPE1,TYPE2199202-199601

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-20080×2iST190,191..EXG,EXS,SELS,TYPE1,TYPE2199202-199601

main48832-32050iCT195,ST195199202-199601

main48832-32070iCT195,ST195199202-199601

9046400480

main90464-00480

9095001453

main90950-01453

91611B0816

main91611-B0816

50 parts on this diagram · 2 diagrams in section
