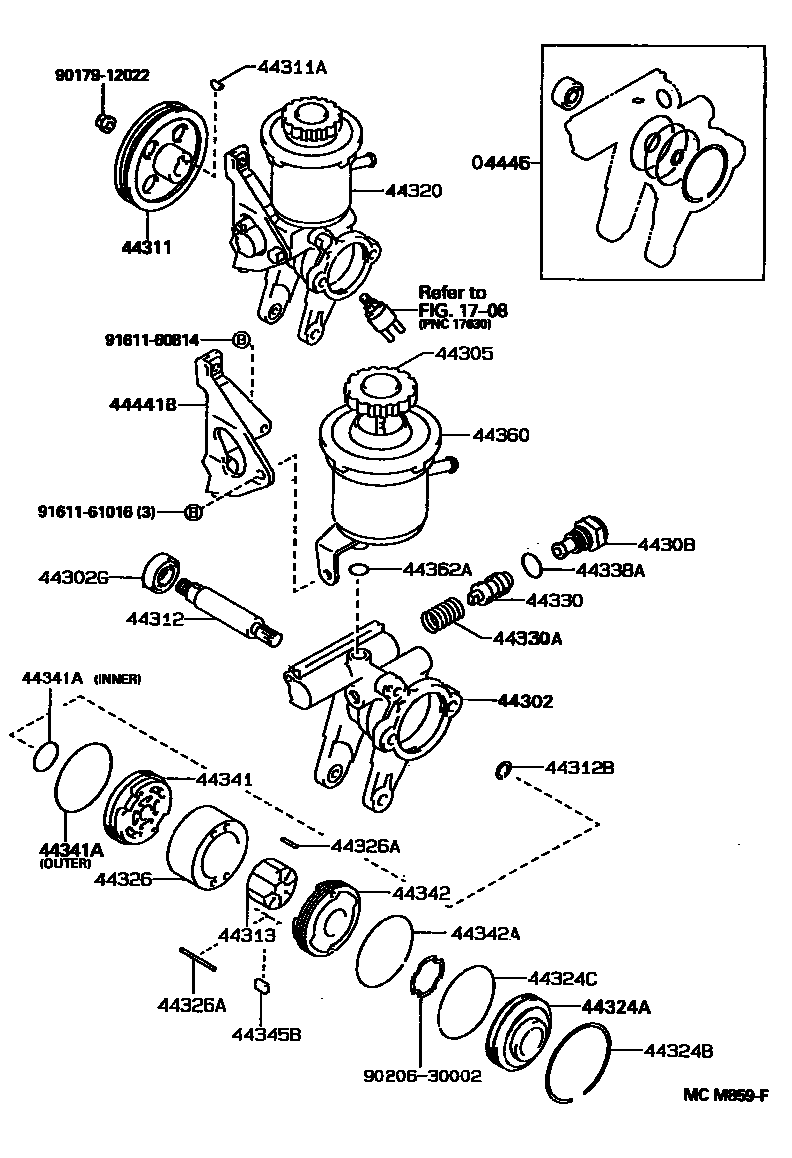

VANE PUMP & RESERVOIR (POWER STEERING)
1708
44302HOUSING SUB-ASSY, VANE PUMP, FRONT
44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
sub44305-12040
sub44305-28050
sub44305-20050
sub44305-20050
sub44305-22060
44311AKEY, VANE PUMP PULLEY
44312SHAFT, VANE PUMP
44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44313ROTOR, VANE PUMP
44320PUMP ASSY, VANE
44324AHOUSING, PUMP, REAR
44324BRING, HOLE SNAP(FOR PUMP HOUSING REAR)
44326RING, CAM(FOR VANE PUMP)
44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)
44330VALVE ASSY, FLOW CONTROL
sub44330-35191
sub44330-35201
sub44330-35211
sub44330-35221
sub44330-35231
sub44330-35241
sub44330-32730
sub44330-32740
sub44330-32750
sub44330-32760
sub44330-32770
sub44330-32780
sub44330-32730
sub44330-32730
sub44330-32740
sub44330-32740
sub44330-32750
sub44330-32750
sub44330-32760
sub44330-32760
sub44330-32770
sub44330-32770
sub44330-32780
sub44330-32780
sub44330-32670
sub44330-32680
sub44330-32690
sub44330-32700
sub44330-32710
sub44330-32720
44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44338ARING, O(FOR PRESSURE PORT UNION)
sub90301-19013
44341PLATE, VANE PUMP SIDE, FRONT
44342PLATE, VANE PUMP SIDE, REAR
44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)
44345BPLATE, VANE PUMP
44362ARING, O(FOR VANE PUMP OIL RESERVOIR)
sub90301-11016
44441BBRACKET, PUMP, FRONT
9017912022
main90179-12022
9020630002
main90206-30002
9161160814
main91611-60814
9161161016
main91611-61016
32 parts on this diagram · 3 diagrams in section
