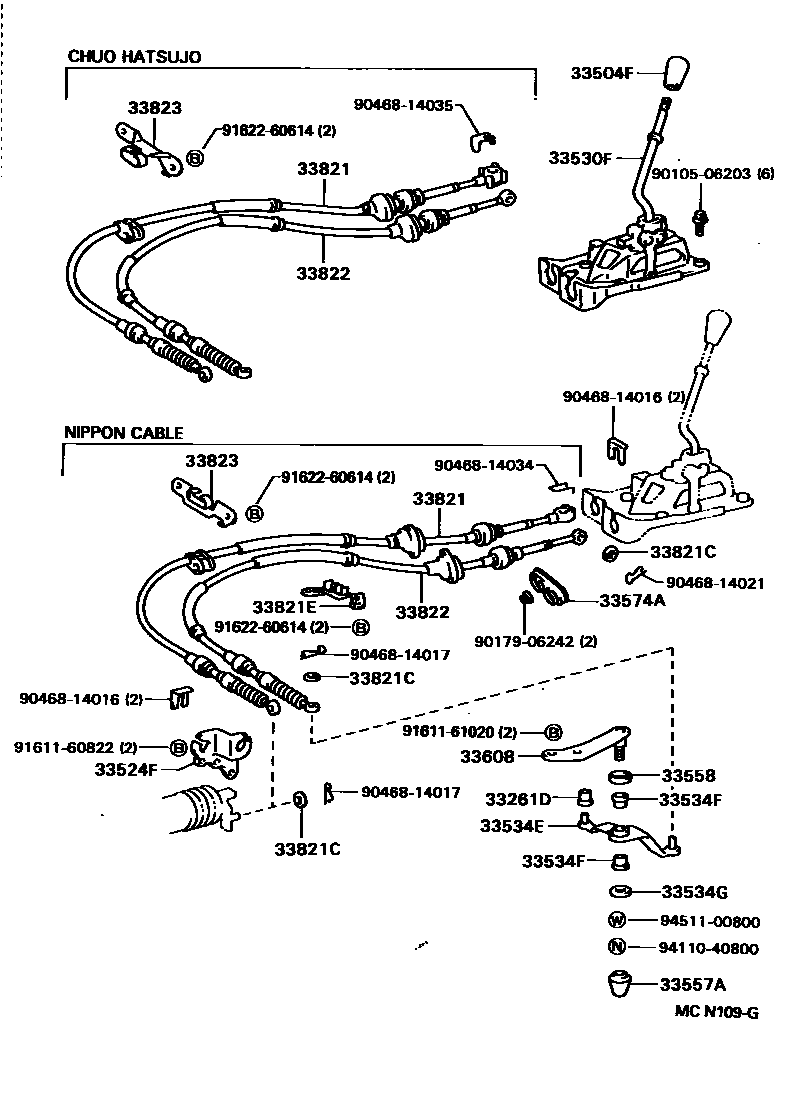

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

33261DBUSH (FOR SHIFT & SELECT LEVER)

main33557-33010iAT190..MTM199408-199601

main90389-10009iAT190..MTM199202-199408

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12180-C0iAT190,CT19#,ST190,195..MTM..(EXS,GX,SELS)199202-199402

BLACK,TRIM2#

sub33504-12180

main33504-12180-C0iAT190,CT19#,ST190,195..MTM..(EXS,GX,KYO,SELS)199402-199601

BLACK,TRIM1#,4#

sub33504-12180

main33504-12180-C0iAT190,CT19#,ST190,195..MTM..(EXS,GX,SELS)199202-199402

BLACK,TRIM2#,4#

sub33504-12180

main33504-12180-E1iAT190,CT19#,ST190,195..MTM..(EXS,GX,SELS)199202-199402

ANTELOPE,TRIM4#

sub33504-12180

main33504-12200-C0iST190..MTM..EXG199402-199601

BLACK,TRIM1#,4#

sub33504-12200

sub33504-22140

main33504-12200-C0iST190..MTM..TYPE1199402-199601

BLACK,TRIM1#

sub33504-12200

sub33504-22140

main33504-12200-C0iST190..MTM..(EXG,TYPE1)199202-199402

BLACK,TRIM2#

sub33504-12200

sub33504-22140

main33504-12200-E1iST190..MTM..EXG199202-199402

ANTELOPE,TRIM4#

sub33504-12200

sub33504-22140

main33542-20100-C0iCT190,ST190..ATM..KYO199202-199402

BLACK,TRIM2#

sub33542-20100

main33542-20100-C0iCT190,ST190..ATM..KYO199202-199402

BLACK,TRIM2#,4#

sub33542-20100

main33542-20100-C0iAT190,CT190,ST19#..SED..ATM199402-199601

BLACK,TRIM1#,4#

sub33542-20100

main33542-20100-E0iAT190,CT190,ST19#..ATM..(EXG,EXS,GX,SELS)199202-199402

ANTELOPE,TRIM4#

sub33542-20100

main33542-20140-C0iST190,191..LB..ATM199402-199601

BLACK,TRIM1#

sub33542-20140

main33542-20140-C0iST190,191..LB..ATM199202-199402

BLACK,TRIM2#

sub33542-20140

33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

main33524-12011iAT190..MTM199202-199601

main33524-20010iCT195,ST195..MTM199202-199601

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-20570iAT190,CT190,ST190..MTM199202-199601

main33530-20590iCT195,ST195..MTM199202-199601

33534ECRANK, SELECTING BELL, NO.2

main33534-12090iCT195,ST195..MTM199202-199311

main33534-12091iCT195,ST195..MTM199311-199601

main33534-16050iAT190..MTM199202-199408

main33534-16051iAT190..MTM199408-199601

main33534-32030iCT190,ST190..MTM199202-199205

main33534-33010iCT190,ST190..MTM199205-199601

33534FBUSH (FOR SELECTING BELLCRANK NO.2)

main90386-12022iAT190,CT19#,ST190,195..MTM199202-199601

33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)

main90201-08028iAT190,CT19#,ST190,195..MTM199202-199601

33557ACOVER, SELECTING BELLCRANK DUST, NO.1

main33557-32010iAT190,CT19#,ST190,195..MTM199202-199601

33558COVER, SELECTING BELLCRANK DUST, NO.2

main33558-10030iAT190..MTM199202-199601

main33558-12010iCT195,ST195..MTM199202-199311

main33558-32010iCT190,ST190..MTM199202-199601

33574ARETAINER, SHIFT CABLE GROMMET, NO.1

main33574-20350iAT190,CT19#,ST190,195..MTM199202-199601

33608SUPPORT SUB-ASSY, SELECTING BELLCRANK

main33608-12030iCT195,ST195..MTM199202-199311

main33608-12031iCT195,ST195..MTM199311-199601

main33608-16020iAT190..MTM199202-199408

main33608-16021iAT190..MTM199408-199601

main33608-32021iCT190,ST190..MTM199202-199205

main33608-33010iCT190,ST190..MTM199205-199601

33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)

main33821-20820iCT195199208-199601

main33821-2B070iAT190..MTM199202-199601

NIPPON CABLE

main33821-2B080iAT190..MTM199202-199601

CHUO HATSUJO

main33821-2B090iST190..MTM199202-199601

NIPPON CABLE

main33821-2B100iST190..MTM199202-199601

CHUO HATSUJO

main33821-2B120iCT190..MTM199202-199402

main33821-2B120iCT190..MTM199402-199601

CHUO HATSUJO

main33821-2B150iST195..MTM199202-199601

33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)

main90201-08023iAT190,CT19#,ST190,195..MTM199202-199601

SHIFT LEVER SIDE

main90201-08077iAT190,CT19#,ST190,195..MTM199202-199601

33821ECLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)

main90949-01681iST195..ATM199202-199601

main90949-01805iAT190,CT19#,ST190,195..MTM199202-199601

main90949-01807iAT190..ATM199202-199601

main90949-01810iCT190,ST190,191..ATM199202-199601

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33822-20420iAT190..MTM199202-199601

NIPPON CABLE

main33822-20430iAT190..MTM199202-199601

CHUO HATSUJO

main33822-20440iST190..MTM199202-199601

NIPPON CABLE

main33822-20450iST190..MTM199202-199601

CHUO HATSUJO

main33822-20470iCT190..MTM199402-199601

CHUO HATSUJO

main33822-20470iCT190..MTM199202-199402

main33822-20500iST195..MTM199202-199601

main33822-20520iCT195199208-199601

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-20070iAT190..ATM199202-199601

main33823-20080iCT190,ST190,191..ATM199202-199601

main33823-20090iST195..ATM199202-199601

main33823-20100iAT190,CT190,ST190..MTM199202-199601

NIPPON CABLE

main33823-20110iCT195,ST195..MTM199202-199601

main33823-20120iAT190,CT190,ST190..MTM199202-199601

CHUO HATSUJO

9010506203

main90105-06203

9017906242

main90179-06242

9046814016

main90468-14016

9046814017

main90468-14017

9046814021

main90468-14021

9046814034

main90468-14034

9046814035

main90468-14035

9161160822

main91611-60822

9161161020

main91611-61020

9162260614

main91622-60614

9411040800

main94110-40800

9451100800

main94511-00800

28 parts on this diagram · 7 diagrams in section
