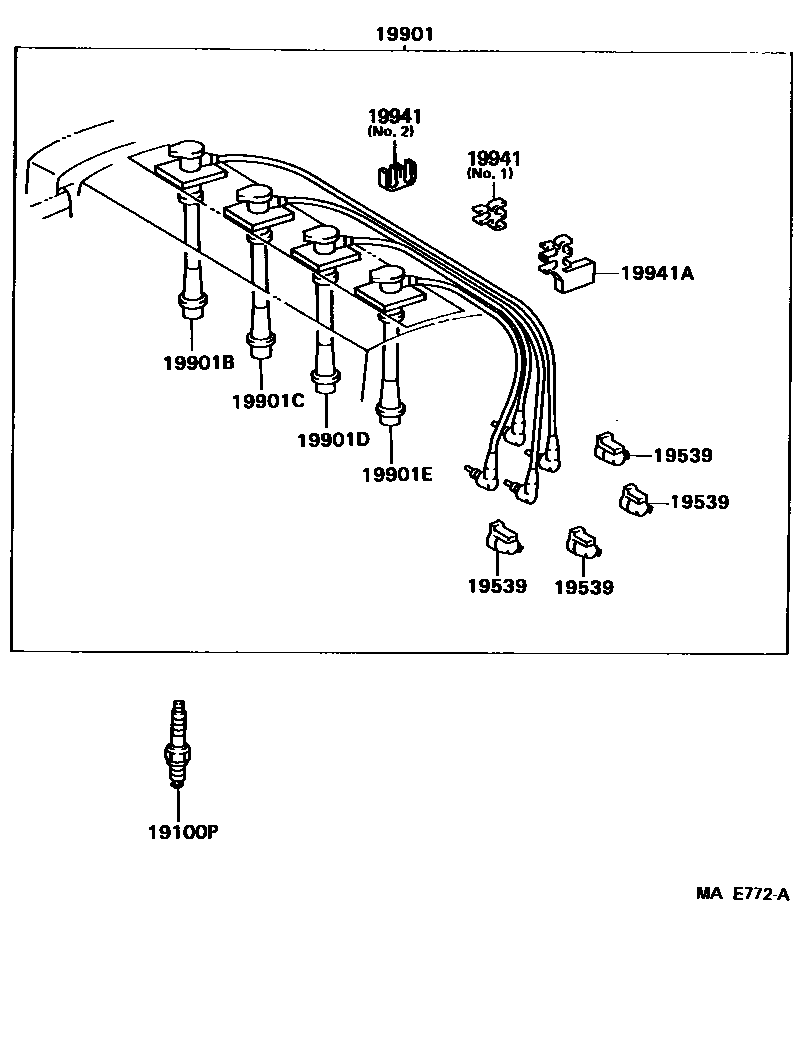

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

19100PPLUG, SPARK

main90919-01164×4i4AFE..AT190199202-199601

main90919-01184×4i3SFE,4SFE..ST19#199202-199601

19539HOLDER, RESISTIVE CODE, NO.4

main19532-50010×2i4AFE..AT190199202-199601

main19539-11010i4AFE..AT190199202-199601

main19539-46010i4AFE..AT190199202-199601

main19539-62020i3SFE..ST191,195199202-199412

main19539-74040i3SFE..ST191,195199412-199601

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21551i4SFE..ST190199202-199402

main90919-21583i4SFE..ST190199402-199601

main90919-22302i3SFE..ST191,195199202-199402

main90919-22327i4AFE..AT190199202-199601

sub90919-22419

main90919-22369i3SFE..ST191,195199402-199407

main90919-22370i3SFE..ST191,195199402-199601

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-15211i4AFE..AT190199202-199601

sub90919-15590

main90919-15330i3SFE..ST191,195199202-199402

main90919-15332i3SFE..ST191,195199202-199402

main90919-15348×2i4SFE..ST190199308-199402

main90919-15350×2i4SFE..ST190199202-199308

main90919-15400i4SFE..ST190199407-199601

sub90919-15578

main90919-15403i4SFE..ST190199402-199407

main90919-15406i3SFE..ST191,195199402-199407

main90919-15409i3SFE..ST191,195199407-199601

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-15131i4SFE..ST190199308-199402

main90919-15135i4SFE..ST190199202-199308

main90919-15210i4AFE..AT190199202-199601

sub90919-15591

main90919-15258i3SFE..ST191,195199202-199402

main90919-15260i3SFE..ST191,195199202-199402

main90919-15401i4SFE..ST190199407-199601

sub90919-15579

main90919-15404i4SFE..ST190199402-199407

main90919-15408i3SFE..ST191,195199402-199407

main90919-15411i3SFE..ST191,195199407-199601

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-15132i4SFE..ST190199308-199402

main90919-15136i4SFE..ST190199202-199308

main90919-15209i4AFE..AT190199202-199601

sub90919-15592

main90919-15331i3SFE..ST191,195199202-199402

main90919-15333i3SFE..ST191,195199202-199402

main90919-15402i4SFE..ST190199407-199601

sub90919-15580

main90919-15405i4SFE..ST190199402-199407

main90919-15407i3SFE..ST191,195199402-199407

main90919-15410i3SFE..ST191,195199407-199601

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-15208i4AFE..AT190199202-199601

sub90919-15593

main90919-15259i3SFE..ST191,195199202-199407

main90919-15261i3SFE..ST191,195199407-199601

main90919-15349×2i4SFE..ST190199308-199601

sub90919-15581

main90919-15351×2i4SFE..ST190199202-199308

19941CLAMP, RESISTIVE CORD, NO.1

main90464-00561i4AFE..AT190199202-199601

main90464-00655i4AFE..AT190199202-199601

19941ACLAMP(FOR RESISTIVE CORD)

main90929-01273i4AFE..AT190199202-199601

9 parts on this diagram · 6 diagrams in section
