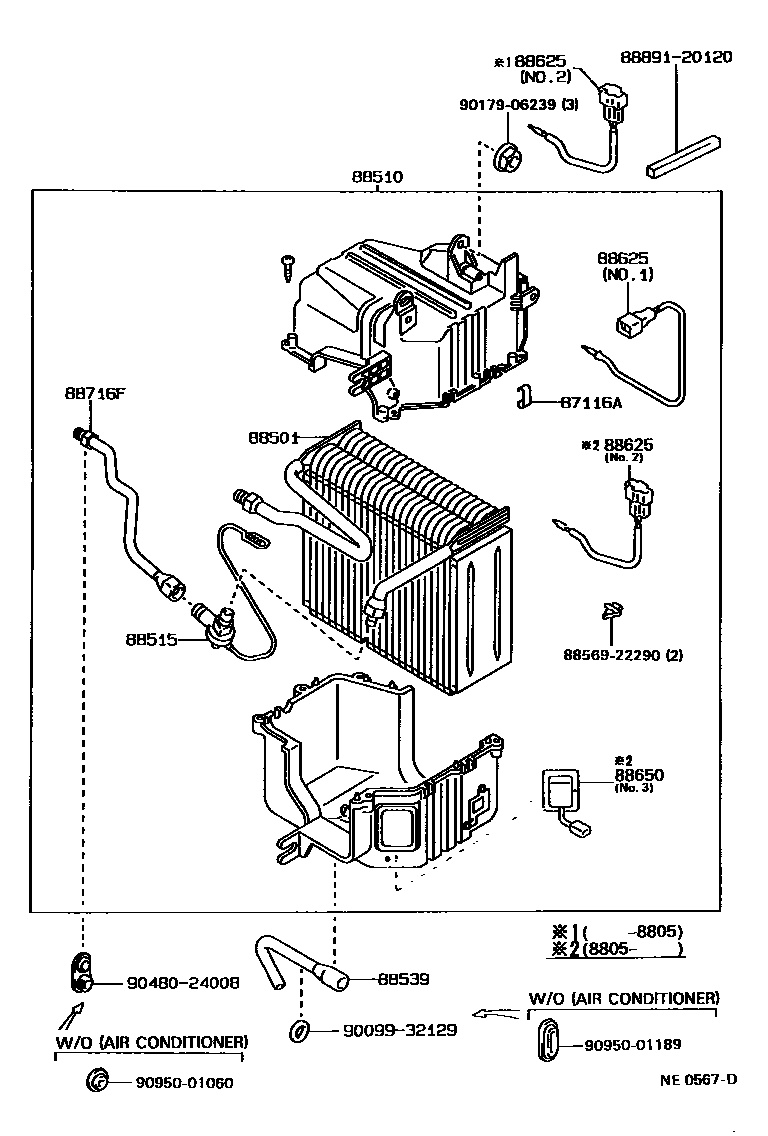

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1LEVER TYPE 0003 1PUSH TYPE 0004 1COOL BOX

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010iAT17#,ST170..GX198712-199211

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-20220iAT17#,ET176,ST17#198712-199211

88510UNIT ASSY, COOLER

main88510-20780iCT17#..DX,GX198712-198805

sub88510-20781

main88510-20800iCT170..GX198906-198911

main88510-20800iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z198805-199202

main88510-20810iAT175..GX198805-199211

88515VALVE, COOLER EXPANSION

main88515-16040iAT17#,ET176,ST17#¥7,100198712-199211

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-20160iCT170..EXS,MX198712-199211

main88539-20180iAT175..EXS198808-199202

88625THERMISTOR, COOLER, NO.1

main88625-12070iCT170..EXS198712-198805

main88625-12070iAT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-198805

main88625-20230iCT170;ST170..SELS;AT17#..GX,SELS198805-199202

main88625-20230iCT170;ST170..SELS;AT17#..GX,SELS198805-199202

main88625-24050iET176;AT17#,ST17#..DX,EXG,EXS,G,GT,GTR,MX,STD,SXR,X,Z198805-199211

main88625-24050iCT170..4FC..GX198911-199106

main88625-24050iET176198911-199211

main88625-32040iCT170..EXS198712-198805

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-20450iAT170198712-198911

main88650-20460iST171..5F;ST171..4FC..(GT,GTR)198712-198901

main88650-20470iCT176198712-198911

main88650-20470iCT170198712-198911

main88650-20470iCT176198911-199211

main88650-20470iCT170198911-199202

main88650-20480iCT176198712-198911

main88650-20480iCT176198911-199211

main88650-20490iAT17#,CT170,ST170..GX,SELS,Z198712-199202

main88650-20500iAT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X,Z198712-199202

main88650-20500iAT175;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X,Z199104-199202

main88650-20510iST17#198712-198911

main88650-20590iAT17#,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-199202

main88650-20590iAT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SXR,X,Z198712-199202

main88650-20590iCT170..GX198906-198911

main88650-20600iET176..4F198712-198911

main88650-20610iET176..4F198712-198911

main88650-20620iAT175198808-198911

main88650-20640iET176..3FC198712-198911

main88650-20650iET176..3FC198712-198911

main88650-20750iST17#198911-199111

main88650-20750iST17#199111-199202

main88650-20760iAT17#199001-199202

NO.1

main88650-20760iAT17#198911-199001

main88650-20770iET176..4F198911-199211

main88650-20780iET176..4F198911-199211

main88650-20790iET176..3FC198911-199211

main88650-20800iET176..3FC198911-199211

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-2B420iET176;AT17#,ST17#..DX,EXG,EXS,G,GT,GTR,MX,STD,SXR,X,Z¥2,780198712-199211

8856922290CLAMP (FOR COOLER RELAY)

main88569-22290

8889120120PACKING (FOR COOLER)

main88891-20120

9009932129

main90099-32129

9017906239

main90179-06239¥140

9048024008

main90480-24008

9095001060

main90950-01060¥200

9095001189

main90950-01189¥240

15 parts on this diagram · 4 diagrams in section
