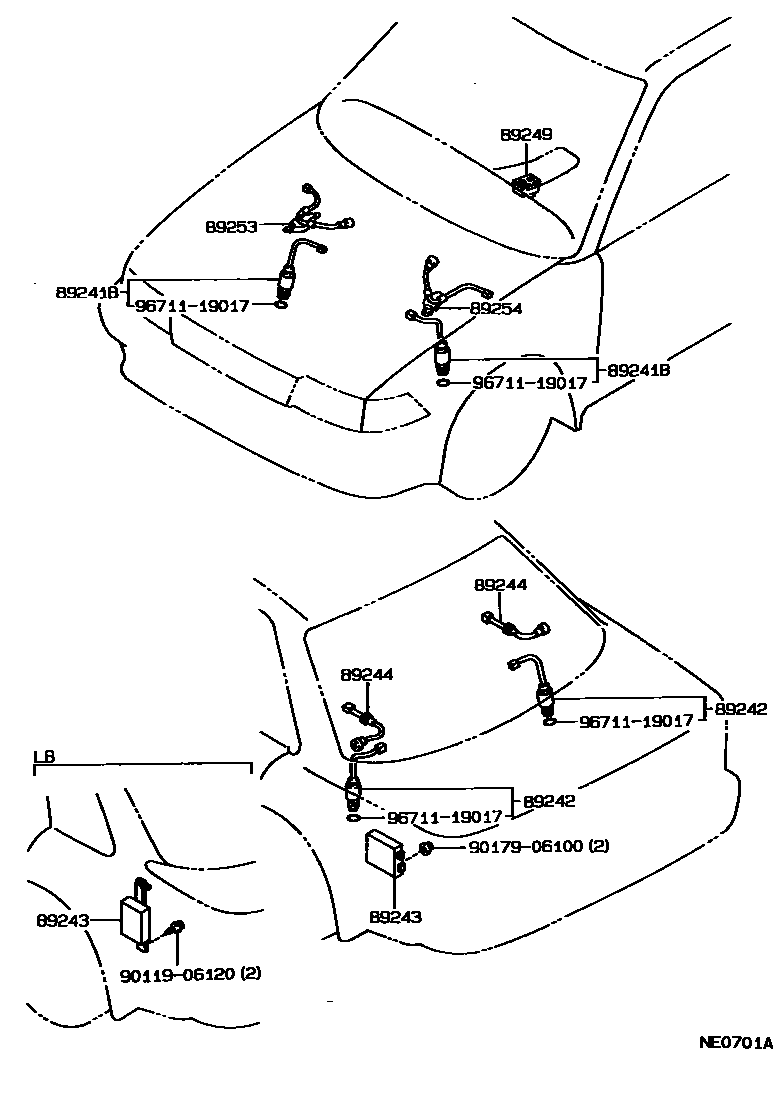

ELECTRONIC MODULATED SUSPENSION

89241BACTUATOR, ABSORBER CONTROL

main89241-20020iST171198712-199202

89242ACTUATOR, ABSORBER CONTROL, RR

main89242-20020iST171198712-199202

89243COMPUTER, ABSORBER CONTROL

main89243-20060iST171..LB198712-198805

sub89243-20061

main89243-20061iST171..LB198805-199202

main89243-20070iST171..SED198712-198805

sub89243-20071

main89243-20071iST171..SED198805-199202

89244WIRE, ABSORBER CONTROL, REAR

main89244-20010iST171198909-198911

main89244-32010iST171198712-199202

89249SWITCH, ABSORBER CONTROL

main89249-20020iST171198712-199202

89253WIRE, ABSORBER CONTROL, FRONT RH

main89253-20020iST171198712-199202

89254WIRE, ABSORBER CONTROL, FRONT LH

main89254-20020iST171198712-199202

9011906120

main90119-06120

9017906100

main90179-06100

9671119017

main96711-19017

10 parts on this diagram · 1 diagram in section
