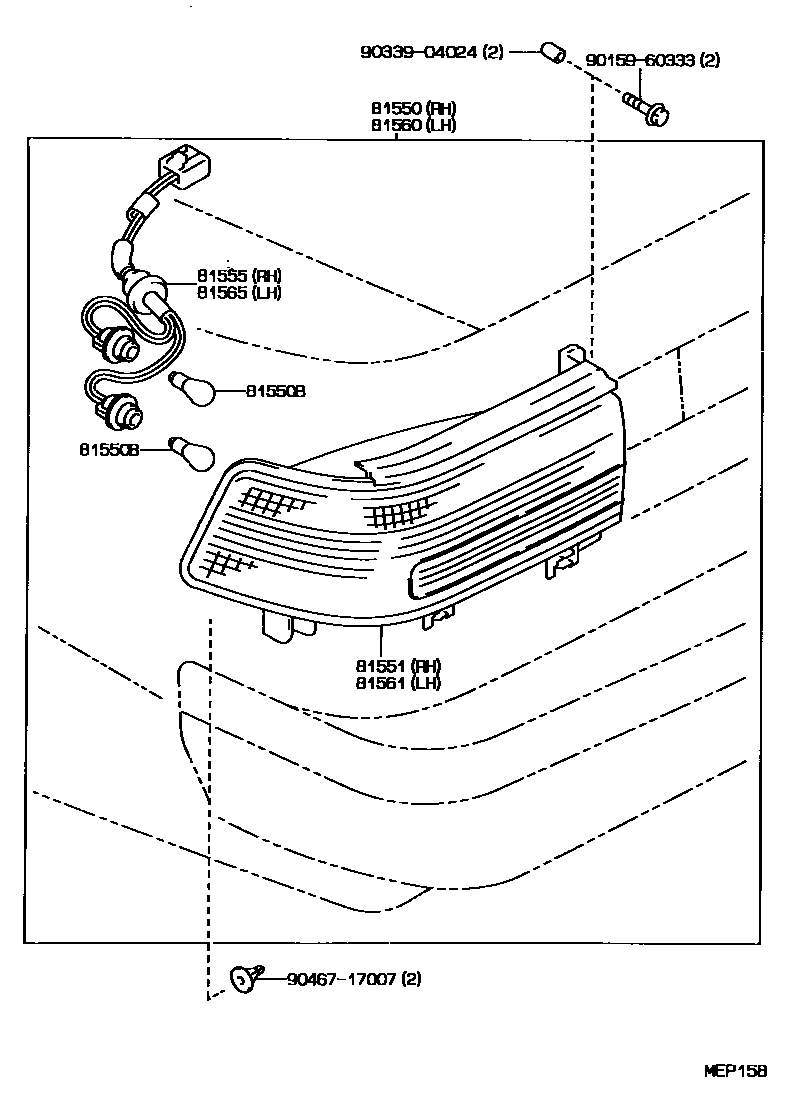

REAR COMBINATION LAMP

0001 1 0002 1 0003 1 0004 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-20840iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,MX,SXR¥26,000198712-198911

main81550-20850iAT170..DX,STD¥26,000198712-198911

main81550-20870iST17#..LB¥21,000198712-198911

main81550-2B120iAT17#,CT170,ST17#..SED¥16,800198911-199202

main81550-2B130iST17#..LB¥20,200198911-199202

main81550-95503iCT176,ET176¥18,200198712-199211

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210iAT17#,CT170,ST17#¥170198712-199211

main99132-21210iAT17#,CT17#,ET176,ST17#¥190198712-199211

81551LENS, REAR COMBINATION LAMP, RH

main81551-20840iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,MX,SXR¥19,000198712-198911

main81551-20850iAT170..DX,STD¥19,000198712-198911

main81551-20870iST17#..LB¥13,900198712-198911

main81551-2B120iAT17#,CT170,ST17#..SED¥14,600198911-199202

main81551-2B130iST17#..LB¥17,200198911-199202

main81551-95503iCT176,ET176¥11,400198712-199211

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-20840iAT17#,CT170,ST17#..SED¥2,050198712-199202

main81555-20870iST17#..LB¥2,440198712-199202

main81555-95503iCT176,ET176¥3,110198712-199211

81560LAMP ASSY, REAR COMBINATION, LH

main81560-20770iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,MX,SXR¥26,000198712-198911

main81560-20780iAT170..DX,STD¥26,000198712-198911

main81560-20800iST17#..LB¥21,000198712-198911

main81560-20860iAT17#,CT170,ST17#..SED¥16,800198911-199202

main81560-20870iST17#..LB¥20,200198911-199202

main81560-95502iCT176,ET176¥18,200198712-199211

81561LENS, REAR COMBINATION LAMP, LH

main81561-20770iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,MX,SXR¥19,000198712-198911

main81561-20780iAT170..DX,STD¥19,000198712-198911

main81561-20800iST17#..LB¥13,900198712-198911

main81561-20860iAT17#,CT170,ST17#..SED¥14,600198911-199202

main81561-20870iST17#..LB¥17,200198911-199202

main81561-95502iCT176,ET176¥11,400198712-199211

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-20840iAT17#,CT170,ST17#..SED¥2,050198712-199202

main81555-20870iST17#..LB¥2,440198712-199202

main81555-95503iCT176,ET176¥3,110198712-199211

9015960333

main90159-60333¥120

9033904024

main90339-04024¥100

9046717007

main90467-17007¥240

10 parts on this diagram · 4 diagrams in section
