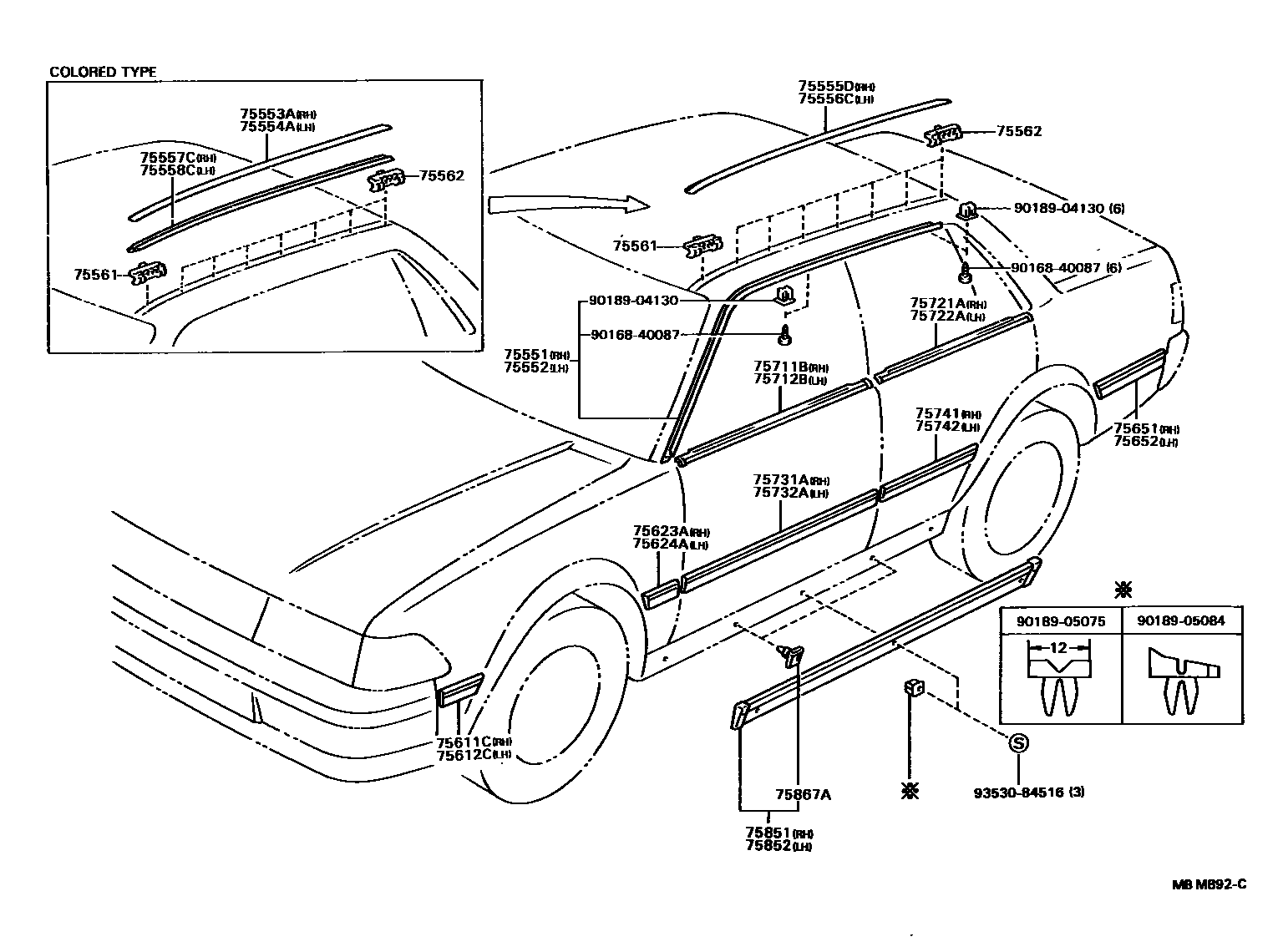

SIDE MOULDING

0001 1 0002 1�-��- �-�- 0003 1

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-20280iAT17#,CT170,ST17#..SED198712-199202

main75551-20310iST17#..LB198712-199202

main75551-20350iAT17#,CT170,ST17#..SED198905-199202

main75551-20360iST17#..LB198905-199202

main75551-94700iST171..4FC..EXG199005-199007

main75551-95505iCT176,ET176198712-199211

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-20280iAT17#,CT170,ST17#..SED198712-199202

main75552-20310iST17#..LB198712-199202

main75552-20350iAT17#,CT170,ST17#..SED198905-199202

main75552-20360iST17#..LB198905-199202

main75552-94700iST171..4FC..EXG199005-199007

main75552-95505iCT176,ET176198712-199211

75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75553-20130iAT17#,CT170,ST17#..EXG,EXS,GTR,MX,SELS,SXR198712-199202

main75553-20130iAT175;AT170,CT170,ST17#..EXG,EXS,GTR,MX,SXR198810-198911

main75553-20140iST17#..LB198712-199202

main75553-94700iST171..4FC..EXG199005-199007

75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75554-20110iAT17#,CT170,ST17#..EXG,EXS,GTR,MX,SELS,SXR198712-199202

main75554-20110iAT175;AT170,CT170,ST17#..EXG,EXS,GTR,MX,SXR198810-198911

main75554-20120iST17#..LB198712-199202

main75554-94700iST171..4FC..EXG199005-199007

75555MOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75555-94700iST171..4FC..EXG199005-199007

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-20030iAT17#,CT170,ST170..DX,GX,STD198712-199202

main75555-95500iCT176,ET176198712-199211

75556MOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75556-94700iST171..4FC..EXG199005-199007

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-20030iAT17#,CT170,ST170..DX,GX,STD198712-199202

main75556-95500iCT176,ET176198712-199211

75557CMOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 RH

main75557-20050iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,MX,SXR198712-199202

main75557-20050iAT175;AT170,CT170,ST17#..EXG,EXS,GTR,MX,SXR198810-198911

main75557-20060iST17#..LB198712-199202

main75557-94700iST171..4FC..EXG199005-199007

75558CMOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 LH

main75558-20060iAT170,CT170,ST17#..EXG,EXS,GTR,MX,SXR198712-199202

main75558-20060iAT175;AT170,CT170,ST17#..EXG,EXS,GTR,MX,SXR198810-198911

main75558-20070iST17#..LB198712-199202

main75558-94700iST171..4FC..EXG199005-199007

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-20040iAT17#,CT17#,ET176,ST17#198712-199211

main75561-20050iAT17#,CT17#,ET176,ST17#198712-199211

main75561-20060iAT17#,CT17#,ET176,ST17#198712-199211

GREEN

main75561-20070iAT17#,CT17#,ET176,ST17#198712-199211

GRAY

main75561-20080iAT17#,CT17#,ET176,ST17#198712-199211

75562CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2

main75562-20020iCT176,ET176198712-199211

NATURAL

main75562-20030iAT17#,CT17#,ET176,ST17#198712-199211

main75562-20040iAT17#,CT17#,ET176,ST17#198712-199211

main75562-20050iAT17#,CT17#,ET176,ST17#198712-199211

VIOLET

main75562-20060iAT17#,CT17#,ET176,ST17#198712-199211

ORANGE

75611CMOULDING, FRONT FENDER, OUTSIDE RH

main75611-20451iCT176198911-199211

main75611-20471-03iCT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z198911-199202

STEEL SILVER M,040 ,175 ,182

main75611-20520iAT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z198712-198911

main75611-20540-03iST17#..LB198712-198911

WARM GRAY M,040 ,167

main75611-20540-03iST170..EXS198812-199211

main75611-20540-05iST17#..G,X,Z198712-198911

LIGHT BEIGE M,040 ,4H6

main75611-20540-05iST171..GT198712-198911

LIGHT BEIGE M,040

main75611-20540-05iST170..EXS198812-199211

main75611-20540-13iST170..X198812-198903

main75611-94700iST171..4FC..EXG199005-199007

75612CMOULDING, FRONT FENDER, OUTSIDE LH

main75612-20421iAT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z198911-199211

main75612-20441-03iCT170,ST170..EXS,SELS,X,Z;AT17#,ST171..EXG,G,GT,GTR,SELS,SXR198911-199202

STEEL SILVER M,040 ,175 ,182

main75612-20490iAT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z198712-198911

main75612-20510-03iST17#..LB198712-198911

WARM GRAY M,040 ,167

main75612-20510-03iST170..EXS198812-199211

main75612-20510-05iST171..GT198712-198911

LIGHT BEIGE M,040

main75612-20510-05iST17#..G,X,Z198712-198911

LIGHT BEIGE M,040 ,4H6

main75612-20510-05iST170..EXS198812-199211

main75612-20510-13iST170..X198812-198903

main75612-94700iST171..4FC..EXG199005-199007

75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH

main75623-20151iCT176198911-199211

main75623-20171-03iCT170,ST170..EXS,SELS,X,Z;AT17#,ST171..EXG,G,GT,GTR,SELS,SXR198911-199202

STEEL SILVER M,040 ,175 ,182

main75623-20240iAT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z198712-198911

main75623-20260-03iST17#..LB198712-198911

WARM GRAY M,040 ,167

main75623-20260-03iST170..EXS198812-199211

main75623-20260-05iST171..GT198712-198911

LIGHT BEIGE M,040

main75623-20260-05iST171..GT198712-198911

LIGHT BEIGE M,040 ,4H6

main75623-20260-05iST170..EXS198812-199211

main75623-20260-13iST170..X198812-198903

main75623-94700iST171..4FC..EXG199005-199007

75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH

main75624-20151iAT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z198911-199211

main75624-20171-03iCT170,ST170..EXS,SELS,X,Z;AT17#,ST171..EXG,G,GT,GTR,SELS,SXR198911-199202

STEEL SILVER M,040 ,175 ,182

main75624-20240iAT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z198712-198911

main75624-20260-03iST17#..LB198712-198911

WARM GRAY M,040 ,167

main75624-20260-03iST170..EXS198812-199211

main75624-20260-05iST17#..G,X,Z198712-198911

LIGHT BEIGE M,040

main75624-20260-05iST17#..G,X,Z198712-198911

LIGHT BEIGE M,040 ,4H6

main75624-20260-05iST170..EXS198812-199211

main75624-20260-13iST170..X198812-198903

main75624-94700iST171..4FC..EXG199005-199007

75651MOULDING, QUARTER, OUTSIDE RH

main75651-20251iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z198911-199202

main75651-20271-03iCT170,ST170..EXS,SELS,X,Z;AT17#,ST171..EXG,G,GT,GTR,SELS,SXR198911-199202

STEEL SILVER M,040 ,175 ,182

main75651-20360iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z198712-198911

main75651-20380-03iST17#..LB198712-198911

WARM GRAY M,040 ,167

main75651-20380-03iST170..EXS..CI198812

main75651-20380-05iST171..GT198712-198911

LIGHT BEIGE M,040

main75651-20380-05iST171..GT198712-198911

LIGHT BEIGE M,040 ,4H6

main75651-20380-05iST170..EXS198812-199211

main75651-20380-05iST170..EXS..CI198812

main75651-20380-13iST170..X198812-198903

main75651-94700iST171..4FC..EXG199005-199007

main75651-95506iET176..GX198712-198911

main75651-95508iET176..GX198911-199211

75652MOULDING, QUARTER, OUTSIDE LH

main75652-20161iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z198911-199202

main75652-20241-03iCT170,ST170..EXS,SELS,X,Z;AT17#,ST171..EXG,G,GT,GTR,SELS,SXR198911-199202

STEEL SILVER M,040 ,175 ,182

main75652-20330iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z198712-198911

main75652-20350-03iST17#..LB198712-198911

WARM GRAY M,040 ,167

main75652-20350-03iST170..EXS198812-199211

main75652-20350-05iST17#..G,X,Z198712-198911

LIGHT BEIGE M,040

main75652-20350-05iST171..GT198712-198911

LIGHT BEIGE M,040 ,4H6

main75652-20350-05iST170..EXS198812-199211

main75652-20350-13iST170..X198812-198903

main75652-94700iST171..4FC..EXG199005-199007

main75652-95506iET176..GX198712-198911

main75652-95508iET176..GX198911-199211

75711BMOULDING, FRONT DOOR BELT, RH

main75711-20230iET176..DX,GX;AT17#,CT17#,ST17#198712-199211

main75711-20260iAT17#,CT170,ST17#198905-199202

75712BMOULDING, FRONT DOOR BELT, LH

main75712-20160iET176..DX,GX;AT17#,CT17#,ST17#198712-199211

main75712-20190iAT17#,CT170,ST17#198905-199202

75721AMOULDING, REAR DOOR BELT, RH

main75721-20180iET176..DX,GX;AT17#,CT17#,ST17#..SED,VAN198712-199211

main75721-20200iST17#..LB198712-199202

main75721-20230iAT17#,CT170,ST17#..SED198905-199202

main75721-20240iST17#..LB198905-199202

75722AMOULDING, REAR DOOR BELT, LH

main75722-20180iET176..DX,GX;AT17#,CT17#,ST17#..SED,VAN198712-199211

main75722-20200iST17#..LB198712-199202

main75722-20230iAT17#,CT170,ST17#..SED198905-199202

main75722-20240iST17#..LB198905-199202

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-20391iCT176198911-199211

main75731-20411-03iCT170,ST170..EXS,SELS,X,Z;AT17#,ST171..EXG,G,GT,GTR,SELS,SXR198911-199202

STEEL SILVER M,040 ,175 ,182

main75731-20480iAT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z198712-198911

main75731-20500-03iST17#..LB198712-198911

WARM GRAY M,040 ,167

main75731-20500-03iST170..EXS198812-199211

main75731-20500-05iST17#..G,X,Z198712-198911

LIGHT BEIGE M,040

main75731-20500-05iST17#..G,X,Z198712-198911

LIGHT BEIGE M,040 ,4H6

main75731-20500-05iST170..EXS198812-199211

main75731-20500-13iST170..X198812-198903

main75731-94700iST171..4FC..EXG199005-199007

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-20391iCT176198911-199211

main75732-20411-03iCT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z198911-199202

STEEL SILVER M,040 ,175 ,182

main75732-20480iAT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z198712-198911

main75732-20500-03iST170..EXS198812-199211

main75732-20500-03iST17#..LB198712-198911

WARM GRAY M,040 ,167

main75732-20500-05iST17#..G,X,Z198712-198911

LIGHT BEIGE M,040

main75732-20500-05iST171..GT198712-198911

LIGHT BEIGE M,040 ,4H6

main75732-20500-05iST170..EXS198812-199211

main75732-20500-13iST170..X198812-198903

main75732-94700iST171..4FC..EXG199005-199007

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-20511iCT176198911-199211

main75741-20531-03iCT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z198911-199202

STEEL SILVER M,040 ,175 ,182

main75741-20580iAT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z198712-198911

main75741-20600-03iST170..EXS198812-199211

main75741-20600-03iST17#..LB198712-198911

WARM GRAY M,040 ,167

main75741-20600-05iST17#..G,X,Z198712-198911

LIGHT BEIGE M,040

main75741-20600-05iST17#..G,X,Z198712-198911

LIGHT BEIGE M,040 ,4H6

main75741-20600-05iST170..EXS198812-199211

main75741-20600-13iST170..X198812-198903

main75741-94700iST171..4FC..EXG199005-199007

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-20491iCT176198911-199211

main75742-20511-03iCT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X,Z198911-199202

STEEL SILVER M,040 ,175 ,182

main75742-20560iAT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SXR,X,Z198712-198911

main75742-20580-03iST170..EXS198812-199211

main75742-20580-03iST17#..LB198712-198911

WARM GRAY M,040 ,167

main75742-20580-05iST17#..G,X,Z198712-198911

LIGHT BEIGE M,040

main75742-20580-05iST17#..G,X,Z198712-198911

LIGHT BEIGE M,040 ,4H6

main75742-20580-05iST170..EXS198812-199211

main75742-20580-13iST170..X198812-198903

main75742-94700iST171..4FC..EXG199005-199007

75851MOULDING, ROCKER PANEL, RH

main75850-29215iAT170,CT170,ET176,ST170..GX,MX,Z198712-198805

sub75850-29216

main75850-29216iCT176198911-199008

sub75850-29217

main75850-29216iAT175..GX,SELS;AT170,CT170,ET176,ST170..GX,MX,SELS,Z198805-199008

sub75850-29217

main75850-29217iCT176199008-199211

main75850-29225iAT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X198712-198805

sub75850-29226

main75850-29226iAT175..EXS,MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X198805-199202

main75850-29285iAT175..EXS,MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X198905-199202

main75850-29325iST171..4FC..EXG199005-199007

75852MOULDING, ROCKER PANEL, LH

main75850-29215iAT170,CT170,ET176,ST170..GX,MX,Z198712-198805

sub75850-29216

main75850-29216iAT175..GX,SELS;AT170,CT170,ET176,ST170..GX,MX,SELS,Z198805-199008

sub75850-29217

main75850-29216iCT176198911-199008

sub75850-29217

main75850-29217iAT17#,CT170,ET176,ST170..GX,SELS,Z199008-199211

main75850-29225iAT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X198712-198805

sub75850-29226

main75850-29226iAT175..EXS,MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X198805-199202

main75850-29285iAT175..EXS,MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X198905-199202

main75850-29325iST171..4FC..EXG199005-199007

75867ACLIP, ROCKER PANEL MOULDING

main75867-20030iAT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z198712-199211

main75867-20030iCT176198911-199211

main75867-20030iST171..4FC..EXG199005-199211

9016840087

main90168-40087

9018904130

main90189-04130

9018905075

main90189-05075

9018905084

main90189-05084

9353084516

main93530-84516

34 parts on this diagram · 3 diagrams in section
