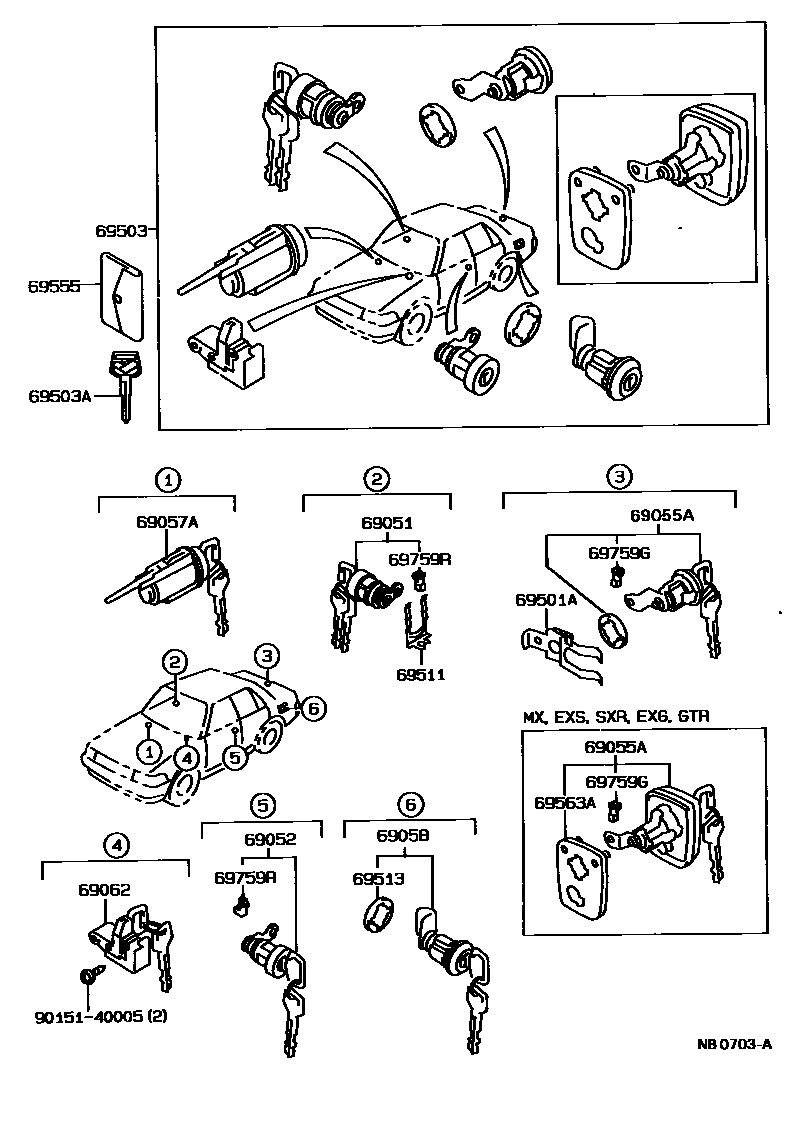

LOCK CYLINDER SET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-20210iAT17#,CT170,ST17#¥3,520198712-199202

sub69051-20220¥3,520

main69051-95500iCT176,ET176¥3,520198712-199211

sub69051-95501¥3,520

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-20200iAT17#,CT170,ST17#¥3,520198712-199202

sub69052-20210¥3,520

main69052-95500iCT176,ET176¥3,520198712-199211

sub69052-95501¥3,520

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-20290iAT170..DX,STD¥3,740198712-199202

sub69055-20360¥3,990

main69055-20300iST171..4FC..EXG¥3,740199005-199007

sub69055-20310¥3,740

main69055-20300iAT17#,CT170,ST170..GX,SELS¥3,740198712-199202

sub69055-20310¥3,740

main69055-20320iAT17#,CT170,ST17#..EXG,EXS,GTR,MX,SXR¥3,740198712-199202

main69055-20320iAT17#,CT170,ST170..SELS¥3,740199101-199202

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-20180iAT17#,CT170,ST17#¥5,700198712-199202

sub69057-20200¥5,700

main69057-95500iCT176,ET176¥5,700198712-199211

sub69057-95502¥7,100

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-20060iAT170..DX,STD¥4,180198712-199202

main69058-95500iCT176,ET176..DX,STD¥4,180198712-199211

sub69058-20060¥4,180

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-20130iAT17#,CT170,ST17#..DX,EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z¥4,970198712-199202

sub69056-20140¥4,970

main69056-95500iCT176,ET176..DX,GX¥4,970198712-199211

sub69056-95501¥4,970

69501ARETAINER SUB-ASSY, BACK DOOR CYLINDER

main69501-20040iAT17#,CT170,ST17#¥530198712-199202

69503CYLINDER SET, LOCK

main69005-20680iAT170..STD198712-198911

main69005-20690iAT170..DX¥20,200198712-199202

main69005-20700iST171..4FC..EXG¥17,600199005-199007

main69005-20700iAT17#,CT170,ST170..GX,SELS¥17,600198712-199202

main69005-20710iAT17#,CT170,ST170..SELS¥17,600199101-199202

main69005-20710iAT17#,CT170,ST17#..EXG,EXS,GTR,MX,SXR¥17,600198712-199202

main69005-20770iST17#..LB¥17,600198712-199202

main69005-20780iST17#..LB¥17,600198712-199202

main69005-95501iET176..STD¥21,700198712-199211

main69005-95505iET176..GX¥21,700198712-199211

main69005-95505iCT176..5F¥21,700198911-199211

main69005-95507iCT176,ET176..DX¥21,700198712-199211

main69005-95510iCT176,ET176..MTM..DX¥22,100198712

main69005-95511iET176..GX¥22,100198712

69503AKEY, BLANK

main90999-00130iAT17#,CT170,ST17#¥1,550198712-199202

sub90999-00153¥980

main90999-00132iAT17#,CT170,ST17#¥2,070198712-199202

sub90999-00174¥2,070

main90999-00137iAT17#,CT170,ST17#¥1,550198712-199202

sub90999-00165¥1,550

main90999-00146iCT176,ET176¥2,060198712-199211

main90999-00147iCT176,ET176¥1,550198712-199211

sub90999-00112¥1,550

main90999-00148iCT176,ET176¥1,550198712-199211

sub90999-00114¥1,550

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010iAT170,CT176,ET176..DX,STD¥160198712-199211

69513PAD, FUEL FILLER LID LOCK CYLINDER

main69513-32010iAT170..DX,STD¥120198712-199202

main69513-87001iCT176,ET176..DX,STD¥350198712-199211

sub69513-32010¥120

69555COVER, KEY

main69555-20010iAT17#,CT17#,ET176,ST17#¥780198712-199211

69563PAD, BACK DOOR LOCK CYLINDER

main69563-20030iST17#..LB¥390198712-199202

69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69563-20030iAT17#,CT170,ST17#..EXG,EXS,GTR,MX,SXR¥390198712-199202

main69563-20030iAT17#,CT170,ST170..SELS¥390199101-199202

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-20080iAT170,CT170,ST170..SED¥280198712-198911

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-20080iAT17#,CT17#,ET176,ST17#¥280198712-199211

main69759-20090iAT17#,CT17#,ET176,ST17#¥280198712-199211

9015140005

main90151-40005¥90

17 parts on this diagram · 7 diagrams in section
