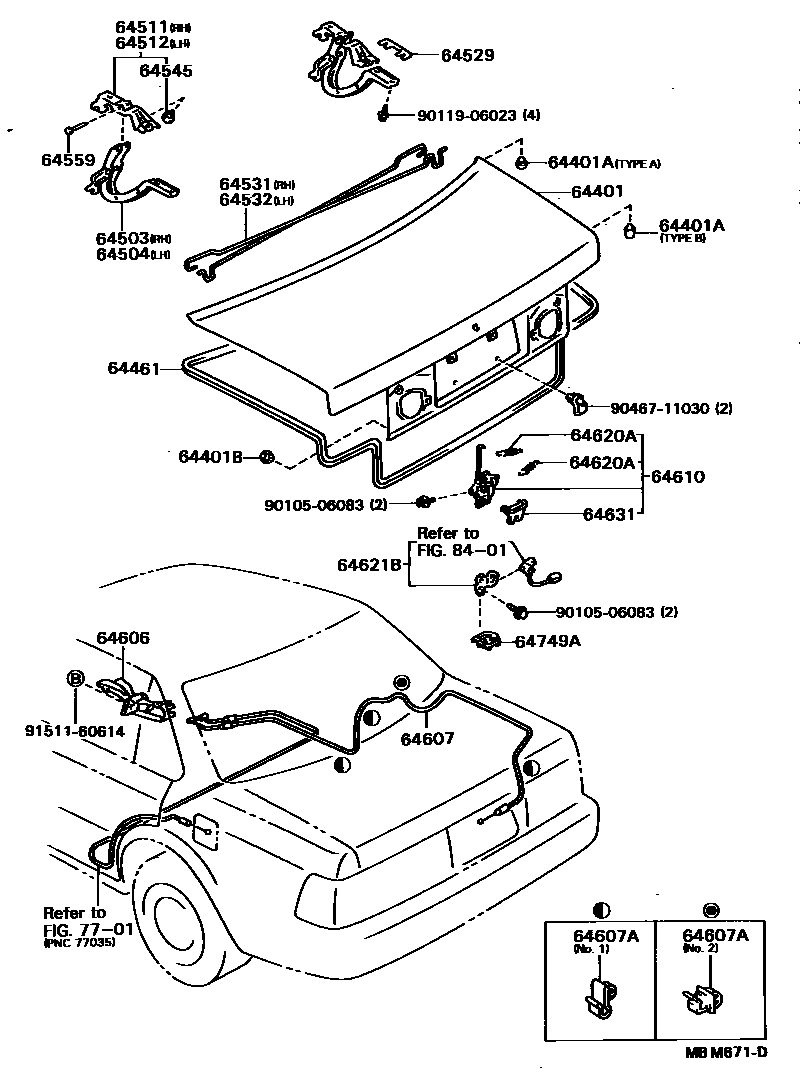

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1 0002 1

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-2B320iAT17#,CT170,ST17#..SED198712-198911

main64401-2B450iAT17#,CT170,ST17#..SED198911-199202

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-06076iAT17#,CT170,ST17#..SED198712-199202

sub90541-06056

main90541-09043iAT17#,CT170,ST17#..SED198712-199202

64401BPLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90950-01036iAT170,CT170,ST17#..SED198712-198804

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-20290iAT17#,CT170,ST17#..SED198712-199202

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-20030iAT17#,CT170,ST17#..SED198712-199202

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-20030iAT17#,CT170,ST17#..SED198712-199202

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-20130iAT17#,CT170,ST17#..SED198712-199202

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64512-20130iAT17#,CT170,ST17#..SED198712-199202

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-14010iAT17#,CT170,ST17#..SED198712-199202

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-20210iAT17#,CT170,ST17#..SED198712-198911

main64531-20260iST171..SED198712-198911

main64531-20330iAT17#,CT170,ST17#..SED198911-199202

main64531-20340iAT17#,CT170,ST17#..EXG,EXS,GTR,SXR198911-199202

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-20210iAT17#,CT170,ST17#..SED198712-198911

main64532-20260iST171..SED198712-198911

main64532-20330iAT17#,CT170,ST17#..SED198911-199202

main64532-20340iAT17#,CT170,ST17#..EXG,EXS,GTR,SXR198911-199202

64545CUSHION, LUGGAGE DOOR HINGE

main90541-07007iAT17#,CT170,ST17#..SED198712-199202

64559PIN, LUGGAGE DOOR HINGE

main64559-20040iAT17#,CT170,ST17#..SED198712-199202

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-20080iAT170,CT170,ST17#..EXG,EXS,GTR,GX,MX,SELS,SXR198712-199202

sub64606-20081

main64606-20140iAT175198808-199202

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-20360iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,MX,SELS,SXR198712-199202

main64607-94700iST171..4FC..EXG199005-199007

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main69749-12010iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,MX,SELS,SXR198712-199202

main90467-08043iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,MX,SELS,SXR198712-199202

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-20150iAT170..DX,STD198712-199202

sub64610-20160

main64610-20160iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,MX,SELS,SXR198712-199202

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-05001iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,MX,SELS,SXR198712-199202

main90506-05002iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,MX,SELS,SXR198712-199202

WHITE

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64620-20050iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,MX,SXR198712-198911

sub64621-12060

sub84231-20110

sub93315-15010

main64621-12060iAT170..DX,STD198712-199202

sub64621-12070

64631PROTECTOR, LUGGAGE DOOR LOCK

main64631-20010iAT17#,CT170,ST17#..SED198712-199202

64749ACOVER, LUGGAGE COMPARTMENT DOOR STRIKER

main64749-20040iAT175..GX;AT170,CT170,ST17#..DX,GX,MX,STD,SXR198712-199202

7701

8401

9010506083

main90105-06083

9011906023

main90119-06023

9046711030

main90467-11030

9151160614

main91511-60614

27 parts on this diagram · 2 diagrams in section
