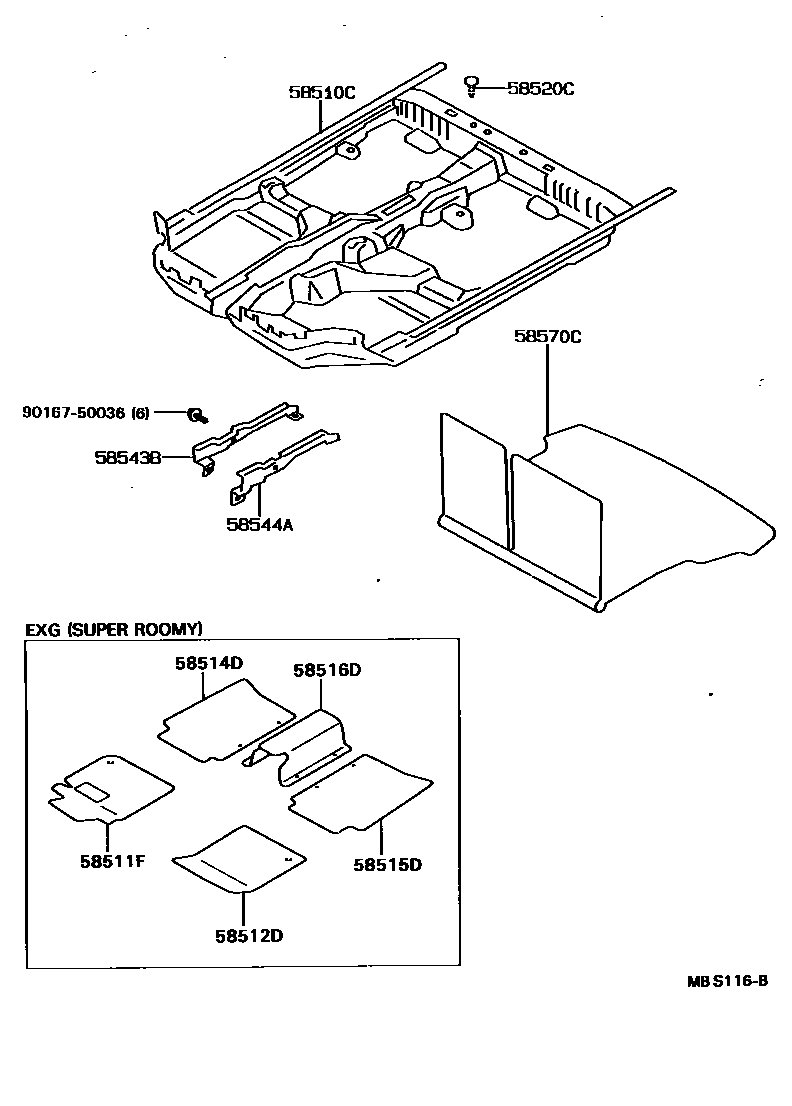

MAT & CARPET

0001 1 0002 1

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-2B410-03iST171..EXG,G,GT,GTR198712-199202

main58510-2B410-04iST171..EXG,G198712-198911

main58510-2B410-06iST171..EXG,G198712-199202

main58510-2B410-14iST171..EXG,G198911-199202

main58510-2B420-03iST171..EXG,G,GT,GTR198712-199202

GRAY,TRIM1#

main58510-2B420-04iST171..EXG,G198712-198911

BLUE,TRIM8#

main58510-2B420-06iST171..EXG,G198712-199202

SABLE,TRIM4#

main58510-2B420-14iST171..EXG,G198911-199202

DARK BLUE,TRIM8#

main58510-2B430-03iAT170,CT170,ST17#..EXS,GX,SELS,SXR,X,Z198712-199202

GRAY,TRIM1#

sub58510-2B580

main58510-2B430-04iAT170,CT170,ST170..EXS,GX,MX,X,Z198712-198911

BLUE,TRIM8#

sub58510-2B580

main58510-2B430-06iAT170,CT170,ST170..EXS,GX,MX,X,Z198712-199202

SABLE,TRIM4#

sub58510-2B580

main58510-2B430-14iAT170,CT170,ST170..EXS,GX,SELS,X,Z198911-199202

DARK BLUE,TRIM8#

sub58510-2B580

main58510-2B490-03iAT170,CT170,ST17#..EXS,GX,MX,SELS,SXR,X,Z198712-199202

sub58510-2B570

main58510-2B490-04iAT170,CT170,ST170..EXS,GX,MX,X,Z198712-198911

sub58510-2B570

main58510-2B490-06iAT170,CT170,ST170..EXS,GX,MX,SELS,X,Z198712-199202

sub58510-2B570

main58510-2B490-14iAT170,CT170,ST170..EXS,GX,SELS,X,Z198911-199202

sub58510-2B570

main58510-2B550-03iAT170..STD198712-198911

main58510-2B560-03iAT170..STD198712-198911

GRAY,TRIM1#

main58510-2B570-03iAT170..DX198712-199202

main58510-2B570-04iAT170..DX198712-198911

main58510-2B570-06iAT170..DX198712-199202

main58510-2B570-14iAT170..DX198911-199202

main58510-2B580-03iAT170..DX198712-199202

GRAY,TRIM1#

main58510-2B580-04iAT170..DX198712-198911

BLUE,TRIM8#

main58510-2B580-06iAT170..DX198712-199202

SABLE,TRIM4#

main58510-2B580-14iAT170..DX198911-199202

DARK BLUE,TRIM8#

main58510-2B630-03iAT175198808-199202

GRAY,TRIM1#

main58510-2B630-04iAT175198808-198911

BLUE,TRIM8#

main58510-2B630-06iAT175198808-199202

SABLE,TRIM4#

main58510-2B630-14iAT175198911-199202

DARK BLUE,TRIM8#

main58510-2B640-03iAT175198808-199202

main58510-2B640-04iAT175198808-198911

main58510-2B640-06iAT175198808-199202

main58510-2B640-14iAT175198911-199202

main58510-2B820-03iST170..EXS198812-198906

main58510-2B820-04iST170..X198812-198903

main58510-2B820-04iST170..EXS198812-198906

main58510-2B820-06iST170..EXS198812-198906

main58510-2B840-03iST170..EXS198812-198906

main58510-2B840-04iST170..X198812-198903

main58510-2B840-04iST170..EXS198812-198906

main58510-2B840-06iST170..EXS198812-198906

main58510-94700iST171..4FC..EXG199005-199007

main58510-94701iST171..4FC..EXG199005-199007

SUPER ROOMY

main58510-95505-03iCT176..5F198911-199211

main58510-95505-03iET176..GX198712-199211

main58510-95505-06iCT176..5F198911-199211

main58510-95505-06iET176..GX198712-199211

main58510-95506-03iCT176..5F198911-199211

main58510-95506-03iET176..GX198712-199211

GRAY,TRIM1#

main58510-95506-06iET176..GX198712-199211

SABLE,TRIM4#

main58510-95506-06iCT176..5F198911-199211

main58510-95507-03iCT176,ET176..DX198712-199211

main58510-95507-03iET176..STD198806-199211

main58510-95507-06iCT176,ET176..DX198712-199211

main58510-95508-03iET176..STD198806-199211

main58510-95508-03iCT176,ET176..DX198712-199211

GRAY,TRIM1#

main58510-95508-06iCT176,ET176..DX198712-199211

SABLE,TRIM4#

58511FCARPET, FLOOR, FRONT RH

main58511-94700iST171..4FC..EXG199005-199007

SUPER ROOMY

58512DCARPET, FLOOR, FRONT LH

main58512-94700iST171..4FC..EXG199005-199007

SUPER ROOMY

58514DCARPET, FLOOR, REAR RH

main58514-94700iST171..4FC..EXG199005-199007

SUPER ROOMY

58515DCARPET, FLOOR, REAR LH

main58515-94700iST171..4FC..EXG199005-199007

SUPER ROOMY

58516DCARPET, FLOOR, REAR CENTER

main58513-94700iST171..4FC..EXG199005-199007

SUPER ROOMY

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05021-13iCT176,ET176198712-199211

GRAY,TRIM1#

sub90467-05021

sub90467-06177

main90467-05021-16iCT176,ET176..DX,GX198712-199211

SABLE,TRIM4#

sub90467-05021

sub90467-06177

main90467-06016-33iAT17#,CT170,ST17#198712-199202

GRAY,TRIM1#

sub90467-06016

sub90467-07049

main90467-06016-40iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,X,Z198712-198911

DARK BLUE,TRIM8#

sub90467-06016

sub90467-07049

main90467-06016-48iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,SELS,X,Z198911-199202

BLUE,TRIM8#

sub90467-06016

sub90467-07049

main90467-06016-57iAT17#,CT170,ST17#..DX,EXG,EXS,G,GX,MX,SELS,X,Z198712-199202

SABLE,TRIM4#

sub90467-06016

sub90467-07049

58543BBRACKET, FLOOR CARPET, RH

main58543-20010iAT170,CT17#,ET176,ST17#198712-199211

main58543-20020iAT175198808-199202

58544ABRACKET, FLOOR CARPET, LH

main58544-20010iAT170,CT17#,ET176,ST17#198712-199211

main58544-20020iAT175198808-199202

58570CCARPET ASSY, REAR FLOOR

main58571-20060-03iST170..LB198712-199202

GRAY,TRIM1#

main58571-20060-04iST170..LB198712-198911

BLUE,TRIM8#

main58571-20060-06iST170..LB198712-199202

SABLE,TRIM4#

main58571-20060-14iST170..LB198911-199202

DARK BLUE,TRIM8#

main58571-20070-03iST171..LB198712-198911

GRAY,TRIM1#

main58571-20070-04iST171..G198712-198911

BLUE,TRIM8#

main58571-20070-06iST171..G198712-198911

SABLE,TRIM4#

main58571-20071-03iST171..LB198911-199202

GRAY,TRIM1#

main58571-20071-04iST171..G198911-199202

DARK BLUE,TRIM8#

main58571-20071-06iST171..G198911-199202

SABLE,TRIM4#

main58571-95501-03iCT176,ET176..DX,GX198712-199211

GRAY,TRIM1#

main58571-95501-06iCT176,ET176..DX,GX198712-199211

SABLE,TRIM4#

9016750036

main90167-50036
