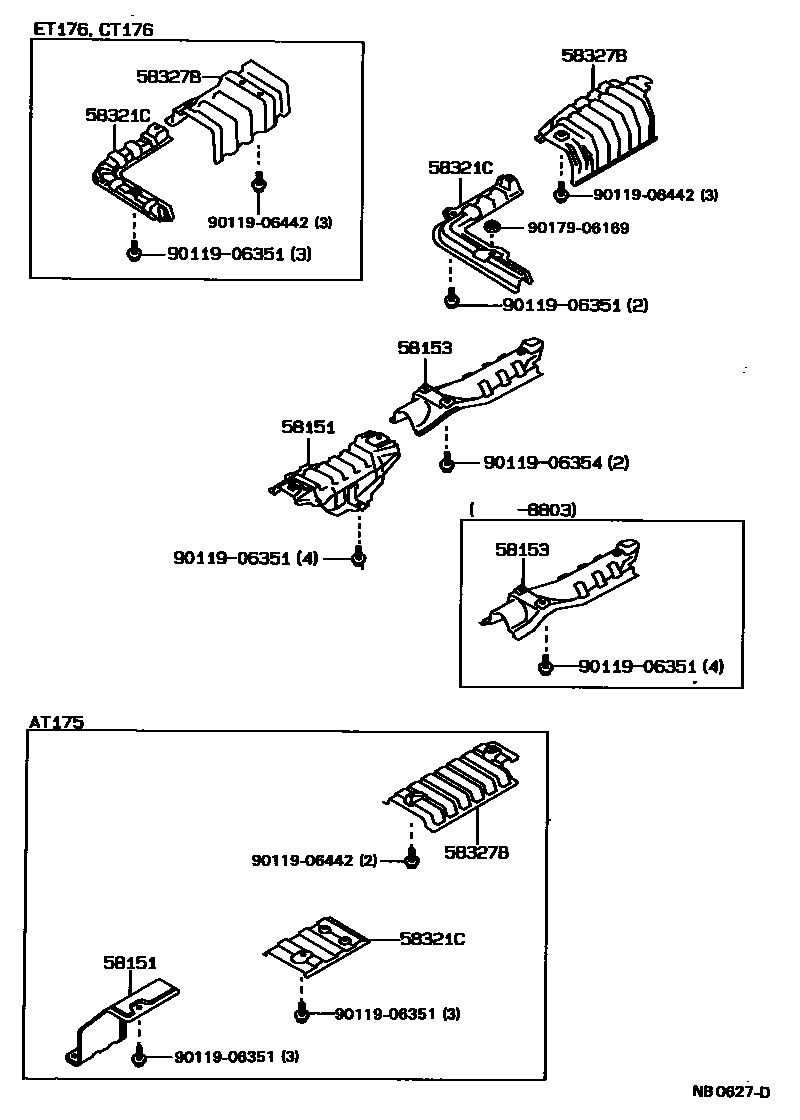

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-20030iET176,ST171..DX,GT,GTR,GX,STD198712-198911

main58151-20040iAT175..4FC198808-199202

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-20030iET176,ST171..DX,GT,GTR,GX,STD198712-198911

58321CINSULATOR, REAR FLOOR HEAT, FRONT

main58321-12030iET176198712-199211

main58321-20040iAT175198808-199202

main58321-32010iAT170,ST17#..DX,EXG,EXS,G,GX,SELS,SXR,X,Z198712-199202

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-13010iCT176,ET176198712-199211

main58327-32020iAT170,CT170,ST17#..DX,EXG,EXS,G,GX,SELS,SXR,X,Z198712-199202

main58327-32030iAT175198808-199202

9011906351

main90119-06351

9011906354

main90119-06354

9011906442

main90119-06442

9017906169

main90179-06169

8 parts on this diagram · 1 diagram in section
