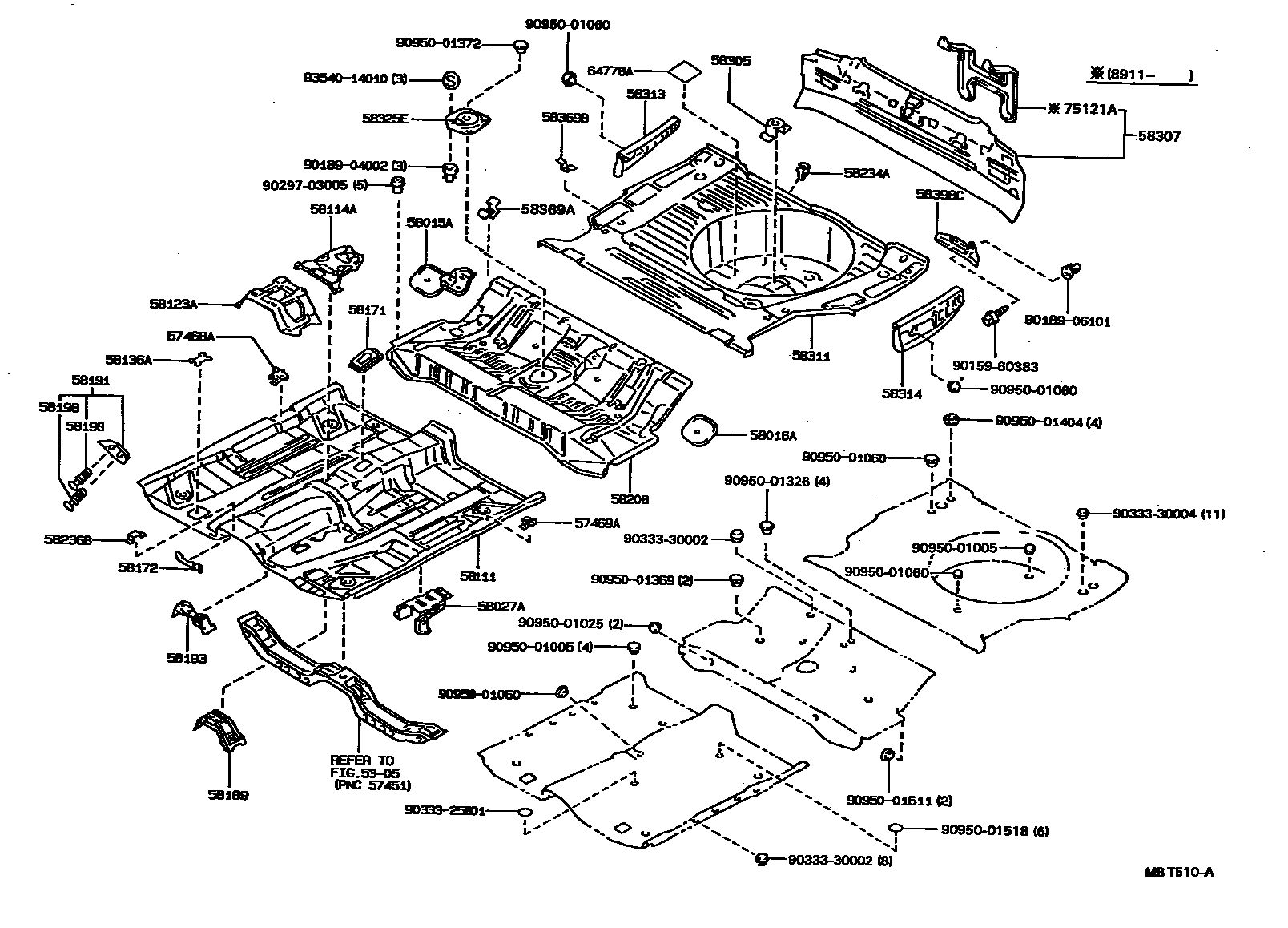

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1(9006- )�-��- �-�- 0003 1 0004 1 0005 1

5305

57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH

main57468-20030iAT170,CT17#,ET176,ST17#198712-199211

main57468-20040iAT175198808-199202

57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH

main57469-20030iAT170,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,SELS,STD,SXR,X,Z198712-199211

main57469-20040iAT175198808-199202

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-20040iST17#..LB198712-199202

main58015-32030iAT170,CT170,ST17#..SED198712-199202

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-32020iAT170,CT170,ST17#198712-199202

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-20050iET176,ST171..DX,GT,GTR,GX,STD198712-198911

main58027-20070iAT170,CT17#,ST17#..DX,EXG,EXS,G,GX,MX,STD,SXR,X,Z198712-199211

main58027-20090iAT175198808-199202

58111PAN, FRONT FLOOR

main58111-20111iAT175198808-198812

sub58111-20112

sub57408-20031

sub58277-20032

sub90950-01060

main58111-20113iAT175198812-199202

main58111-20120iAT170,CT17#,ET176,ST17#198712-199211

main58111-94700iST171..4FC..EXG199005-199007

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-20040iAT170,CT17#,ET176,ST17#198712-199211

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-20040iAT170,CT17#,ET176,ST17#198712-199211

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-20010iAT170,CT17#,ET176,ST17#198712-199211

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-20040iAT170,CT17#,ET176,ST17#198803-198912

main58107-20080iAT170,CT17#,ET176,ST17#198712-198803

main58171-20090iAT175198808-199202

main58171-20100iAT170,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,SELS,STD,SXR,X,Z198912-199211

58172BRACKET, COMPUTER MOUNTING, NO.3

main58172-20040iAT170,CT17#,ET176,ST17#198712-199211

58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET

main58189-20020iAT170,CT17#,ET176,ST17#198712-199211

58191FOOTREST, FRONT FLOOR

main58191-20030iAT175198808-199202

main58191-20040iET176..GX;AT170,CT170,ST17#..DX,EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z198712-199211

main58191-20040iCT176198911-199211

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58109-20090iAT170,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,SELS,STD,SXR,X,Z198712-199211

main58109-20100iAT175198808-199202

58198CLIP, FOOTREST

main58198-20020iCT176198911-199211

main58198-20020iET176..GX;AT170,CT170,ST17#..DX,EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z198712-199211

L=97.1

main58198-20030iCT176198911-199211

main58198-20030iET176..GX;AT170,CT170,ST17#..DX,EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z198712-199211

L=89.1

58208PAN, CENTER FLOOR

main58201-20870iAT175..EXS198911-199202

main58201-32090iAT175..GX,MX,SELS198808-199202

main58211-32050iAT170,CT170,ST17#198712-199202

main58211-32051iAT170,CT170,ST17#..SED198804-199202

58234ABRACKET, EXHAUST PIPE MOUNTING, INNER

main58234-32020iAT170,CT170,ST17#198712-199202

main58234-32030iAT175198808-199202

58236BBRACKET, CENTER FLOOR HEAT INSULATOR

main58236-14010iET176,ST171..DX,GT,GTR,GX,STD198712-198911

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iAT17#,CT170,ST17#198712-199202

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-20630iAT170,CT170,ST17#..SED198712-198807

sub58307-20631

main58307-20631iAT170,CT170,ST17#..SED198807-198907

sub58307-20632

sub90467-07097

main58307-20632iAT170,CT170,ST17#..SED198907-198910

sub58307-20633

sub90950-01685

main58307-20633iAT170,CT170,ST17#..SED198910-198911

main58307-20640iST17#..LB198712-198807

sub58307-20641

main58307-20641iST17#..LB198807-198910

sub58307-20642

sub90950-01685

main58307-20642iST17#..LB198910-198911

main58307-20700iAT175198808-198905

sub58307-20701

sub90467-07097

main58307-20701iAT175198905-198910

sub58307-20702

sub90950-01685

main58307-20702iAT175198910-198911

main58307-20850iAT170,CT170,ST17#..SED198911-199202

main58307-20860iST17#..LB198911-199202

main58307-20870iAT175198911-199202

main58307-95517iCT176,ET176198712-199211

58311PAN, REAR FLOOR

main58311-32090iAT170,CT170,ST17#198712-199202

main58311-32110iAT175198808-199202

58313PANEL, REAR FLOOR SIDE, RH

main58313-20210iAT170,CT170,ST17#..SED198712-199202

main58313-20240iST17#..LB198712-199202

main58313-20310iAT175198808-199202

58314PANEL, REAR FLOOR SIDE, LH

main58314-20190iAT170,CT170,ST17#..SED198712-199202

main58314-20220iST17#..LB198712-199202

main58314-20290iAT175198808-199202

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-12020iCT176,ET176198712-199211

main58325-20040iAT175198808-199202

main58325-32020iAT170,CT170,ST17#198712-199202

58369ABRACKET, FUEL TUBE, NO.3

main58369-32010iAT170,CT170,ST17#198712-199202

58369BBRACKET, FUEL TUBE, NO.3

main58369-32010iAT170,CT170,ST17#198712-199202

58398CCOVER, BODY LOWER BACK, LH

main58398-20050iAT170,CT170,ST17#198712-199202

64778APROTECTOR, SPARE WHEEL

main64778-14020iAT17#,ST17#;CT170..EXS,GX198712-199202

main64778-20040iCT170..MX198809-199202

sub64778-32020

75121ABRACKET, REAR LICENSE PLATE

main75121-20150iAT17#,CT170,ST17#198911-199202

9015960383

main90159-60383

9018904002

main90189-04002

9018906101

main90189-06101

9029703005

main90297-03005

9033325001

main90333-25001

9033330002

main90333-30002

9033330004

main90333-30004

9095001005

main90950-01005

9095001025

main90950-01025

9095001060

main90950-01060

9095001326

main90950-01326

9095001369

main90950-01369

9095001372

main90950-01372

9095001404

main90950-01404

9095001518

main90950-01518

9095001611

main90950-01611

9354014010

main93540-14010

47 parts on this diagram · 5 diagrams in section
