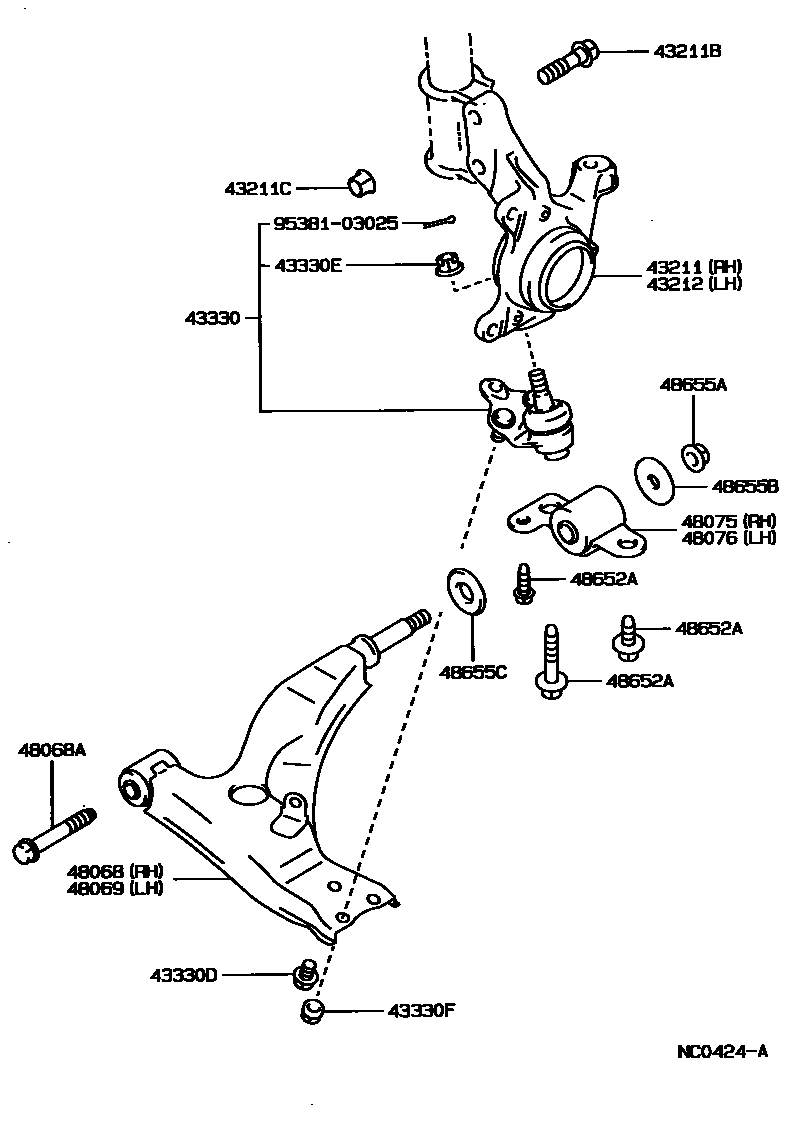

FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
43211BBOLT (FOR ABSORBER SETTING)
43211CNUT (FOR ABSORBER SETTING)
43212KNUCKLE, STEERING, LH
43330JOINT ASSY, LOWER BALL, FRONT
43330DBOLT (FOR FRONT LOWER BALL JOINT)
43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)
43330FNUT (FOR FRONT LOWER BALL JOINT SETTING)
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48075BRACKET SUB-ASSY, LWR ARM, NO,1
48076BRACKET SUB-ASSY, LWR ARM, NO.2
48652BRACKET, FRONT LOWER ARM
48652ABOLT(FOR FRONT LOWER ARM BRACKET)
*10-1.25PX25-20
*12-1.25PX68-30
*12-1.25PX33-27
48655BUSH, LOWER ARM, NO.2
48655ANUT(FOR SUSPENSION LOWER ARM BUSH NO.2)
48655BRETAINER, CUSHION, NO.1(FOR SUSPENSION LWR ARM BUSH NO.2)
48655CRETAINER, CUSHION, NO.2(FOR SUSPENSION LWR ARM BUSH NO.2)
9538103025
main95381-03025
20 parts on this diagram · 2 diagrams in section
