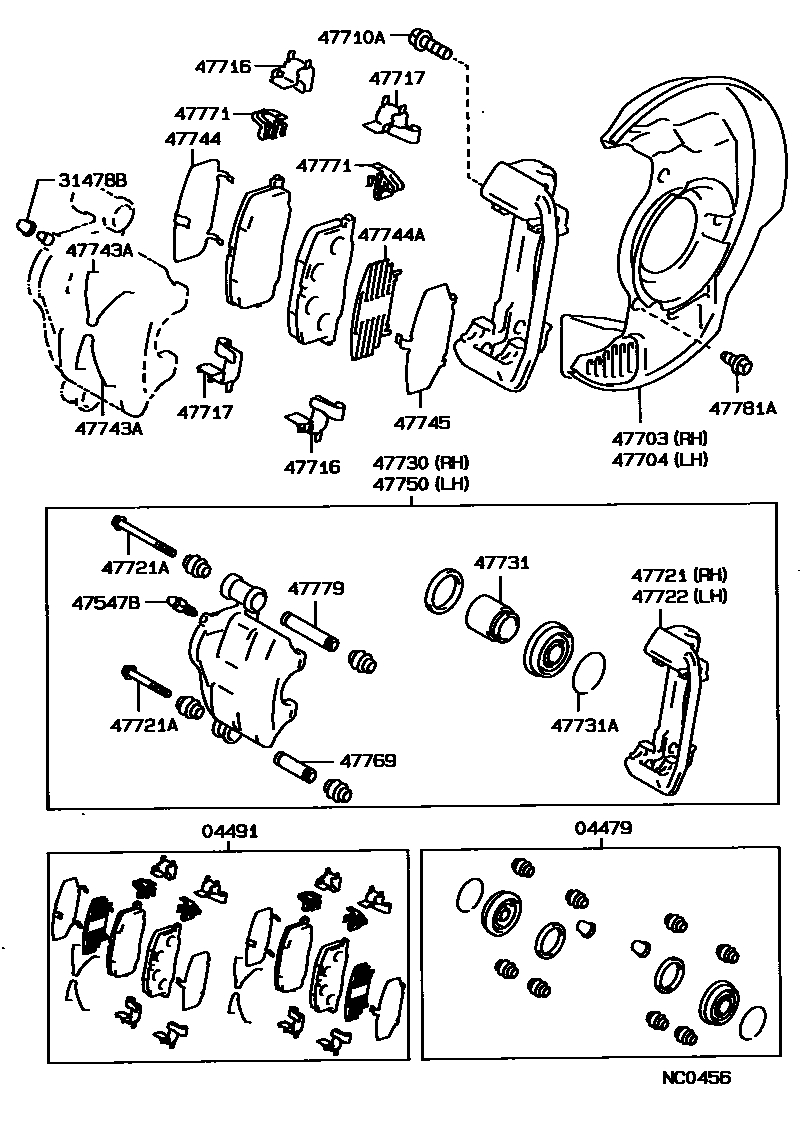

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-32021iAT170,CT17#,ET176,ST170198712-199211

main04479-32030iAT175,ST171198712-199202

04491PAD KIT, DISC BRAKE, FRONT

main04491-20450iAT170,CT17#,ET176,ST170198712-198812

sub04491-20451

main04491-20451iAT170,CT17#,ET176,ST170198812-198905

sub04491-20750

main04491-20530iAT175198808-198812

sub04491-20531

main04491-20531iAT175198812-199202

sub04465-32050

main04491-20750iAT170,CT17#,ET176,ST170198905-199007

sub04465-21010

main04491-20790iAT170,CT17#,ET176,ST170199007-199211

sub04465-21010

main04491-32131iST171198803-198808

sub04491-32132

sub04491-32291

main04491-32131iST171198712-198803

sub04491-32132

sub04491-32291

main04491-32300iST171198803-198812

sub04491-32301

main04491-32301iST171198812-199202

sub04465-32050

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAT17#,CT17#,ET176,ST17#198712-199211

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAT17#,CT17#,ET176,ST17#198712-199211

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-12120iAT170,CT17#,ET176,ST170198712-198901

sub47703-12121

main47703-12121iAT170,CT17#,ET176,ST170198901-199211

main47703-20050iAT170,ST170..EXS,X198808-198812

sub47703-20051

main47703-20051iST170..EFI;AT170..GX..EFI;AT170..EXS,SELS;ST170..(EXS,X)..CI198812-199006

main47703-32011iAT175,ST171198712-198901

sub47703-32040

main47703-32020iST171198712-198901

sub47703-32021

main47703-32021iST171198901-199202

main47703-32040iAT175,ST171198901-199202

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-12120iAT170,CT17#,ET176,ST170198712-198901

sub47704-12121

main47704-12121iAT170,CT17#,ET176,ST170198901-199211

main47704-20050iAT170,ST170..EXS,X198808-198812

sub47704-20051

main47704-20051iST170..EFI;AT170..GX..EFI;AT170..EXS,SELS;ST170..(EXS,X)..CI198812-199006

main47704-32011iAT175,ST171198712-198901

sub47704-32040

main47704-32020iST171198712-198901

sub47704-32021

main47704-32021iST171198901-199202

main47704-32040iAT175,ST171198901-199202

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040iAT17#,CT17#,ET176,ST17#198712-199211

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20120iAT170,CT17#,ET176,ST170198908-199007

sub47716-32031

main47716-20140iAT170,CT17#,ET176,ST170199007-199010

main47716-32030iAT170,CT17#,ET176,ST170198712-198812

sub47716-32031

main47716-32031iAT170,CT17#,ET176,ST170198901-199211

main47716-32040iAT175,ST171198712-198812

sub47716-32041

main47716-32041iAT175,ST171198812-199202

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-20070iAT170,CT17#,ET176,ST170198908-199007

sub47717-32031

main47717-20140iAT170,CT17#,ET176,ST170199007-199010

main47717-32030iAT170,CT17#,ET176,ST170198712-198812

sub47717-32031

main47717-32031iAT170,CT17#,ET176,ST170198901-199211

main47717-32040iAT175,ST171198712-198901

sub47717-32041

main47717-32041iAT175,ST171198901-199202

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-20140iAT175198808-199202

main47721-20200iST171198712-199202

main47721-20340iAT170,CT17#,ET176,ST170199007-199211

main47721-32050iAT170,CT17#,ET176,ST170198712-199007

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09003iAT170,CT17#,ET176,ST170198712-199211

main90119-09004iAT170,CT17#,ET176,ST170198712-199211

main90119-10014iAT175,ST171198712-199202

main90119-10249iAT175,ST171198712-199202

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-20140iAT175198808-199202

main47721-20200iST171198712-199202

main47721-20340iAT170,CT17#,ET176,ST170199007-199211

main47721-32050iAT170,CT17#,ET176,ST170198712-199007

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-20240iAT175198808-199202

main47730-20280iAT170,CT17#,ET176,ST170198712-199007

main47730-20300iST171198712-199202

main47730-20450iAT170,CT17#,ET176,ST170199007-199211

47731PISTON, FRONT DISC BRAKE

main47731-12130iAT170,CT17#,ET176,ST170199007-199211

main47731-32020iAT170,CT17#,ET176,ST170198712-199007

main47731-32040iAT175,ST171198712-199202

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-64003iAT170,CT17#,ET176,ST170198712-199211

main90522-66001iAT175,ST171198712-199202

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-32020iST171198712-199202

main47743-32030iAT175198808-199202

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-16011iAT170,CT17#,ET176,ST170198712-198804

sub47744-32010

main47744-32010iAT170,CT17#,ET176,ST170198804-199211

main47744-32041iAT175,ST171198712-199202

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47742-32021iAT175,ST171198712-198901

main47742-32022iAT175,ST171198901-199202

main47742-32040iAT170,CT17#,ET176,ST170198812-199211

main47744-16011iAT170,CT17#,ET176,ST170198712-198804

sub47744-32010

main47744-32010iAT170,CT17#,ET176,ST170198804-198812

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-32020iAT175,ST171198712-198901

main47745-32021iAT175,ST171198901-199202

main47745-32040iAT170,CT17#,ET176,ST170198812-199211

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-20230iAT175198808-199202

main47750-20280iAT170,CT17#,ET176,ST170198712-199007

main47750-20300iST171198712-199202

main47750-20450iAT170,CT17#,ET176,ST170199007-199211

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030iAT170,CT17#,ET176,ST170199007-199211

main47769-32010iAT170,CT17#,ET176,ST170198712-199007

main47769-40010iAT175,ST171198712-199202

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-32010iAT17#,CT17#,ET176,ST17#198712-199211

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-16010iAT170,CT17#,ET176,ST170199007-199211

main47779-32010iAT170,CT17#,ET176,ST170198712-199007

main47779-40010iAT175,ST171198712-199202

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134iAT170,CT17#,ET176,ST17#198712-199211

main90119-06227iAT175198809-198911

24 parts on this diagram · 2 diagrams in section
