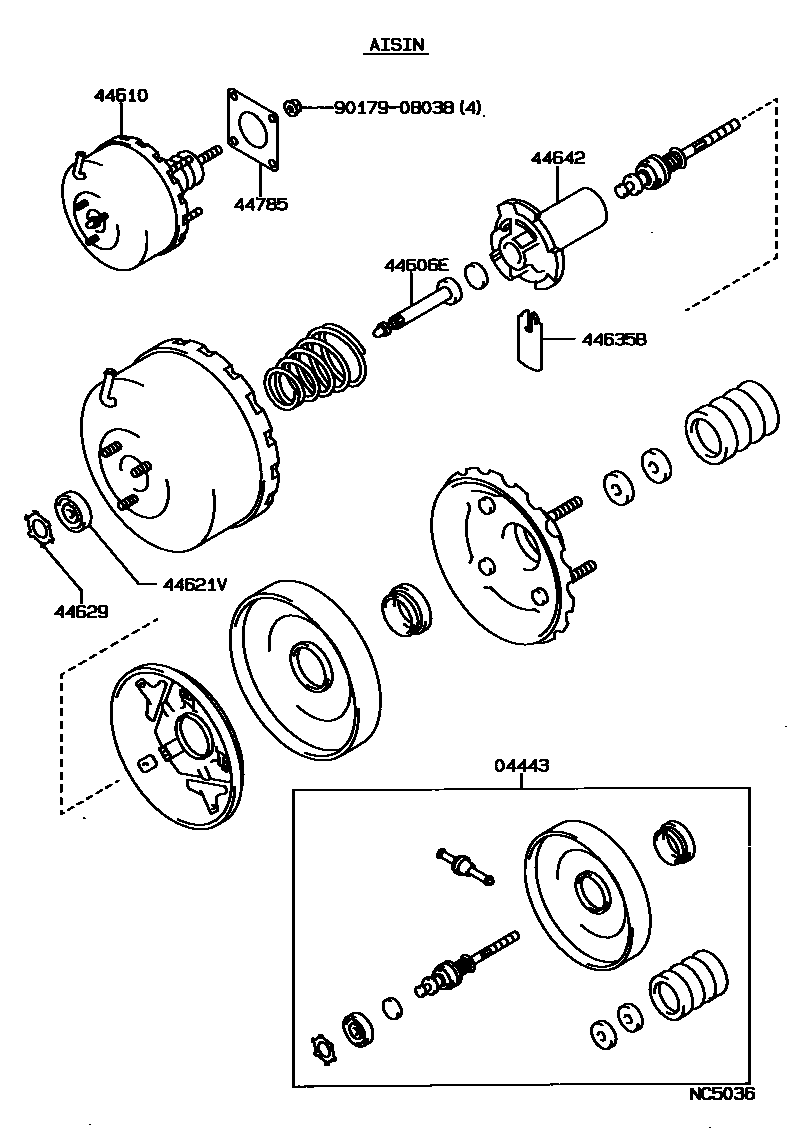

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1��(ESC) 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

04443BOOSTER KIT, BRAKE

main04443-20660iAT170,ET176,ST170¥11,600198712-198911

main04443-20670iCT17#..DX,EXS,GX¥11,600198712-198911

main04443-20680iAT170,ET176,ST170¥10,500198712-198911

main04443-20690iCT17#..DX,EXS,GX¥10,500198712-198911

main04443-20700iST171¥10,500198712-198911

main04443-20780iST171¥11,600198712-198911

main04443-20820iST171¥11,600198712-198911

main04443-20830iAT175¥13,400198808-198911

main04443-20840iAT170,ST170..EXS,X¥13,400198808-198911

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-12520iAT170,CT17#,ET176,ST17#¥2,660198712-198911

main44606-20800iAT170,ST170..EXS,X¥1,260198712-198911

44610BOOSTER ASSY, BRAKE

main44610-2B140iAT170,CT17#,ET176,ST170¥42,400198712-198911

main44610-2B280iST171..GT,GTR¥62,800198712-199202

main44610-2B360iAT170,ET176,ST171¥45,700198712-199211

main44610-2B370iAT175¥63,000198808-199202

main44610-2B390iAT170,ST170..EXS,GX,SELS,X,Z¥45,700198808-199202

main44610-2B400iST170¥45,100198911-199202

main44610-2B820iCT17#¥41,800198911-199211

44621VSEAL, BOOSTER BODY

main44621-14030iAT175¥400198712-198911

main44621-28120iAT170,CT17#,ET176,ST17#¥590198712-198911

44629RING, CIRCULAR INTERNAL

main44628-28120iAT170,CT17#,ET176,ST17#¥390198712-198911

main44628-60010iST171¥440198712-198911

44635BKEY, VALVE STOPPER

main44635-12630iAT170,CT17#,ET176,ST17#¥410198712-198911

main44635-20800iST171¥230198712-198911

44642PISTON, BRAKE BOOSTER

main44642-20800iAT175¥2,740198712-198911

main44642-2B210iST171¥5,500198712-198911

main44642-32030iAT170,CT17#,ET176,ST170¥5,900198712-198911

44785GASKET, BRAKE BOOSTER

main44785-32010iAT17#,CT17#,ET176,ST17#¥220198712-199211

9017908038

main90179-08038¥130

9 parts on this diagram · 11 diagrams in section
